Terminals and Connectors

Connections to the BE1-11g are dependent on the application and logic scheme selected by the user. As
a result, some BE1-11g inputs and outputs may not be used for a given application. Before energizing a
BE1-11g, make sure the connections match the options associated with the model and style number
found on the BE1-11g nameplate. Refer to the style chart in the
Be sure to use the correct input power for the specified power supply. Incorrect wiring may result in
damage to the BE1-11g.
Connections to the BE1-11g voltage inputs, contact inputs, power
supply inputs, and contact outputs should be made with a minimum
wire size of 14 AWG (2.08 mm
Connections to the BE1-11g current inputs and ground terminal should
be made with a minimum wire size of 12 AWG (3.31 mm
When the BE1-11g is configured in a system with other protective
devices, a separate ground bus lead is recommended for each BE1-
11g.
BE1-11g protection systems are supplied in either an S1 size case (J option) or an H1 size case (H or P
option).

J Type Case

Figure 199 shows the rear-panel connections with an RJ45 Ethernet connector. Figure 200 shows the
rear-panel connections with a fiber optic Ethernet connector.
BE1-11
IN1
B1 B2
IRIG
A1 A2
IN5
E1 E2
OUT 1
C1 C2

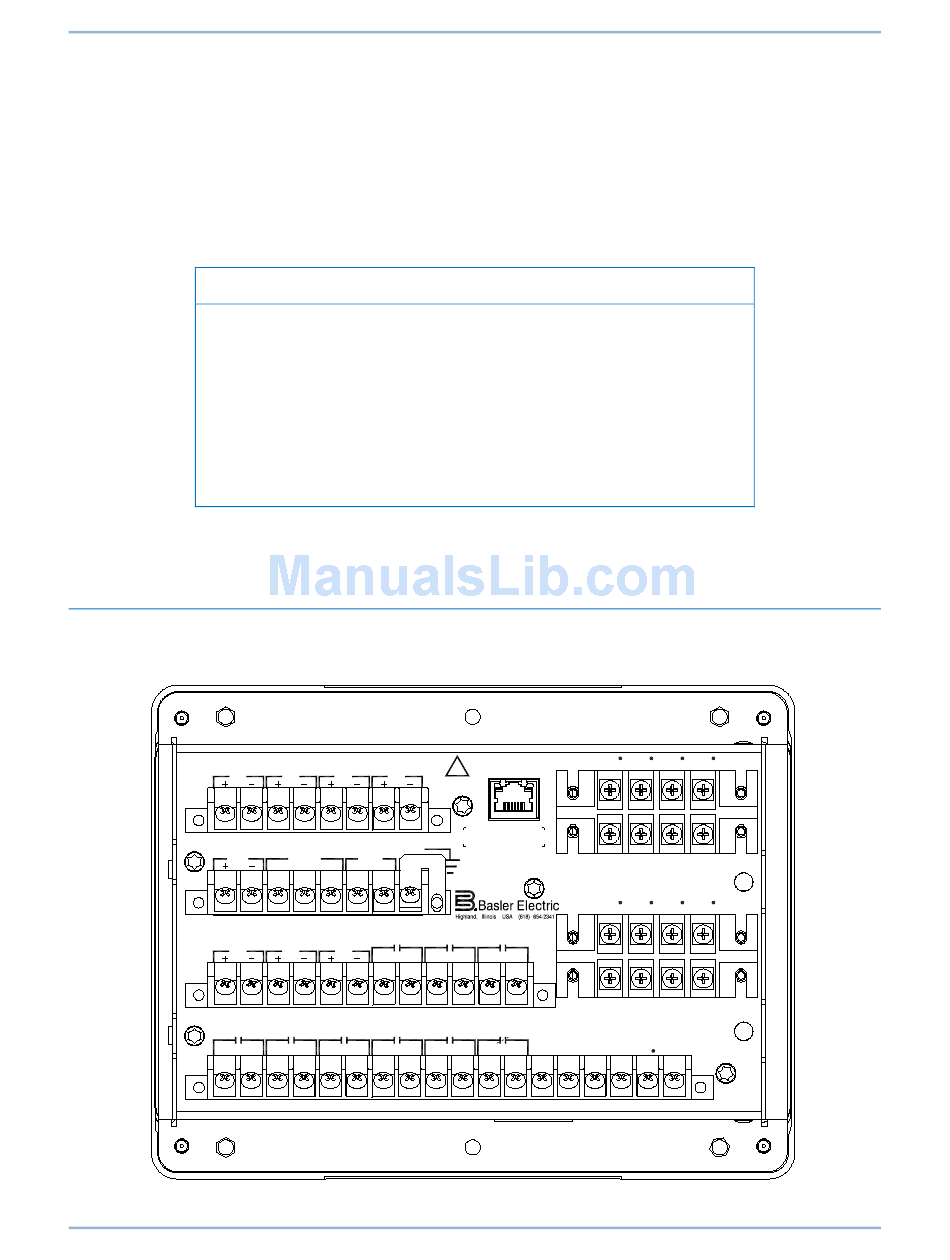

Figure 199. Rear-Panel Connections with RJ45 Ethernet (J Type Case)
BE1-11g
Note
2
).
IN2 IN3 IN4
WARNING
B3 B4 B5 B6 B7 B8
GND
RS-485 PWR
A B C
A3 A4 A5 A6 A7 A8
IN6 IN7
OUT 8 OUT 7
E3 E4 E5 E6 E7 E8 E9
OUT 2 OUT 3 OUT 4 OUT 5
C3 C4 C5 C6 C7 C8 C9
