Install a Storage Backplane

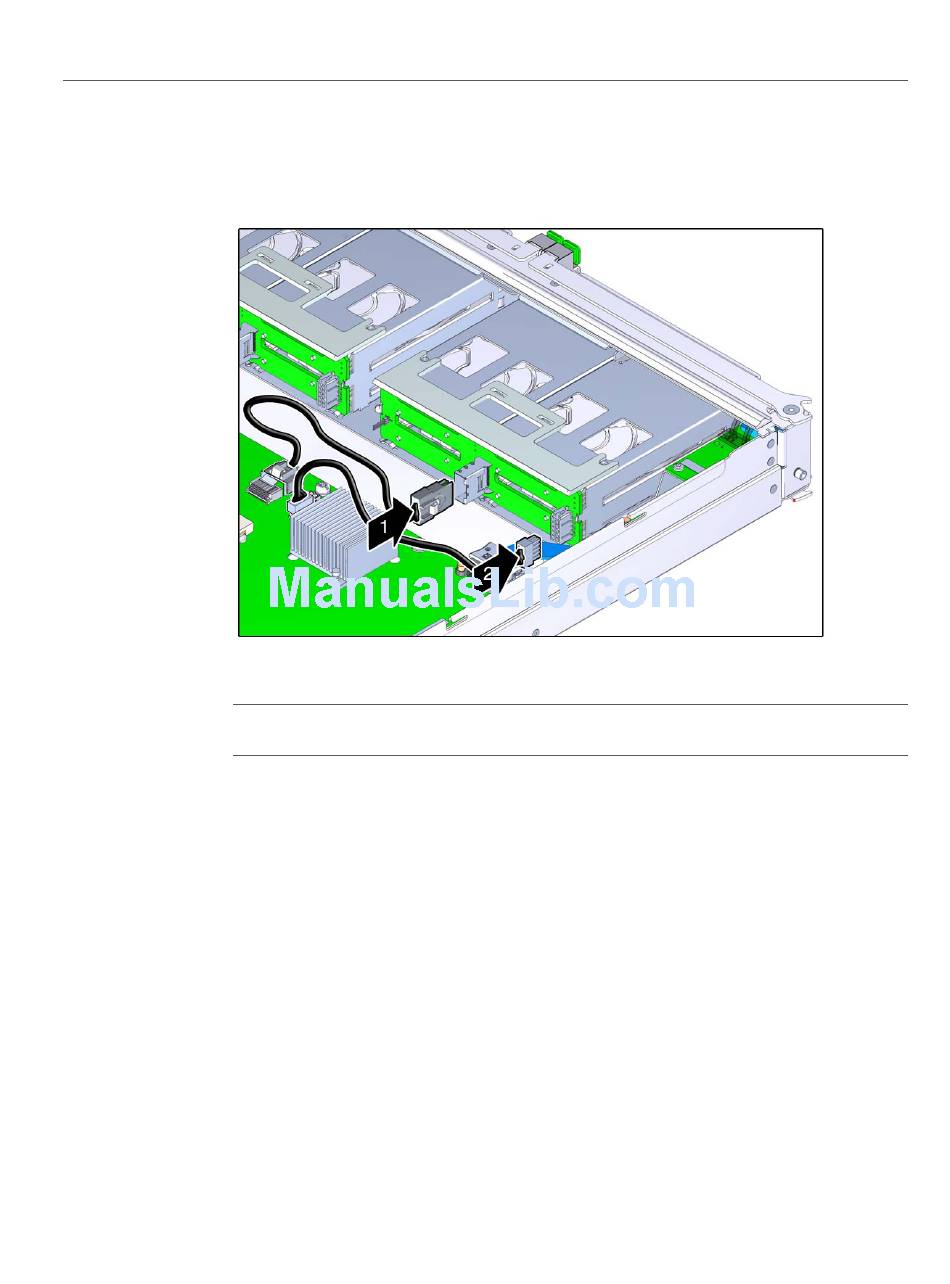

b. Connect the power cable to the storage backplane and the motherboard.
1
2
Insert the main module back into the server.
7.
See "Install the Main Module" on page
Install the hard drives that you removed back into the main module.
8.
Refer to the notes that you took when removing the hard drives to install them back into their
original slots. See
Power on the server.
9.
See "Returning the Server to Operation" on page
Related Information
"Remove a Storage Backplane" on page 107
■
114 SPARC T5-4 Server Service Manual • July 2016
Data cable, storage backplane connection
Power cable, storage backplane connection
"Install a Hard Drive" on page
102.
93.
191.
