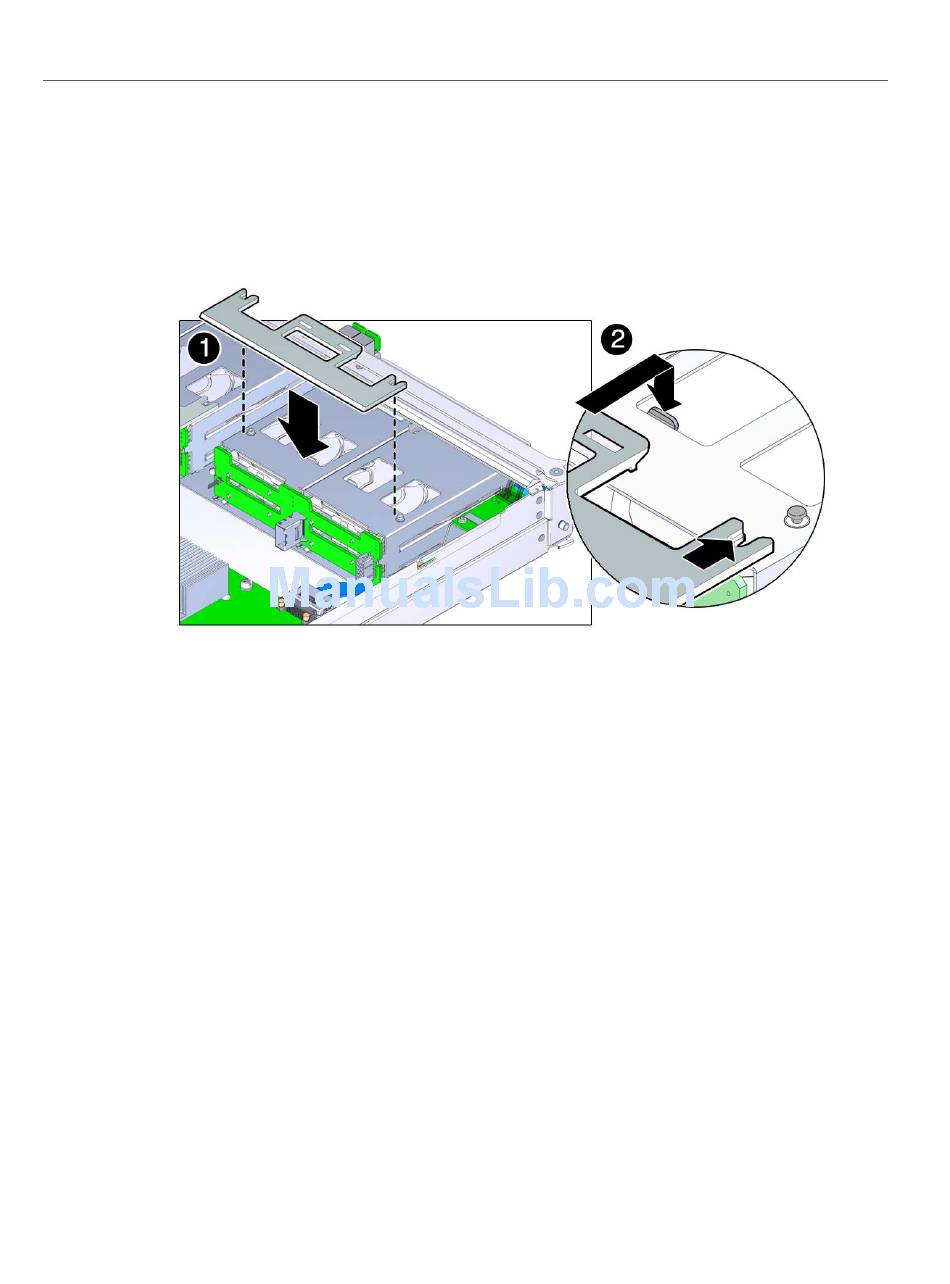

Slide the plastic retaining panel into place over the storage backplane so that the
two notches in the panel slide underneath the two metal mounting studs on the
hard drive assembly.
Press on the press point on the retaining panel to secure it to the top of the hard
5.
drive assembly.
6.
Connect the two storage backplane cables to the storage backplane and the
motherboard.
Connect the data cable to the storage backplane and the motherboard.
a.
Install a Storage Backplane
Servicing the Storage Backplanes
113
