Install the Service Processor Card

Related Information
"Determine if the Service Processor Card Is Faulty" on page 115
■
"Install the Service Processor Card" on page 118
■
Install the Service Processor Card
Caution -
discharge. This discharge can cause failure of server components.
Take the necessary ESD precautions.
1.
See "Prevent ESD Damage" on page
2.

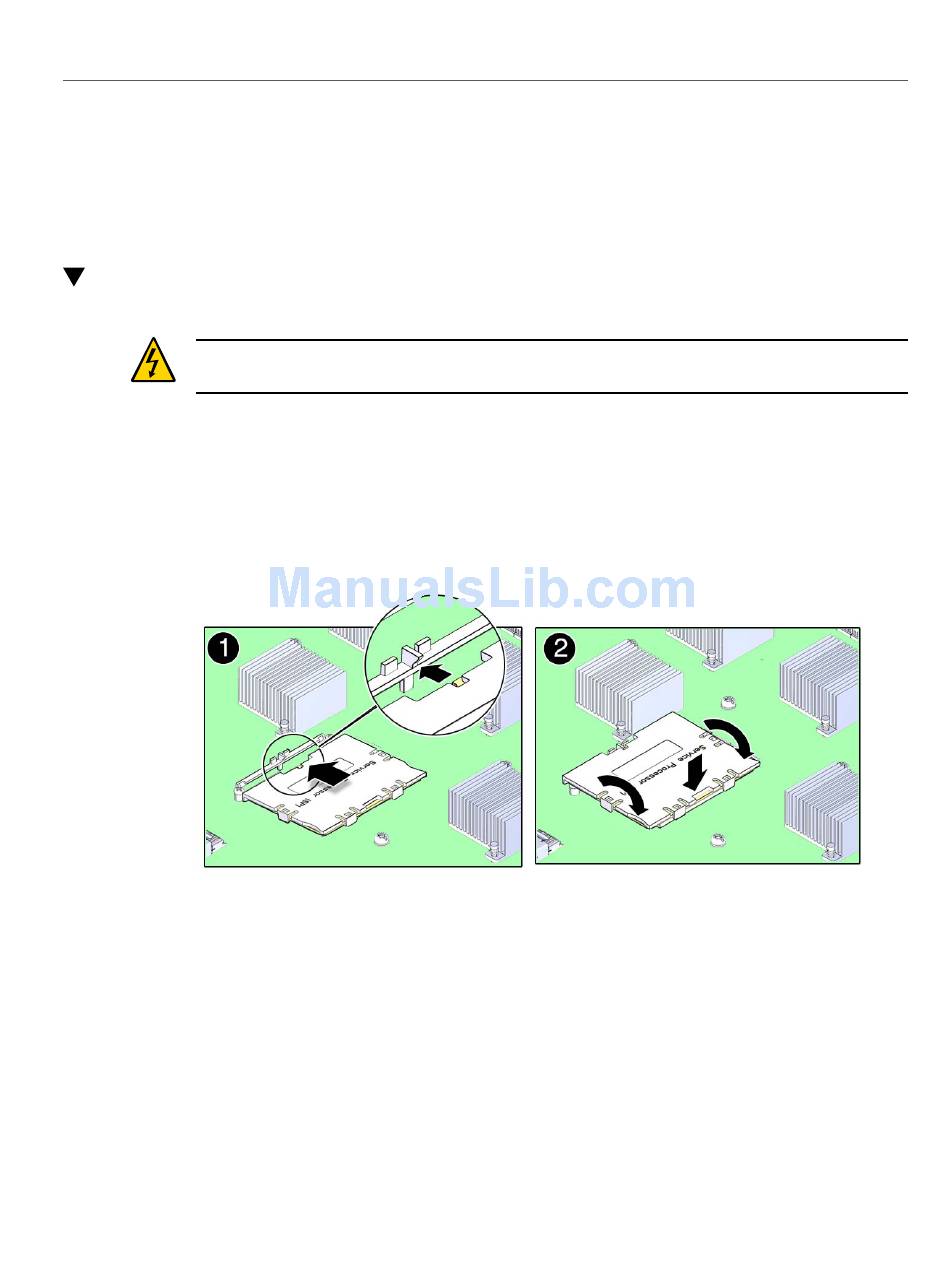

Lower the side of the service processor card with the Align Tab sticker down on
the service processor tab on the motherboard.
Lower the other side of the service processor card down and press down on the
3.
service processor card to seat it into the connectors on the motherboard.
Install the main module back into the server.
4.
See "Install the Main Module" on page
5. Connect a terminal or a terminal emulator (PC or workstation) to the SER MGT
port.
If the replacement service processor card detects that the SP firmware is not compatible with
the existing host firmware, further action is suspended and the following message is delivered
over the SER MGT port.
