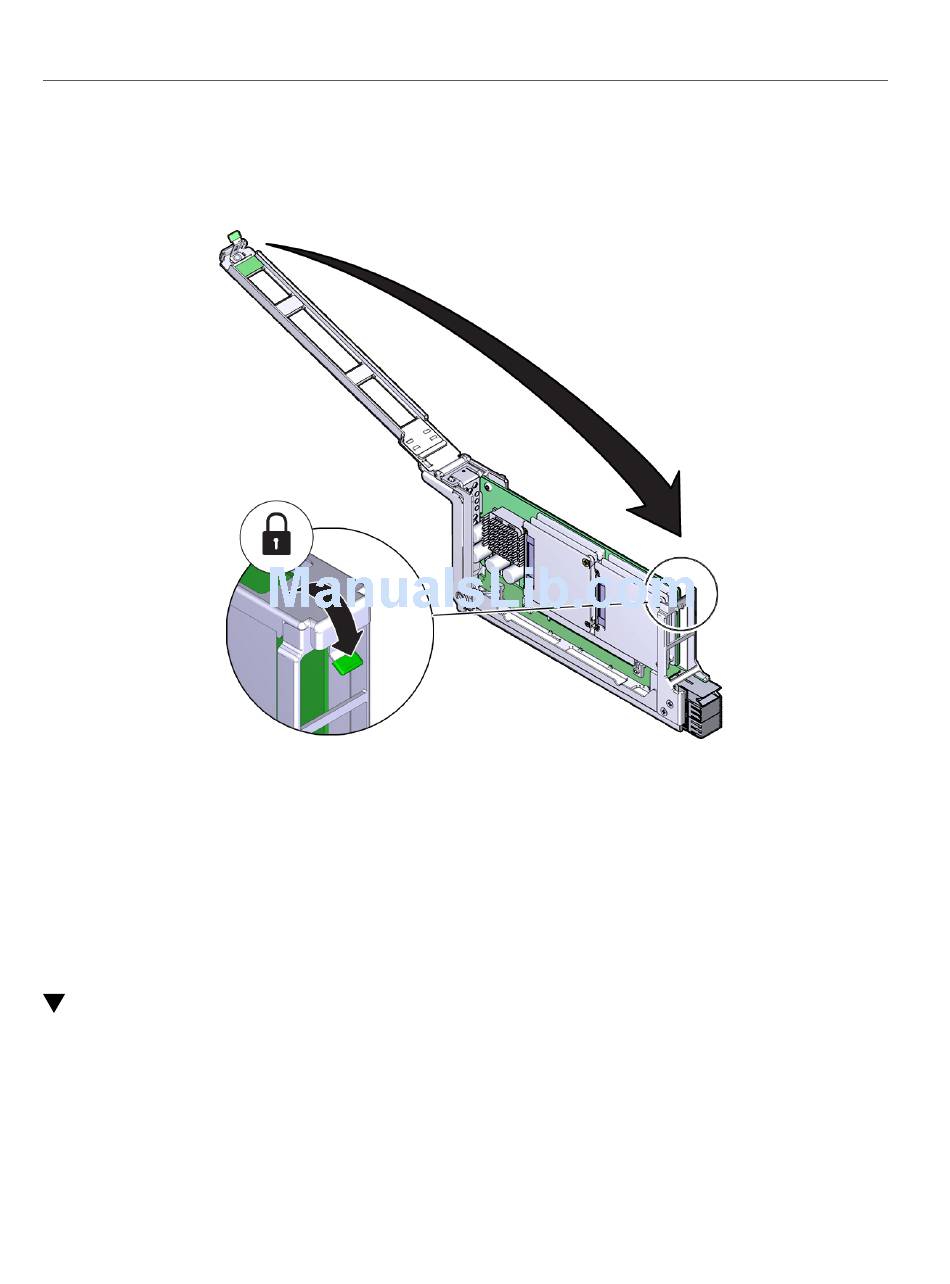

4. Close and latch the PCIe card carrier's top cover.
Related Information
"Determine Which PCIe Card Is Faulty" on page 157
■
"Remove a PCIe Card" on page 161
■
"Install a PCIe Carrier Extension" on page 167
■
"Install a PCIe Card Carrier" on page 168
■
"Verify the PCIe Card" on page 170
■

Remove a PCIe Carrier Extension

Normally, it is not necessary to remove a carrier extension when you are replacing the PCIe
card. However, if you are reconfiguring the server to remove a double-wide carrier, use the
steps in this procedure.
1. Remove the PCIe carrier and carrier extension from the server.
Remove a PCIe Carrier Extension
Servicing PCIe Cards 165
