Install the Front I/O Assembly
See "Prevent ESD Damage" on page
Insert the front I/O assembly into position in the main module.
2.

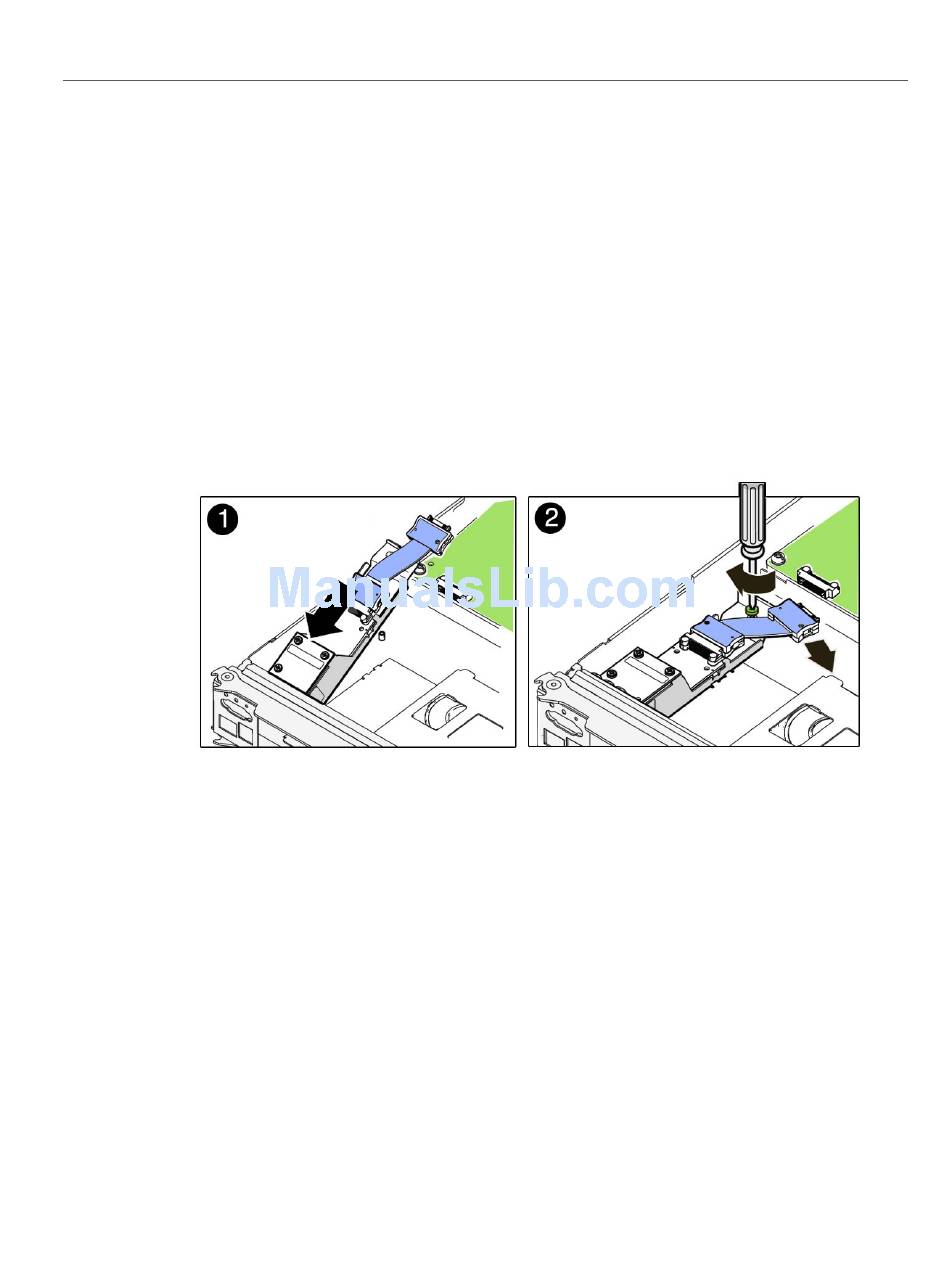

a. Gently slide the front I/O assembly into position with the ports inserted into
the port holes in the front of the main module (panel 1).
b. Lower the rear of the front I/O assembly so that the captive screw is aligned
with the screw hole on the motherboard and tighten the screw (panel 2).
c. Connect the assembly's ribbon cable to the connector on the motherboard
(panel 3).
Related Information
"Front I/O Assembly Reference" on page 131
■
"Remove the Front I/O Assembly" on page 131
■
