Remove a PCIe Carrier Extension
The PCIe carrier and extension are removed as a single unit. See
Carrier" on page

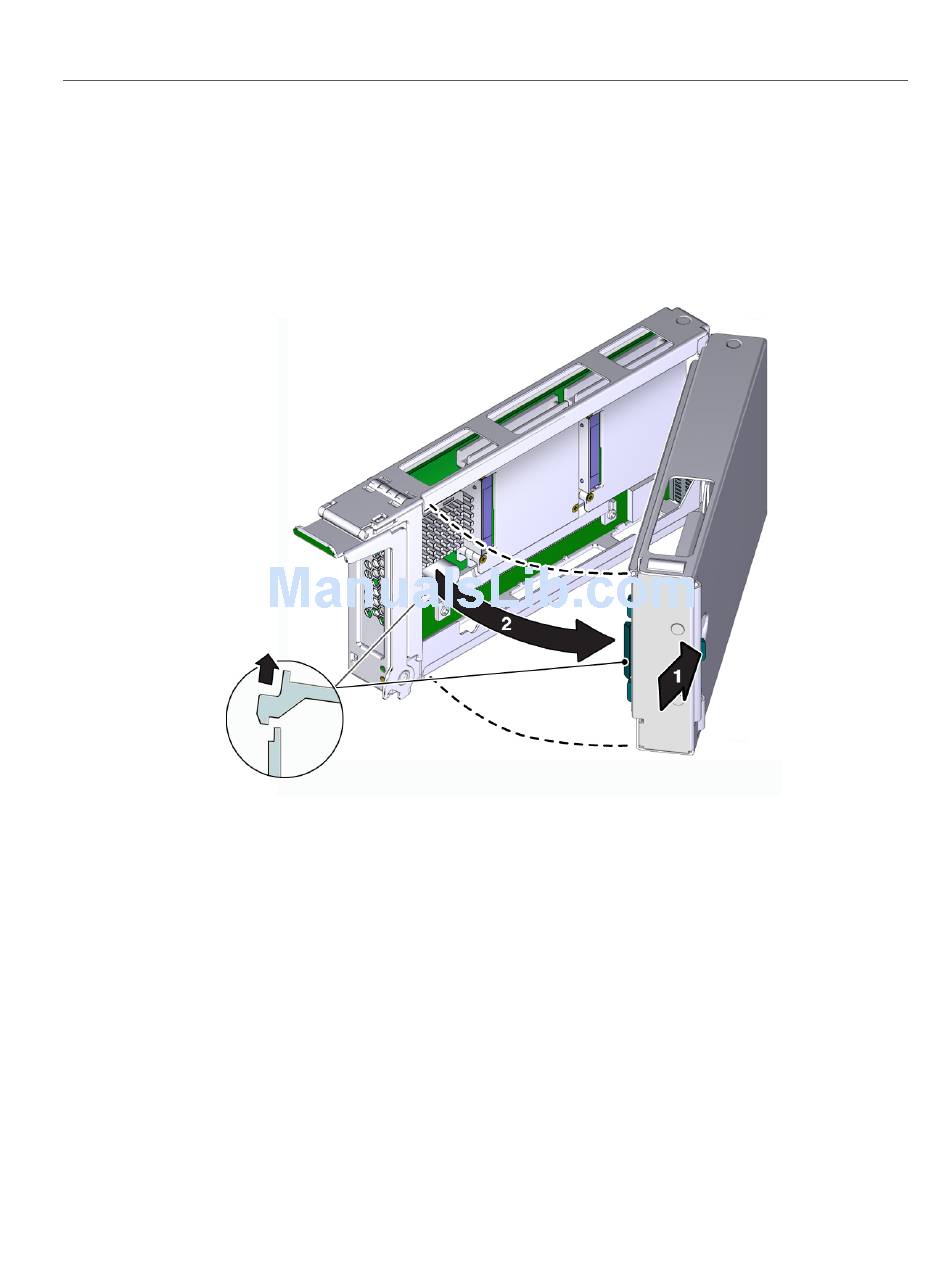

2. Unlock the carrier extension at the front panel.
3. Hold the latch open, and swing the carrier extension away from the main carrier.
4. Remove the PCIe card from the main carrier.
See "Remove a PCIe Card" on page
5. Determine your next step:
If you are installing a new PCIe card, see
■
■ If you are not installing a PCIe card, proceed to
6. Set the carrier extension aside, and install two PCIe card carriers in the slots that
were occupied by the PCIe card carrier and the carrier extension.
166 SPARC T5-4 Server Service Manual • July 2016
158.
161.
"Remove a PCIe Card
"Install a PCIe Card" on page
Step 6.
163.
