Feature Connector

The conga-IA3 provides an internal 50 pol. 2mm pin header as feature connector. The pinout is described below:
Feature Connector X34 Pinout Description
Pin Signal
1 +V5S
3 LAD0
5 LAD2
7 LFRAME#
9 LPC_CLK (25MHz)
11 SMB_DATA
13 SMB_ALERT#
15 TX_CGBC
17 GPO0
19 GPO2
21 GPO4
23 GPO6
25 GPI0
27 GPI2
29 GPI4
31 GPI6
33 PM_SLP_S3#
35 PM_SLP_S4#
37 SLP_BTN#
39 WDOUT
41 I2C_DAT
43 SPI_CS#
45 SPI_SO
47 SPI_CLK
49 +V5A
Connector Type
X34: 2mm, 2 x 25 Pos Header.
Copyright © 2015 congatec AG
Pin Signal
2 GND
4 LAD1
6 LAD3
8 SERIRQ#
10 BUF_PLT_RST#
12 SMB_CLK
14 GND
16 RX_CGBC
18 GPO1
20 GPO3
22 GPO5
24 GPO7
26 GPI1
28 GPI3
30 GPI5
32 GPI7
34 PM_SLP_S5#
36 LID_BTN#
38 PM_THRM#
40 WDTRIG
42 PWR_OK
44 I2C_CLK
46 BIOS_DISABLE#
48 SPI_SI
50 GND

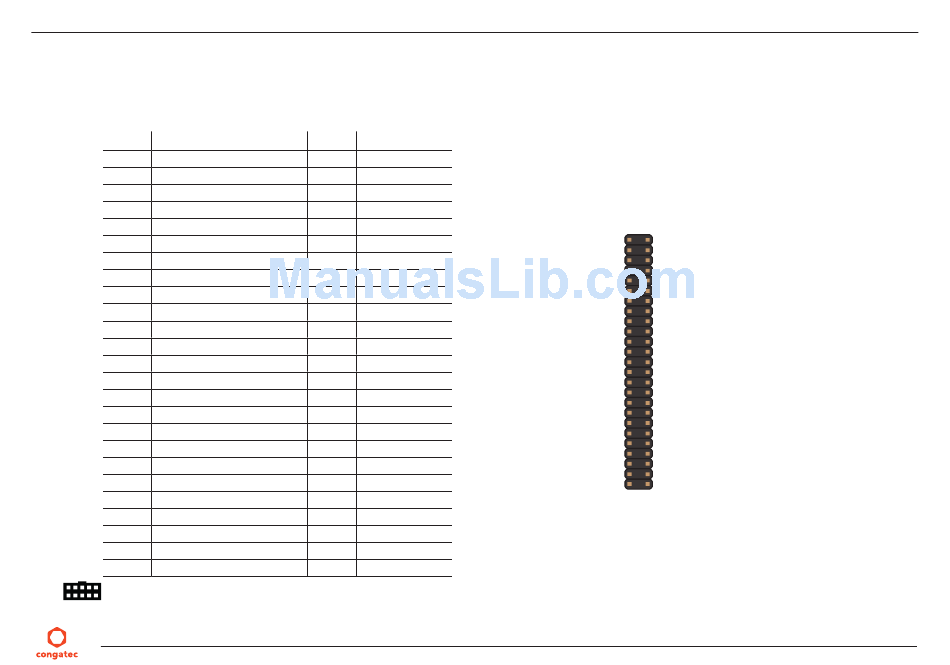

Feature Connector X34
