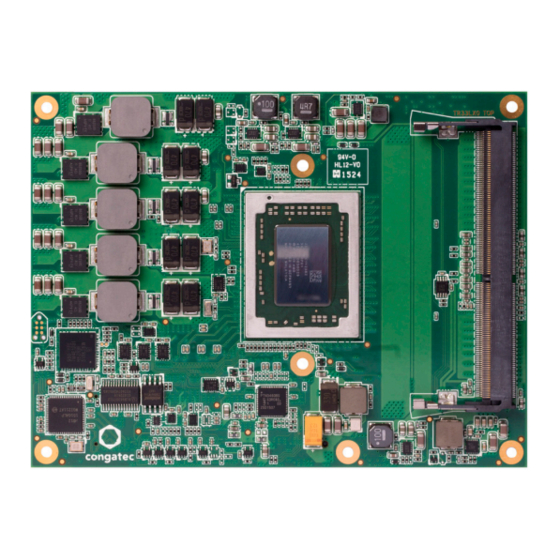

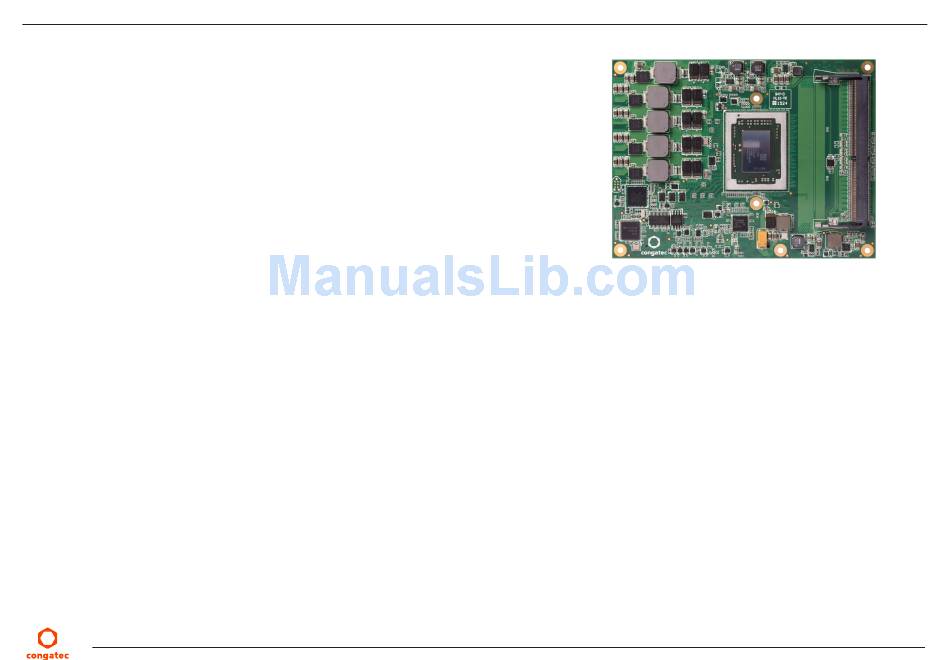

- Page 1 COM Express™ conga-TR3 3rd Generation AMD Embedded R-Series SoC User’s Guide Revision 1.0 Copyright © 2016 congatec AG TR33m10 1/105...
-
Page 2: Revision History
Updated form factors in section 1 “Introduction” • Updated section 2.5 “Power Consumption”, 2.7 “Environmental Specifications” and 4 “Cooling Solutions” • Added section 10 “System Resources”, 11 “BIOS Setup Description” and 12 “Additional BIOS Features” • Final release Copyright © 2016 congatec AG TR33m10 2/105... -
Page 3: Intended Audience
In no event shall congatec AG be liable for any incidental, consequential, special, or exemplary damages, whether based on tort, contract or otherwise, arising out of or in connection with this user’s guide or any other information... -
Page 4: Copyright Notice
Copyright © 2016, congatec AG. All rights reserved. All text, pictures and graphics are protected by copyrights. No copying is permitted without written permission from congatec AG. congatec AG has made every attempt to ensure that the information in this document is accurate yet the information contained within is supplied “as-is”. - Page 5 (c) arising from course of performance, course of dealing, or usage of trade. congatec AG shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause.
-
Page 6: Technical Support
Technical Support congatec AG technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you first visit our website at www.congatec.com for the latest documentation, utilities and drivers, which have been made available to assist you. -
Page 7: Table Of Contents
Supply Voltage Battery Power ..........17 2.6.1 CMOS Battery Power Consumption ........17 Additional Features ..............34 Environmental Specifications ........... 18 congatec Board Controller (cBC) ..........34 Block Diagram ................19 7.1.1 Board Information ..............34 7.1.2 Fan Control ................34 Cooling Solutions .............. - Page 8 Supported Flash Devices ............104 11.3.6 Trusted Platform Module 1.2 Submenu ........80 12.2 Updating the BIOS ..............104 11.3.7 Trusted Platform Module 2.0 Submenu ........81 Industry Specifications ............105 11.3.8 RTC Wake Submenu ..............81 Copyright © 2016 congatec AG TR33m10 8/105...
- Page 9 Table 33 DisplayPort (DP) Signal Descriptions ........61 Table 34 Module Type Definition Signal Description ......62 Table 35 Power and GND Signal Descriptions ........63 Table 36 Connector C-D Pinout ............. 64 Copyright © 2016 congatec AG TR33m10 9/105...
-
Page 10: Introduction
Simply unplug one module and replace it with another, no redesign is necessary. Copyright © 2016 congatec AG TR33m10... -
Page 11: Table 2 Conga-Tr3 Options
Up to 4 ports Up to 4 ports Dual-mode DP 1.2 Dual-mode DP 1.2 Dual-mode DP 1.2 LVDS/eDP LVDS LVDS LVDS SoC TDP/cTDP 15 / 12-35 W 15 / 12-35 W 15 / 12-15 W Copyright © 2016 congatec AG TR33m10 11/105... -
Page 12: Specifications
4 USB 3.0/2.0 SM Bus 2 UART 2 ExpressCard BIOS AMI Aptio UEFI 5.x firmware; 8 MByte serial SPI with congatec Embedded BIOS features ® Security Optional TPM 1.2/2.0 Power ACPI 5.0 compliant with battery support. Also supports Suspend to RAM (S3). -
Page 13: Supported Operating Systems
® ® • Linux Note To improve the graphic performance of conga-TR3 after installing Microsoft Windows Operating System, congatec AG recommends the ® ® installation of AMD catalyst driver. Mechanical Dimensions • 95.0 mm x 125.0 mm (3.74” x 4.92”) •... -
Page 14: Supply Voltage Standard Power
The input voltages shall rise from 10% of nominal to 90% of nominal at a minimum slope of 250V/s. The smooth turn-on requires that during the 10% to 90% portion of the rise time, the slope of the turn-on waveform must be positive. Copyright © 2016 congatec AG TR33m10... -
Page 15: Power Consumption
“S0: Maximum value”. This value should be taken into consideration when designing the system’s power supply to ensure that the power supply is sufficient during worst case scenarios COM is powered by VCC_5V_SBY. COM is powered by VCC_5V_SBY. Copyright © 2016 congatec AG TR33m10 15/105... -
Page 16: Conga-Tr3 Amd Embedded Rx-421Bd 2.1/3.4 Ghz Quad Core 2Mb L2 Cache
Windows 7 (64 bit) Power State S0: Min S0: Max S0: Peak Power consumption 0.25 A /3 W 4.33 A /52.01 W 7.76 A /93.06 W 0.08 A /0.41 W 0.07 A /0.35 W Copyright © 2016 congatec AG TR33m10 16/105... -
Page 17: Conga-Tr3 Amd Embedded Rx-216Gd 1.6/3.0 Ghz Dual Core 1Mb L2 Cache
The self-discharge of the battery must also be considered when determining CMOS battery lifetime. For more information about calculating CMOS battery lifetime refer to application note AN9_RTC_Battery_Lifetime.pdf, which can be found on the congatec AG website at www.congatec.com. -
Page 18: Environmental Specifications
Storage: 5% to 95% Caution The above operating temperatures must be strictly adhered to at all times. When using a congatec heatspreader, the maximum operating temperature refers to any measurable spot on the heatspreader’s surface. Humidity specifications are for non-condensing conditions. -
Page 19: Block Diagram
Platform Security HDA I/F TRNG Optional LPC Bus GPIOs GPIOs / SDIO Serial Port 1-0 congatec SM Bus Board I2C Bus Controller FAN control Note: Not supported by default. Only available as assembly option. Copyright © 2016 congatec AG TR33m10 19/105... -
Page 20: Cooling Solutions
Cooling Solutions congatec AG offers three cooling solutions for the conga-TR3: • Active cooling solution (CSA) • Passive cooling solution (CSP) • Heatspreader The dimensions of the cooling solutions are shown below and all measurements are in millimeters. The maximum torque specification for heatspreader screws is 0.3 Nm. -
Page 21: Csp Dimensions
CSP Dimensions Copyright © 2016 congatec AG TR33m10 21/105... -
Page 22: Heatspreader Dimensions
The gap pad material used on all heatspreaders contains silicon oil that can seep out over time depending on the environmental conditions it is subjected to. For more information about this subject, contact your local congatec sales representative and request the gap pad material manufacturer’s specification. - Page 23 Caution congatec cooling solutions are designed for commercial temperature range only (0° to 60°C). Therefore, do not use the cooling solutions in temperatures above 60°C or below 0°C. If an end user’s system operates above 60°C or below 0°C, then the end user must use or design an optimized thermal solution that meets the needs of their application.
-
Page 24: Onboard Temperature Sensor
Onboard the conga-TR3 is a sensor that measures the temperature of the board. The board sensor is located at the top of the conga-TR3 and is defined in CGOS API as CGOS_TEMP_BOARD. The sensor positions are designated as U2 and T1 as shown below: 51.21 103.53 All dimensions in mm Copyright © 2016 congatec AG TR33m10 24/105... -
Page 25: Connector Subsystems Rows A, B, C, D
Power Control The conga-TR3 offers an optional DDI interface on the Power Management CD connector (assembly option). GPIOs/SDIO The modified conga-TR3 variant with optional DDI interface does not support LVDS. Fan Control top view Copyright © 2016 congatec AG TR33m10 25/105... -
Page 26: Primary Connector Rows A And B
The conga-TR3 supports up to three external HDA codecs. AC’97 audio codecs are not supported on the conga-TR3. Note COM Express modules only support up to three data inputs (AC_SDIN[0:2]) as described in COM Express Specification 2.0. Copyright © 2016 congatec AG TR33m10 26/105... -
Page 27: Gigabit Ethernet
6.1.6 I²C Bus Fast Mode The I²C bus is implemented through the congatec board controller and is accessed through the congatec CGOS driver and API. The controller provides a fast mode multi-master I²C bus that has maximum I²C bandwidth. Copyright © 2016 congatec AG... -
Page 28: Pci Express
1920x1200 in dual LVDS mode. Note The conga-TR3 can support eDP interface instead of the default LVDS interface by assembly option. The customized variant will be available upon request but may require additional cost. Copyright © 2016 congatec AG TR33m10 28/105... -
Page 29: General Purpose Input/Output
The conga-TR3 offers two UART interfaces via the congatec Board Controller. The UART controllers integrated in the cBC support up to 1MBit/s and can operate in low-speed, full-speed and high-speed modes. The UART interfaces are routed to the AB connector and require congatec driver to function. - Page 30 • Connect PWR_OK to the “power good” signal of an ATX type power supply. • Connect PWR_OK to the last voltage regulator in the chain on the carrier board. • Simply pull PWR_OK with a 1k resistor to the carrier board 3.3V power rail. Copyright © 2016 congatec AG TR33m10 30/105...
-
Page 31: Power Management
25 figure 7 of the document “ATX12V Power Supply Design Guide V2.2”. 6.1.14 Power Management ACPI 5.0 compliant with battery support. Also supports Suspend to RAM (S3). Copyright © 2016 congatec AG TR33m10 31/105... -
Page 32: Secondary Connector Rows C And D
HDMI/DVI LVDS 4096x2160 @ 24Hz 4096x2160 @ 24Hz 1920x1200 @ 60Hz 1920x1200 @ 60Hz 1920x1200 @ 60Hz Note The maximum HDMI resolution of 4096x2160 at 60 Hz is possible but requires a re-timer. Copyright © 2016 congatec AG TR33m10 32/105... -
Page 33: Displayport (Dp)
The xHCI controller provided by the SoC’s controller hub controls these ports and allows data transfers of up to 5 Gb/s with SuperSpeed, high- speed, full-speed and low-speed traffic support. For more information about how the USB host controllers are routed, see section 8.5. Copyright © 2016 congatec AG TR33m10... -
Page 34: Additional Features
A four wire fan must be used to generate the correct speed readout. The congatec COM Express Type 6 and Type 10 modules use a Push-Pull output for the fan_pwm signal instead of the open drain output specified in the COM Express specification. Although this does not comply with the COM Express specification 2.0, the benefits are obvious. -
Page 35: Watchdog
OEM BIOS Customization The conga-TR3 is equipped with congatec Embedded BIOS, which is based on American Megatrends Inc. Aptio UEFI firmware. The congatec Embedded BIOS allows system designers to modify the BIOS. For more information about customizing the congatec Embedded BIOS, refer to the congatec System Utility user’s guide CGUTLm1x.pdf on the congatec website at www.congatec.com or contact technical support. -
Page 36: Oem Post Logo
OEM POST Logo This feature allows system designers to replace the congatec POST logo displayed in the upper left corner of the screen during BIOS POST with their own BIOS POST logo. Use the congatec system utility CGUTIL 1.5.4 or later to replace/add the OEM POST logo. -
Page 37: Api Support (Cgos)
The architecture of the CGOS API driver provides the ability to write application software that runs unmodified on all congatec CPU modules. All the hardware related code is contained within the congatec embedded BIOS on the module. See section 1.1 of the CGOS API software developers guide, which is available on the congatec website . -
Page 38: Conga Tech Notes
• AMD64 technology instruction-set extensions • 64-bit integer registers, 48-bit virtual addresses, and 40-bit physical addresses • Sixteen 64-bit integer registers • Sixteen 128-bit SSE/SSE2/SSE3/SSE4a registers For more information about AMD64 Technology, visit http://www.amd.com. Copyright © 2016 congatec AG TR33m10 38/105... -
Page 39: Power Management
For more information about AMD64 Technology, visit http://www.amd.com. Note congatec does not offer virtual machine monitor (VMM) software. All VMM software support questions and queries should be directed to the VMM software vendor and not congatec technical support. Copyright © 2016 congatec AG... -
Page 40: Thermal Management
If passive cooling is activated and the processor temperature is above the trip point the processor clock is throttled. See section 12 of the ACPI Specification 2.0 C for more information about passive cooling. Copyright © 2016 congatec AG TR33m10... -
Page 41: Acpi Suspend Modes And Resume Events
In Device Manager look for the keyboard/mouse devices. Go to the Power Management tab and check ‘Allow this device to bring the computer out of standby’. RTC Alarm Activate and configure Resume On RTC Alarm in the Power setup menu. Only available in S5. Watchdog Power Button Event Wakes unconditionally from S3-S5. Copyright © 2016 congatec AG TR33m10 41/105... -
Page 42: Usb Host Controller
Port1 Port 1 Port2 Port 2 Port3 Port 3 USB 3.0 Port0 USB 3.0 Port1 USB 3.0 Port2 USB 3.0 Port3 COM Express Connector (conga-TFS supports 4 USB 2.0 and 4 USB 3.0) Copyright © 2016 congatec AG TR33m10 42/105... -
Page 43: Signal Descriptions And Pinout Tables
Signal Descriptions and Pinout Tables The following section describes the signals found on COM Express™ Type 6 connectors used for congatec AG modules. The pinout of the modules complies with COM Express Type 6 Rev. 2.1. Table 2 describes the terminology used in this section for the Signal Description tables. The PU/PD column indicates if a COM Express™... -
Page 44: A-B Connector Signal Descriptions
Gigabit Ethernet Controller 0 link indicator, active low. O 3.3VSB GBE0_LINK100# Gigabit Ethernet Controller 0 100Mbit/sec link indicator, active low. O 3.3VSB GBE0_LINK1000# Gigabit Ethernet Controller 0 1000Mbit/sec link indicator, active low. O 3.3VSB Copyright © 2016 congatec AG TR33m10 44/105... - Page 45 PHY and may be as low as 0V and as high as 3.3V. The reference voltage output shall be current limited on the module. In the case in which the reference is shorted to ground, the current shall be limited to 250mA or less. Copyright © 2016 congatec AG TR33m10 45/105...
-
Page 46: Table 15 Serial Ata Signal Descriptions
Serial ATA channel 3, Receive Input differential pair. I SATA Not supported. SATA3_RX- SATA3_TX+ Serial ATA channel 3, Transmit Output differential pair. O SATA Not supported. SATA3_TX- (S)ATA_ACT# ATA (parallel and serial) or SAS activity indicator, active low. O 3.3V Copyright © 2016 congatec AG TR33m10 46/105... -
Page 47: Table 16 Pci Express Signal Descriptions (General Purpose)
PCI Express device is designed in. Table 17 ExpressCard Support Pins Descriptions Signal Pin # Description PU/PD Comment EXCD0_CPPE# ExpressCard capable card request. I 3.3VSB PU 10k 3.3VSB EXCD1_CPPE# EXCD0_PERST# ExpressCard Reset O 3.3V EXCD1_PERST# Copyright © 2016 congatec AG TR33m10 47/105... -
Page 48: Table 18 Lpc Signal Descriptions
Do not pull this line high on the carrier board. this line shall be present on the module. An open drain 3.3VSB driver from a USB current monitor on the carrier board may drive this line low. Copyright © 2016 congatec AG TR33m10 48/105... -
Page 49: Table 20 Lvds Signal Descriptions
LVDS panel backlight brightness control O 3.3V LVDS_I2C_CK DDC lines used for flat panel detection and control. OD 3.3V PU 2.2K 3.3V LVDS_I2C_DAT DDC lines used for flat panel detection and control. I/OD 3.3V PU 2.2K 3.3V Copyright © 2016 congatec AG TR33m10 49/105... -
Page 50: Table 21 Spi Bios Flash Interface Signal Descriptions
Note The congatec COM Express Type 6 and Type 10 modules use a Push-Pull output for the fan_pwm signal instead of the open drain output specified in the COM Express specification. Although this does not comply with the COM Express specification 2.0, the benefits are obvious. -
Page 51: Table 23 General Purpose I/O Signal Descriptions
PCI Express wake up signal. I 3.3VSB PU 10K 3.3VSB WAKE1# General purpose wake up signal. May be used to implement wake-up on PS/2 I 3.3VSB PU 10K 3.3VSB keyboard or mouse activity. Copyright © 2016 congatec AG TR33m10 51/105... -
Page 52: Table 25 Serial/Uart Interface Signal Descriptions
A51, A57, A60, A66, A70, All available GND connector pins shall be used and tied to Carrier Board GND plane. A80, A90, A100, A110, B1, B11, B21, B31, B41, B51, B60, B70, B80, B90, B100, B110 Copyright © 2016 congatec AG TR33m10 52/105... -
Page 53: A-B Connector Pinout
GPI3 VCC_5V_SBY GND (FIXED) GND (FIXED) RSVD VCC_5V_SBY AC/HDA_BITCLK SPKR eDP_HPD VCC_5V_SBY AC/HDA_SDOUT I2C_CK PCIE0_CK_REF+ BIOS_DIS1# BIOS_DIS0# I2C_DAT PCIE0_CK_REF- VGA_RED (*) THRMTRIP# (*) THRM# GND (FIXED) GND (FIXED) USB6- USB7- SPI_POWER VGA_GRN (*) Copyright © 2016 congatec AG TR33m10 53/105... - Page 54 B108 VCC_12V GPI0 GPO1 A109 VCC_12V B109 VCC_12V PCIE_TX4+ (*) PCIE_RX4+ (*) A110 GND (FIXED) B110 GND (FIXED) Note The signals marked with an asterisk symbol (*) are not supported on the conga-TR3. Copyright © 2016 congatec AG TR33m10 54/105...
-
Page 55: C-D Connector Signal Descriptions
Additional transmit signal differential pairs for the Superspeed USB data path O USB_SSTX2- USB_SSRX3+ Additional receive signal differential pairs for the Superspeed USB data path USB_SSRX3- USB_SSTX3+ Additional transmit signal differential pairs for the Superspeed USB data path O USB_SSTX3- Copyright © 2016 congatec AG TR33m10 55/105... -
Page 56: Table 30 Pci Express Signal Descriptions (X16 Graphics)
PEG_RX1+ PEG_RX1- PEG_RX2+ PEG_RX2- PEG_RX3+ PEG_RX3- PEG_RX4+ PEG_RX4- PEG_RX5+ PEG_RX5- PEG_RX6+ PEG_RX6- PEG_RX7+ PEG_RX7- PEG_RX8+ PEG_RX8- PEG_RX9+ PEG_RX9- PEG_RX10+ PEG_RX10- PEG_RX11+ PEG_RX11- PEG_RX12+ PEG_RX12- PEG_RX13+ PEG_RX13- PEG_RX14+ PEG_RX14- PEG_RX15+ C101 PEG_RX15- C102 Copyright © 2016 congatec AG TR33m10 56/105... - Page 57 PEG_TX15+ D101 PEG_TX15- D102 PEG_LANE_RV# PCI Express Graphics lane reversal input strap. Pull low on the carrier board to reverse lane Not supported. order. Note conga-TR3 supports only x8 PCI Express Graphics (PEG). Copyright © 2016 congatec AG TR33m10 57/105...
-
Page 58: Table 31 Ddi Signal Description
HDMI/DVI I2C CTRLCLK if DDI2_DDC_AUX_SEL is pulled high OD 3.3V DDI2_CTRLDATA_AUX- Multiplexed with DP2_AUX- and HDMI2_CTRLDATA. PU 100K DP AUX- function if DDI2_DDC_AUX_SEL is no connect. I/O PCIE 3.3V HDMI/DVI I2C CTRLDATA if DDI2_DDC_AUX_SEL is pulled high. I/OD 3.3V Copyright © 2016 congatec AG TR33m10 58/105... - Page 59 Customized variants with 3 DDI interfaces do not support LVDS/eDP port. Additionally, they can only support two independent HDMI/DVI displays. The DDI interfaces support dual-mode DisplayPort. To support HDMI/DVI, an external level shifter (PTN3360D) should be implemented on the user’s carrier board. Copyright © 2016 congatec AG TR33m10 59/105...
-
Page 60: Table 32 Hdmi/Dvi Signal Descriptions
PD 100K Not supported by default. Multiplexed with DDI3_HPD. HDMI3_CTRLCLK HDMI/DVI I C Control Clock OD 3.3V PD 100K 2.2k to 3.3V Pull-up should be implemented on the carrier board. Multiplexed with DDI3_CTRLCLK_AUX+ Copyright © 2016 congatec AG TR33m10 60/105... -
Page 61: Table 33 Displayport (Dp) Signal Descriptions
Uni-directional main link for the transport of isochronous streams and O PCIE DP2_LANE2- secondary data. Multiplexed with DDI2_PAIR2+ and DDI2_PAIR2- DP2_LANE1+ Uni-directional main link for the transport of isochronous streams and O PCIE DP2_LANE1- secondary data. Multiplexed with DDI2_PAIR1+ and DDI2_PAIR1- Copyright © 2016 congatec AG TR33m10 61/105... -
Page 62: Table 34 Module Type Definition Signal Description
EDID access. DP3_AUX- Half-duplex bi-directional AUX channel for services such as link I/O PCIE PU 100k configuration or maintenance and EDID access. 3.3V Table 34 Module Type Definition Signal Description Copyright © 2016 congatec AG TR33m10 62/105... -
Page 63: Table 35 Power And Gnd Signal Descriptions
C70,C73, C76, C80, C84, C87, C90, C93, C96, C100, C103, C110, D1, D2, D5, D8, D11, D14, D21, D31, D41, D51, D60, D67, D70, D73, D76, D80, D84, D87, D90, D93, D96, D100, D103, D110 Copyright © 2016 congatec AG TR33m10 63/105... -
Page 64: C-D Connector Pinout
GND (FIXED) PEG_RX10- (*) PEG_TX10- (*) DDI2_CTRLCLK_AUX+ DDI1_PAIR2+ DDI2_CTRLDATA_AUX- DDI1_PAIR2- PEG_RX11+ (*) PEG_TX11+ (*) DDI2_DDC_AUX_SEL DDI1_DDC_AUX_SEL PEG_RX11- (*) PEG_TX11- (*) RSVD RSVD GND (FIXED) GND (FIXED) DDI3_CTRLCLK_AUX+ (*) DDI1_PAIR3+ PEG_RX12+ (*) PEG_TX12+ (*) Copyright © 2016 congatec AG TR33m10 64/105... - Page 65 VCC_12V D108 VCC_12V TYPE0# PEG_LANE_RV# (*) C109 VCC_12V D109 VCC_12V PEG_RX1+ PEG_TX1+ C110 GND (FIXED) D110 GND (FIXED) Note The signals marked with an asterisk symbol (*) are not supported on the conga-TR3. Copyright © 2016 congatec AG TR33m10 65/105...
-
Page 66: System Resources
I/O address ranges to LPC Bus ParallelPort0 378h-37Fh ParallelPort1 778h-77Fh ParallelPort2 278h-27Fh ParallelPort3 678h-67Fh ParallelPort4 3BCh-3BFh ParallelPort5 7BCh-7BFh SerialPort0 3F8h-3FFh SerialPort1 2F8h-2FFh SerialPort2 220h-227h SerialPort3 228h-22Fh SerialPort4 238h-23Fh SerialPort5 2E8h-2EFh SerialPort6 338h-33Fh SerialPort7 3E8h-3EFh Copyright © 2016 congatec AG TR33m10 66/105... -
Page 67: Pci Configuration Space Map
The I/O range E38h to EBFh is always used by on module LPC devices. Otherwise the above listed ranges are available for customer use. If you require additional LPC Bus resources other than those mentioned above, or more information about this subject, contact congatec technical support for assistance. - Page 68 3. The above table represents a case when a single function PCI Express device is connected to all possible slots on the carrier board. The given bus numbers will change based on actual hardware configuration. Copyright © 2016 congatec AG TR33m10...
-
Page 69: Pci Interrupt Routing Map
Bridge 1 Port 0 Port 1 Port 2 Port 3 Bridge 0 Bridge 1 Bridge 2 Bridge 3 Bridge 4 Note Given numbers specify the APIC interrupt numbers assigned to the respective devices. Copyright © 2016 congatec AG TR33m10 69/105... -
Page 70: Sm Bus
10.4 There are no onboard resources connected to the I²C bus. Address 16h is reserved for congatec Battery Management solutions. 10.5 SM Bus System Management (SM) bus signals are connected to the AMD Chipset and the SM bus is not intended to be used by off-board non-system management devices.. -
Page 71: Bios Setup Description
POST allowing the operator to select either the boot device that should be used or an option to enter the BIOS setup program. 11.2 Setup Menu and Navigation The congatec BIOS setup screen is composed of the menu bar and two main frames. The menu bar is shown below: Main Advanced Chipset... -
Page 72: Main Setup Screen
Serial Number No option Displays the serial number of the board. BC Firmware Rev. No option Displays the revision of the congatec board controller. MAC Address No option Displays the MAC address of the onboard Ethernet controller. Boot Counter No option Displays the number of boot-ups. -
Page 73: Advanced Setup
Trusted Platform Module RTC Wake Settings Memory Chipset SATA ACPI Super IO Serial Port Console Redirection PCI Express CSM and Option ROMs Info Report NVMe SDIO Diagnostic Settings PC Speaker Intel(R) I211 Gigabit Network Connection Copyright © 2016 congatec AG TR33m10 73/105... -
Page 74: Graphics Submenu
If set to 'Yes' the BIOS will first look for an EDID data set in an external EEPROM to configure the Detect Local Flat Panel . Only if no external EDID data set can be found, the data set selected under 'Local Flat Panel Type' will be used as fallback data set. Copyright © 2016 congatec AG TR33m10 74/105... - Page 75 Auto detection is performed by reading an EDID data set via the video I²C bus. WVGA 800x480 1x24 (01Bh) The number in brackets specifies the congatec internal number of the respective panel data set. SVGA 800x600 1x18 (01Ah) Note: Customized EDID™ utilizes an OEM defined EDID™ data set stored in the BIOS flash device.
-
Page 76: Hardware Monitoring Submenu
High frequency: 1kHz-63kHz Fan PWM Frequency 31 Khz Select fan PWM base frequency. Default: 60% Default fan speed to be set after the OS takes fan control. Default Fan Speed 10 – 100% Copyright © 2016 congatec AG TR33m10 76/105... -
Page 77: Watchdog Submenu
If set to 'Single Event', every stage will be executed only once, then the watchdog will be disabled. If set to 'Repeated Event' the last stage will be executed repeatedly until a reset occurs. Copyright © 2016 congatec AG TR33m10... - Page 78 Note In ACPI mode it is not possible for a “Watchdog ACPI Event” handler to directly restart or shutdown the OS. For this reason the congatec BIOS will do one of the following: For Shutdown: An over temperature notification is executed.
-
Page 79: Module Serial Ports
9600 19200 38400 57600 115200 Serial Port 1 Disabled Enable or disable module serial port 1. Enabled I/O Base Address 3F8h Set serial port base address. 2F8h 220h 228h 238h 2E8h 338h 3E8h Copyright © 2016 congatec AG TR33m10 79/105... -
Page 80: Trusted Platform Module 1.2 Submenu
Note: System might restart several times during POST to perform selected operation. TPM Enabled Status No option Enabled or Disabled. TPM Active Status: No option Activated or Deactivated. TPM Owner Status: No option Owned or Unowned. Copyright © 2016 congatec AG TR33m10 80/105... -
Page 81: Trusted Platform Module 2.0 Submenu
Wake from S5 only Wake from S4 and S5 Wake from S3, S4 and S5 Wake up hour Specify wake up hour. Wake up minute Specify wake up minute. Wake up second Specify wake up second. Copyright © 2016 congatec AG TR33m10 81/105... -
Page 82: Memory Submenu
Select spread spectrum level, if previous option is enabled. -0.375% -0.400% -0.425% -0.450% -0.475% HPET Enabled Enabled or disable High Performance Event Timer. Disabled IOMMU Enabled Enable or disable IO Memory-Mapping Unit. Disabled Copyright © 2016 congatec AG TR33m10 82/105... -
Page 83: Sata Submenu
SATA drive 1 information. 11.3.12 ACPI Submenu Feature Options Description Hibernation Support Disabled Enable or disable system ability to hibernate (operating system S4 sleep state). This Enabled option may not be effective with some operating systems. Copyright © 2016 congatec AG TR33m10 83/105... -
Page 84: Super I/O Submenu
Configure COM Express SLEEP# signal to act as ACPI sleep button. Enabled 11.3.13 Super I/O Submenu Feature Options Description SIO Clock 24MHz Select Super I/O base clock. 48MHz PS/2 Keyboard/Mouse Support Disabled Enable or disable PS/2 Keyboard/Mouse controller support. Enabled Copyright © 2016 congatec AG TR33m10 84/105... -
Page 85: Serial Port Console Redirection Submenu
Enable or disable serial port 1 console redirection. Console Redirection Enabled ►Console Redirection Settings Submenu Opens console redirection configuration sub menu. 11.3.14.1 Console Redirection Settings Submenu Feature Options Description Terminal Type VT100 Select terminal type. VT100+ VT-UTF8 ANSI Copyright © 2016 congatec AG TR33m10 85/105... -
Page 86: Cpu Submenu
Redirection After BIOS POST Enabled Select whether serial redirection should be continued after POST. Disabled 11.3.15 CPU Submenu Feature Options Description ►CPU Information No option Submenu with various information about CPU and caches Copyright © 2016 congatec AG TR33m10 86/105... -
Page 87: Pci Express Submenu
Select value to be programmed into PCI latency timer register. 248 PCI Bus Clocks VGA Palette Snoop Disabled Enable or disable VGA palette registers snooping. Enabled PERR# Generation Disabled Enable or disable PCI device to generate PERR#. Enabled Copyright © 2016 congatec AG TR33m10 87/105... -
Page 88: 11.3.16.1 Pci Express Settings Submenu
Maximum Read Request Auto Set maximum read request size of PCI Express devices or allow system BIOS to select the value. 128 Bytes 256 Bytes 512 Bytes 1024 Bytes 2048 Bytes 4096 Bytes Copyright © 2016 congatec AG TR33m10 88/105... -
Page 89: 11.3.16.2 Pci Express Port Control Submenu
Select ASPM mode for current PCIe port L0s Entry L1 Entry L0s And L1 Entry Hotplug Mode Control Disabled Enable or disable hotplug on current PCIe port. Enabled PCIe Port 2 Disabled Enable or disable PCIe port 2. Enabled Copyright © 2016 congatec AG TR33m10 89/105... - Page 90 Enable or disable hotplug on current PCIe port. Enabled 1 x8 Port PEG Port Organization Select PEG port(s) layout 2 x4 Ports PEG Port 1 Disabled Enable or disable PEG port 1. Enabled Copyright © 2016 congatec AG TR33m10 90/105...
-
Page 91: 11.3.16.3 Pirq Routing & Irq Reservation Submenu
Same as PIRQA Same as PIRQA PIRQC Same as PIRQA Same as PIRQA PIRQD Same as PIRQA Same as PIRQA PIRQE Same as PIRQA Same as PIRQA PIRQF Same as PIRQA Same as PIRQA Copyright © 2016 congatec AG TR33m10 91/105... -
Page 92: Uefi Network Stack Submenu
Gate A20 control. Always Upon Request: Gate A20 can be disabled using BIOS services. Always: Do not allow disabling Gate A20 This option is useful when any runtime code is executed above 1MB. Copyright © 2016 congatec AG TR33m10 92/105... -
Page 93: Info Report Submenu
Add information on detected errors to POST report Enabled Summary Screen Disabled Show system summary screen before booting legacy or UEFI OS. Enabled Delay Time Default: 5 Select summary screen delay. 0 – 10 Until pressed ESC Copyright © 2016 congatec AG TR33m10 93/105... -
Page 94: Nvme Submenu
Enable or disable USB mass storage BIOS support. Enabled External USB Controller Support Disabled Enable or disable BIOS support for external USB controllers. Enabled Overcurrent Protection Disabled Enable or disable USB overcurrent detection for all ports. Enabled Copyright © 2016 congatec AG TR33m10 94/105... -
Page 95: 11.3.22.1 Usb Controllers And Ports Submenu
XHCI Port 1 Disabled Enable or disable XHCI port 1. Enabled XHCI Port 2 Disabled Enable or disable XHCI port 2. Enabled XHCI Port 3 Disabled Enable or disable XHCI port 3. Enabled Copyright © 2016 congatec AG TR33m10 95/105... -
Page 96: Diagnostic Settings Submenu
BC COM Port 1 Parity Bit No Parity Select parity of BC diagnostic console interface. Even Parity Odd Parity Stop Bits 1 Stop Bit Select stop bits count of BC diagnostic console interface. 2 Stop Bits Copyright © 2016 congatec AG TR33m10 96/105... -
Page 97: Pc Speaker Configuration Submenu
PCI Device ID No option Displays the PCI Device ID of the Ethernet controller. PCI Address No option Displays the PCI Bus:Device:Function number of the Ethernet controller. Link Status No option Displays the Link Status. Copyright © 2016 congatec AG TR33m10 97/105... -
Page 98: 11.3.25.1 Nic Configuration Submenu
Enter password Specifies the BIOS and setup administrator password. BIOS Update & Write Protection Disabled congatec flash software will require BIOS password to perform write or erase operations. Enabled HDD Security Configuration List of all detected hard disks supporting Select device to... -
Page 99: Bios Security Features
Only the congatec utility interface to the SMI handler of the BIOS flash update is enabled. Other interfaces to the SMI handler are disabled to prevent non congatec tools from writing to the BIOS flash. As a result of this restriction, flash utilities supplied by AMI or Intel will not work . -
Page 100: Hard Disk Security Features
Note The congatec BIOS by default enables CSM (Compatibility Support Module) and disables secure boot because most of the industrial computers today boot in legacy (non-UEFI) mode. Since secure boot is only enabled when booting in native UEFI mode, you must therefore disable the CSM (compatibility support module) in the BIOS setup to enable Secure Boot. -
Page 101: Boot Settings Configuration
Remain Off keeps the power off until the power button is pressed. Last State Turn On restores power to the computer. Last State restores the previous power state before power loss occurred. Note: Only works with an ATX type power supply. Copyright © 2016 congatec AG TR33m10 101/105... -
Page 102: Save & Exit Menu
Note 1. The term ‘AC power loss’ stands for the state when the module loses the standby voltage on the 5V_SB pins. On congatec modules, the standby voltage is continuously monitored after the system is turned off. If within 30 seconds the standby voltage is no longer detected, then this is considered an AC power loss condition. -
Page 103: Save & Exit Configuration
List of all boot devices currently detected Select device to leave setup menu and boot from the selected device. Only visible and active if Boot Priority Selection setup node is set to “Device Based”. Copyright © 2016 congatec AG TR33m10 103/105... -
Page 104: Additional Bios Features
Additional BIOS Features The conga-TR3 uses a congatec/AMI AptioV UEFI 2.4 that is stored in an onboard Flash Rom chip and can be updated using the congatec System Utility, which is available in a DOS based command line, UEFI shell command line, Win32 command line, Win32 GUI, and Linux version. -
Page 105: Industry Specifications
Industry Specifications The list below provides links to industry specifications that apply to congatec AG modules. Specification Link Low Pin Count Interface Specification, Revision 1.0 (LPC) http://developer.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0 http://www.usb.org/home PCI Specification, Revision 2.3 http://www.pcisig.com/specifications Serial ATA Specification, Revision 3.0...
