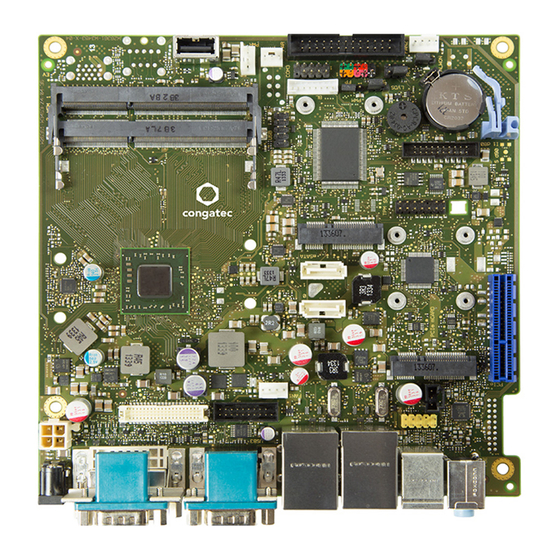

- Page 1 Mini ITX SBC Mini-ITX Professional Series single board computer based on AMD Embedded G-Series SoC User’s Guide Revision 0.2 (Preliminary)
-
Page 2: Revision History
Updated section 12.1 “System Watchdog (WD)” and section 15.1.1 “If you want to open the Boot Menu Immediately” • Deleted section 17.1 “Erase Disk” and section 22.6.1 “Diagnostic Program” because the conga-IGX does not support these features. Copyright © 2014 congatec AG... - Page 3 In no event shall congatec AG be liable for any incidental, consequential, special, or exemplary damages, whether based on tort, contract or otherwise, arising out of or in connection with this user’s guide or any other information...
- Page 4 Notes call attention to important information that should be observed. Copyright Notice Copyright © 2014, congatec AG. All rights reserved. All text, pictures and graphics are protected by copyrights. No copying is permitted without written permission from congatec AG. congatec AG has made every attempt to ensure that the information in this document is accurate yet the information contained within is supplied “as-is”.
- Page 5 (c) arising from course of performance, course of dealing, or usage of trade. congatec AG shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause.
-
Page 6: Technical Support
We request that you first visit our website at www.congatec.com for the latest documentation, utilities and drivers, which have been made available to assist you. If you still require assistance after visiting our website then contact your local congatec sales representative. -
Page 7: Table Of Contents
Sensors ..............54 LVDS Timing & Screen Resolution ......... 28 SilentFanConfigManager ............55 LVDS Tool ................32 Temperature Reference Points conga-IGX ......56 LVDS Cabling Reference ............33 Dual-DVI Output ............... 34 Power Consumption ..............58 VGA Output ................35 Sample Configuration .............. - Page 8 Advanced Menu – Advanced system configuration ....72 17.7.4 TCV Version ................81 17.7.5 Fan Control ................81 17.1 TPM (Trusted Platform Module) Computing ......73 17.7.6 Fan2 Wiring ................82 17.1.1 TPM Support ................73 Copyright © 2014 congatec AG IGX1m02 8/134...
- Page 9 Second ................... 100 18.7 19.2.7 Wake Up Mode ..............100 18.8 Secure Boot ................91 Platform Mode ................. 91 19.2.8 Wake Up Day ............... 101 18.8.1 Secure Boot ................91 19.2.9 USB Keyboard ..............101 18.8.2 9/134 Copyright © 2014 congatec AG IGX1m02...
- Page 10 Discard Changes and Reset ..........113 24.6.4 Inverter Pinout TDK CXA-0349 ..........128 22.5 Save Options ................ 113 Philips LB121S03-TL01 LVDS Cable Pinout ......129 24.7 22.5.1 Save Changes ............... 113 Panel Pinout Philips LB121S03-TL01 ........129 24.7.1 Copyright © 2014 congatec AG IGX1m02 10/134...
- Page 11 Inverter Pinout NEC 104PW201 ..........132 24.9 Philips LM150X08 LVDS Cable Pinout ........133 24.9.1 Panel Pinout Philips LM150X08 ..........133 24.9.2 Inverter Cable Plan ..............134 24.9.3 Inverter Pinout Green C&C GH001A ........134 Copyright © 2014 congatec AG IGX1m02 11/134...
-
Page 12: Safety Instructions
Safety Instructions Do not connect or disconnect any cables or modules to or from any onboard connectors (except for the rear I/O connectors) until the conga-IGX is completely powered down. Any damage caused to the conga-IGX by misuse of the onboard connectors is excluded from the standard warranty. congatec cannot be held liable for any damage that results from incorrect use of any onboard connectors. -
Page 13: System Memory Configuration
System Memory Configuration If you use only one memory module, then you must insert this memory module into slot A (upper slot), otherwise the conga-IGX will not operate. Note The conga-IGX will not operate if memory slot A is empty. -
Page 14: Feature Overview Conga-Igx
Mouse BIOS Recovery Settings System Power On Settings Keyboard mini PCIe SPDIF FAN 2 Battery PCIe X4 Copyright © 2014 congatec AG IGX1m02 14/134 DC Plug 1 = + DC Jumper Settings Front Panel 1 = HDD_LED+ 6 = Power_Switch... -
Page 15: Block Diagram
Parallel Audio IN/OUT FAN1 Buzzer Audio Int. Memory TPM Module High Definition Audio ALC671 ASRC FAN2 Frontpanel Integrated I/O - HUB BIOS INTRUSION SPDIF Out SATA-Switch mSATA SATA0 SATA1 External I/O Internal I/O Copyright © 2014 congatec AG IGX1m02 15/134... -
Page 16: Usb Structure
6 in the USB 2.0 specification. USB 3.0: conga-IGX will only support USB 3.0 compliant cables with a maximum length of 16 inches (40.5cm) (internal USB cable to the USB connector type A). The differential characteristic impedance for the SDP pairs is recommended to be within 90 Ω +/- 7 Ω. USB 3.0 cables have eight primary conductors: three twisted signal pairs for USB data paths and a power pair. -
Page 17: Conga-Igx Variants
Note 1. Maximum supported memory clock. 2. For all conga-IGX variants, DDR3-1333 (CL9) or DDR3-1600 (CL11) memory modules can be installed. 3. Up to 16GB SDRAM (unbuffered, no ECC) is possible. 4. Two memory sockets available (single channel mode). Compliant with JEDEC DDR3 1.5V, DDR3L 1.35V and DDR3U 1.25V Copyright ©... -
Page 18: External Connectors Conga-Igx
External Connectors conga-IGX Audio PS/2 Mouse & Keyboard Dual Lan 4x USB DisplayPort DVI-I 2x RS232 DC Input (12V / 19-24V) Copyright © 2014 congatec AG IGX1m02 18/134... -
Page 19: Onboard Components
Feature / GPIO mSATA SATA1 (Gen 3) (shared with mSATA) mini PCIe SATA0 (Gen 3) CPU Fan PCIe x4 (Gen 2) LVDS 2x24 Bit SPDIF DC Input 2x USB 3.0 Front panel Audio DC Input 19/134 Copyright © 2014 congatec AG IGX1m02... -
Page 20: Heatsink Installation Notes
Heatsink Installation Notes The following heatsinks are offered as accessories: Passive Heatsink Passive Heatsink with Active Heatsink with Fan Heatpipes max. CPU TDP 9W max. CPU TDP 15W max. CPU TDP 25W Heatsink positioning: Backplate Copyright © 2014 congatec AG IGX1m02 20/134... -
Page 21: Heatsink Installation Notes
Caution Insulating foil of backplate must NOT be removed, otherwise the conga-IGX may be damaged due to a possible short circuit. Note Recommended torque for heatsink screws: 0.6Nm Copyright ©... -
Page 22: Heatsink/Heatpipe Installation Notes
Due to the required dimensions of the 15W passive heatsink with heatpipes, the onboard SATA ports are covered when the device is installed. Note SATA cables with angle connectors can be used when utilizing a passive heatsink with heatpipes, but they must be installed before mounting the heatsink with heatpipes. Copyright © 2014 congatec AG IGX1m02 22/134... -
Page 23: Display Options
Display Options Basic Display Features The graphics engine of the conga-IGX supports maximum 2 independent displays, following combinations are possible: Config# DisplayPort V1.2 LVDS DVI-I (digital) DVI-I (analog VGA) Maximum 3840 x 2160 Maximum 1920 x 1200 Maximum 1920 x 1200... -
Page 24: Lvds Display & Backlight Inverter Connection
LVDS Display & Backlight Inverter Connection Backlight Inverter Integrated Backlight powered by Inverter Copyright © 2014 congatec AG IGX1m02 24/134... -
Page 25: Lvds Connector Details
(default) 12 V max. 60 Watt 3 = HDD_LED- 8 = Power_Switch 5 = Reset_Switch 19-24 V max. 100 W Copyright © 2014 congatec AG IGX1m02 25/134 4 = Power_LED- 9 = Reserved LVDS Supply Settings Plug: 2.5 / 5.5 / 11... - Page 26 BIOS Recovery / Reset to Defaults Drive Power 1 = Vcc 5 V max. 2 A System Power On Settings 2 = GND Normal Operation (default) 3 = GND 4 = +12 V max. 2 A Always on Copyright © 2014 congatec AG IGX1m02 26/134...
-
Page 27: Backlight Inverter Connector Details
Normal Operation (default) 4 = PWM BIOS Recovery / Reset to Defaults Drive Power 1 = Vcc 5 V max. 2 A System Power On Settings 2 = GND Copyright © 2014 congatec AG IGX1m02 27/134 Normal Operation (default) 3 = GND... -
Page 28: Lvds Timing & Screen Resolution
Option 10 (LVDS adjusted Parameters) becomes visible after once running the “LVDS Tool” for implementing customized LVDS settings. “Non-EDID Support” must be set to <Enabled> for standard LVDS displays without DDC (EDID) interface. Copyright © 2014 congatec AG IGX1m02 28/134... - Page 29 LVDS Mode: The correct mode (FPDI/LDI) must be set for the attached LVDS panel. Note This setting is also required if customized LVDS timings are implemented (LVDS tool). 29/134 Copyright © 2014 congatec AG IGX1m02...
- Page 30 LVDS Brightness: Set the level for the LVDS backlight brightness for “BIOS controlled” mode. 1 = minimum voltage level (0V) resp. minimum PWM level 255 = maximum voltage level (4V) resp. maximum PWM level Copyright © 2014 congatec AG IGX1m02 30/134...
- Page 31 For panels, 800 x 600 mode should be changed to <Text Mode> in order to enable full BIOS POST screen as well as the BIOS Setup screen (otherwise some portions of the screen may not be visible). Copyright © 2014 congatec AG IGX1m02 31/134...
-
Page 32: Lvds Tool
Note The LVDS tool (DOS-based) allows flashing specific LVDS settings to the system BIOS of the conga-IGX. The LVDS tool needs a panel-specific EDID configuration file based on the specification data of the LVDS panel. Sample configuration EDID files are available in the LVDS Tool kit. -
Page 33: Lvds Cabling Reference
LVDS Cabling Reference congatec does not provide LVDS cables. The user must create their own LVDS cables. Sample cabling diagrams for the following LVDS displays and related inverters are available at www.congatec.com Display Size Pixel Inverter 10.4” NEC NL6448BC33-63D 640x480... -
Page 34: Dual-Dvi Output
Dual-DVI Output DVI Monitor 1 DisplayPort to DVI Converter Cable DVI Monitor 2 Dual Independent Display/Extended Desktop Copyright © 2014 congatec AG IGX1m02 34/134... -
Page 35: Vga Output
VGA Output Analog (VGA) Monitor DVI/VGA Interface Connector Copyright © 2014 congatec AG IGX1m02 35/134... -
Page 36: Dvi Or Vga Plus Lvds
Digital (DVI) monitor or analog (VGA) monitor via DVI/VGA interface connector plus internal LVDS Display. Dual Independent Display/Extended Desktop Dual channel 24-bit LVDS support. LVDS Panel Maximum pixel rate: 138.2M Maximum LVDS screen resolution: 1920 x 1200 @ 60Hz Copyright © 2014 congatec AG IGX1m02 36/134... -
Page 37: Internal & External Graphics Use In Parallel
DisplayPort or DVI Monitor DVI Monitor Note: This is a PCIe x4 slot, not a PEG slot. Note: Maximum power consumption of PCIe PCIe graphics controller graphics controller must be considered. DVI Monitor Copyright © 2014 congatec AG IGX1m02 37/134... -
Page 38: Power Supply Features
Input current for external DC connector: maximum 5A, maximum 60W @ 12V, maximum 100W @ 19-24V Recommended plug for external AC adapter: • Ø 2.5mm / 5.5mm • contact length ~ 10-11mm • Angle plug or straight plug Copyright © 2014 congatec AG IGX1m02 38/134... -
Page 39: Requirements For 12V / 19-24V Operation
Connector Switch max. 8A “Other Devices” = any device that can be attached to the conga-IGX, such as fans, internal/external USB devices, (Mini-) PCIe controllers, mSATA modules, LVDS display + inverter, drives, GPIO devices etc. Caution Overall conga-IGX input power must never exceed 100W. -
Page 40: Power Option For Internal Devices
The DC power supply input provides a capacitive load of 700µF, which has to be covered by the AC adapter respectively the DC source during power ramp-up. 6.3.2 Limited conga-IGX output current The maximum conga-IGX output power available via (Mini-) PCIe- connector, fan-connectors, USB-connectors, GPI/O, LVDS/backlight connector, and drive power connector is limited. Maximum overall output current for each voltage: • +3.3V / 5A •... -
Page 41: Drive Power Connector
Drive Power Connector 12/19-24 V DC 12/19-24 V DC Power Data Data Maximum rating via Drive Power Connector: • +5V/2A • +12V/2A Copyright © 2014 congatec AG IGX1m02 41/134... -
Page 42: Drive Power Connector
PCIe X4 DC Plug 1 = + DC Jumper Settings D_LED+ 6 = Power_Switch 2 = GND wer_LED+ 7 = Reset_Switch LVDS BL Control Settings 12 V max. 60 Watt D_LED- Copyright © 2014 congatec AG 8 = Power_Switch IGX1m02 42/134... -
Page 43: Internal Connectors
Limited conga-IGX output current: System Keyboard mini PCIe SPDIF FAN 2 The maximum conga-IGX output power available via (Mini-) PCIe- connector, fan-connectors, USB-connectors, Battery GPI/O, LVDS/backlight-connector, and drive power connector is limited. Maximum overall output current for each voltage: PCIe X4 +3.3V 4.5A... -
Page 44: Internal Usb 2.0 Ports
2x USB 2.0 LVDS Supply Settings 19-24 V max. 100 Watt Analog 4 = Power_LED- 9 = Reserved Front Audio GPIO Copyright © 2014 congatec AG IGX1m02 Plug: 2.5 / 5.5 / 11 mm (default) 44/134 5 = Reset_Switch Buzzer... -
Page 45: Internal Usb 3.0 Ports
4 = Power_LED- 9 = Reserved 5 = Reset_Switch Fan 1 (CPU) Power Fan 2 (Chassis) 1 = GND 2 = 12 V PWM mode, 4..12 V 3-pin mode 3 = Sense 4 = PWM Copyright © 2014 congatec AG IGX1m02 45/134... -
Page 46: Internal Audio Ports - Front Panel Audio
3 = Sense When using this connector in AC97/Legacy mode pay attention to pin 7. This pin is tied to GND. HP_ON# signaling on this pin is not supported. 4 = PWM Drive Power Copyright © 2014 congatec AG IGX1m02 46/134... -
Page 47: Internal Audio Ports - Spdif
2 = Power_LED+ 7 = Reset_Switch 12 V max. 60 Watt 3 = HDD_LED- 8 = Power_Switch 19-24 V max. 100 Watt Copyright © 2014 congatec AG IGX1m02 47/134 4 = Power_LED- 9 = Reserved Plug: 2.5 / 5.5 / 11 mm... -
Page 48: Mini-Pcie Connector
2 = 12 V PWM mode, 4..12 V 3-pin mode 3 = + DC 12 / 19-24 V 3 = Sense 4 = + DC 12 / 19-24 V Normal Operation (default) Copyright © 2014 congatec AG IGX1m02 48/134 4 = PWM... -
Page 49: Internal Parallel Port Connector
3 = HDD_LED- 8 = Power_Switch 3 = GND 19-24 V max. 1 4 = Power_LED- 9 = Reserved 4 = +12 V max. 2 A Always on Plug: 2.5 / 5.5 5 = Reset_Switch 49/134 Copyright © 2014 congatec AG IGX1m02... -
Page 50: Intrusion Connector
4 = + DC 12 / 19-24 V Normal Operation (default) 4 = PWM BIOS Recovery / Reset to Defa Drive Power 1 = Vcc 5 V max. 2 A System Power On Settings Copyright © 2014 congatec AG IGX1m02 50/134 2 = GND Normal Operation (default) -
Page 51: Fan Connector
Always on TCV Version shows the BIOS internal version of the System Monitoring parameters. After they have been customized by the SilentFanConfig tool, the TCV Version in BIOS Setup is automatically changed to “OEM”. Copyright © 2014 congatec AG IGX1m02 51/134... -
Page 52: Front Panel Connector
Always on Power-on may be delayed for several seconds. DC Plug Jumper Settings Front Panel 1 = HDD_LED+ 6 = Power_Switch 1 = + DC Copyright © 2014 congatec AG IGX1m02 52/134 2 = GND 2 = Power_LED+ 7 = Reset_Switch... -
Page 53: System Monitoring
Processor Throttling is enabled @ 108°C and disabled again below 105°C. Above 115°C the processor shuts down the system. The onboard System Monitoring implementation provides a processor Alert above 105°C. Caution Fans must NOT be attached or removed while the system is powered, otherwise the conga-IGX may be damaged. Note Fan1 PWM (4-wire) only! Fan2: PWM (4-wire) or voltage controlled (3-wire) possible. -
Page 54: Conga-Igx Sensors
Sensor 4 [Core] (rear side below core voltage regulator coil ) Sensor 0 [AMD TSI] (inside Processor) Sensor 3 [Mem] Sensor 2 [12VReg] (close to 12V voltage regulator coil) Sensor 1 [SIO] (inside Super I/O) Copyright © 2014 congatec AG IGX1m02 54/134... -
Page 55: Silentfanconfigmanager
• DOS-based tool “SMCO” to flash the customized system monitoring settings (SMCO file) to the system BIOS of the target unit. Note New settings are written permanently to system BIOS. Any BIOS update or BIOS Recovery will not reset the new settings Copyright © 2014 congatec AG IGX1m02 55/134... -
Page 56: Temperature Reference Points Conga-Igx
Temperature Reference Points conga-IGX Operating Conditions: Circulating air maximum 60°C, Usage 24h/7 days SoC max. 90°C (chip surface) Super I/O (SMSC) max. 70°C Super I/O (Nuvoton) max. 70°C Battery max. 60/70°C 1) Audio Codec max. 70°C All voltage regulators (FETs) max. 90°C All capacitor max. - Page 57 COM Driver max. 70°C SATA Switch max. 80°C COM Driver max. 70°C DisplayPort/LVDS Switch max. 80°C LVDS Converter max. 70°C COM Driver max. 70°C LAN Controller max. 70°C Copyright © 2014 congatec AG IGX1m02 57/134...
-
Page 58: Power Consumption
Windows 7 - Idle Windows 7 – 100% Processor Load conga-IGX1 < 4W (see note below) ~ 13W conga-IGX2 < 4W (see note below) ~ 20W ~ 29W conga-IGX3 ~ 4W Note During fanless operation. Copyright © 2014 congatec AG IGX1m02 58/134... -
Page 59: Operating System Support
• Windows 7 32bit / 64bit • Windows 8.1 64bit • SBC conga-IGX is designed according to the Microsoft Guidelines for MS Windows 7 and Windows 8.1 • MS certified drivers are available MS Windows Embedded CE / Embedded Compact •... -
Page 60: Conga-Igx Tools
• Windows System-Monitoring API (BMCAPI) BMC-Management-Controller to access and adjust System Monitoring parameters like fan speed and temperatures. This API also provides access to the conga-IGX watchdog, the 8Bit GPIO interface and the intrusion feature of the conga-IGX. • Linux System-Monitoring Driver (“LM-Sensors”) BMC-Management-Controller to access and adjust System Monitoring parameters like fan speed and temperatures. -
Page 61: Miscellaneous
Miscellaneous 12.1 System Watchdog (WD) conga-IGX provides full Operating System Boot- and Operating System-Runtime HW Watchdog supervision. Power On BIOS POST OS Boot OS running BIOS Boot Watchdog OS Watchdog BOOT-WD-timeout OS-WD-timeout (max. 255 minutes) (according to BIOS Setup) (according to specific WD software agent) OS started. -
Page 62: Trusted Platform Module (Tpm)
12 V max. 60 Watt 19-24 V max. 100 Watt Analog 4 = Power_LED- 9 = Reserved Plug: 2.5 / 5.5 / 11 mm (default) Copyright © 2014 congatec AG IGX1m02 62/134 5 = Reset_Switch LVDS Supply Settings VCC 3.3 V VCC 5 V... -
Page 63: Known Issues And Important Notes
AMD provides a specific DVI-HMDI dongle (OPN: 199-999269). 13.5 Audio: Recording Level via HDA Front Panel Recording via HDA audio front panel is very quiet. This hardware-related issue will be solved with the upcoming conga-IGX variants. Copyright © 2014 congatec AG IGX1m02... -
Page 64: Video Playback (Wmv, Mp4)
There may be video frame glitches and data drops when running WMV- or MP4 files in 1080p resolution. Issue seems to be related to used codec version and codec settings. Currently under investigation. Copyright © 2014 congatec AG IGX1m02 64/134... -
Page 65: Introduction
Indicates data entered using the keyboard in a program dialogue or command line, e.g. your password ((Name123) or a command used to start a program (start.exe). This font Indicates information that is displayed on the screen by a program, e.g.: Installation is complete!. Copyright © 2014 congatec AG IGX1m02 65/134... - Page 66 This font Indicates • terms and texts used in a software interface, e.g.: Click on Save. names of programs or files, e.g. Windows or setup.exe. • Indicates a key on the keyboard, e.g: Copyright © 2014 congatec AG IGX1m02 66/134...
-
Page 67: Navigating Bios Setup
The selection options are the same as the possible settings given under Boot Option Priorities in the Boot submenu. ► Use the cursor keys to select which drive you want to boot the operating system from now and confirm your choice with the Enter key. Copyright © 2014 congatec AG IGX1m02 67/134... -
Page 68: If You Wish To Boot Immediately From Lan
► Select the Save & Exit menu from the menu bar to end BIOS Setup. You can then decide whether you want to save the changed settings. ► Select the required option. ► Press the Enter key. Copyright © 2014 congatec AG IGX1m02 68/134... -
Page 69: Main Menu - System Functions
Shows the current information on the installed system board and firmware. Shows the current BIOS version. BIOS Revision Shows the date and time of the formation of the current BIOS. Build Date and Time 69/134 Copyright © 2014 congatec AG IGX1m02... -
Page 70: Network Controller Details
Shows details of the memory quantities. Memory Size / Frequency Shows the total memory in Megabytes and the memory frequency in MHz. DIMM n Shows the memory size in Megabytes for the corresponding memory slot. Copyright © 2014 congatec AG IGX1m02 70/134... -
Page 71: System Language
Shows the current access level in BIOS Setup. If the system is not protected by a password, or an administrator password has been allocated, the access level is Administrator. If administrator and user passwords are allocated, the access level depends on the password entered. Copyright © 2014 congatec AG IGX1m02... -
Page 72: Advanced Menu - Advanced System Configuration
The advanced functions which are available to the system are configured in this menu for the advanced system configuration. Only change the default settings if required for a special purpose. Incorrect settings can cause malfunctions. Example showing the Advanced menu Copyright © 2014 congatec AG IGX1m02 72/134... -
Page 73: Tpm (Trusted Platform Module) Computing
The operating system can assume ownership of the TPM. Disable Take Ownership The operating system cannot assume ownership of the TPM. TPM Clear TPM is reset to the factory setting. All keys in the TPM will be deleted. Copyright © 2014 congatec AG IGX1m02 73/134... -
Page 74: Current Tpm Status Information
The SATA port is operated in RAID Mode. 17.2.2 mSATA Support Determines whether mSATA modules are detected automatically. Auto If the mSATA module has an mSATA Present Pin, the module is detected automatically. Enabled The mSATA interface is always active. Copyright © 2014 congatec AG IGX1m02 74/134... -
Page 75: Graphics Configuration
The set value specifies the size of the shared memory available to the integrated graphics in megabytes. 32M...1024M LVDS Configuration 17.4 Opens the submenu to configure the LVDS interface for direct connection of an LCD panel. Copyright © 2014 congatec AG IGX1m02 75/134... -
Page 76: Lvds Support
“Non-EDID Support = Enabled” can be set again. Disabled The LCD provides EDID. Enabled The LCD does not provide EDID. 17.4.4 LVDS Mode The selected mode of the LVDS interface must be supported by the LCD panel used. Copyright © 2014 congatec AG IGX1m02 76/134... -
Page 77: Lvds Channel Swap
The brightness of the LCD panel connected at the LVDS interface is controlled under the operating system. BIOS Controlled The brightness of the LCD panel connected at the LVDS interface is controlled in the BIOS setup. Copyright © 2014 congatec AG IGX1m02... -
Page 78: Lvds Brightness
Booting the operating system from a USB device is not possible. Enabled Legacy USB support is available. A USB keyboard or USB mouse can also be used if the operating system does not Copyright © 2014 congatec AG IGX1m02 78/134... -
Page 79: Usb Transfer Time-Out
Hard Disk Force USB hard disk emulation. Force USB CD ROM emulation. CD-ROM 17.6 USB Port Security Opens the USB Port Security submenu in order to configure the USB interfaces present on the conga-IGX. 79/134 Copyright © 2014 congatec AG IGX1m02... -
Page 80: Usb Port Control
USB ports on which USB storage devices or USB hubs are connected will be disabled. 17.7 System Monitoring 17.7.1 Controller Revision Shows the version of the system monitoring controller. 17.7.2 Firmware Version Shows the firmware version of the system monitoring controller. Copyright © 2014 congatec AG IGX1m02 80/134... -
Page 81: Chassis Type
Fan Control Specifies whether the fan speed will be adjusted automatically. The fan speed is adjusted automatically. Enabled The fan speed is not adjusted automatically. All fans are operated at maximum speed. Disabled Copyright © 2014 congatec AG IGX1m02 81/134... -
Page 82: Fan2 Wiring
Provided that it is enabled, the operating system is able to make use of the High Precision Event Timer, which allows it to meet the requirements of time-critical applications. The advanced timer is also known as the Multimedia Timer. Copyright © 2014 congatec AG IGX1m02... -
Page 83: Lan 1
Super IO Chip Shows information about the Super IO Chip. Serial Port 0 Configuration 17.10 Opens the submenu to configure the serial port 0 (COMA). 17.10.1 Serial Port Specifies whether the serial port is available. Copyright © 2014 congatec AG IGX1m02 83/134... -
Page 84: Device Settings
The values given in the list are available for the interrupt for automatic selection by the BIOS or the operating system. If conflicts with other devices occur, this option should be converted to Auto. Serial Port 1 Configuration 17.11 Opens the submenu for configuration of the serial port 1 (COMB). Copyright © 2014 congatec AG IGX1m02 84/134... -
Page 85: Serial Port
The values given in the list are available for the interrupt for automatic selection by the BIOS or the operating system. If conflicts with other devices occur, this option should be converted to Auto. Parallel Port Configuration 17.12 Opens the submenu to configure the parallel port (LPT). Copyright © 2014 congatec AG IGX1m02 85/134... -
Page 86: Parallel Port
2 or 2.4 Mbyte/sec. These modes can however only be used on devices that also support these modes. In addition, for EPP the I/O address of the parallel port must be set to 378 h or 278 h. Copyright © 2014 congatec AG IGX1m02... -
Page 87: Network Stack
Specifies whether PXE UEFI Boot via Ipv6 is available for installation of operating systems in UEFI mode. PXE UEFI Boot via Ipv6 is not available. Disabled PXE UEFI Boot via Ipv6 is available. Enabled Copyright © 2014 congatec AG IGX1m02 87/134... -
Page 88: Security Menu - Security Functions
When you access the BIOS Setup with an Administrator password, the Administrator access level is assigned to you and you have unrestricted access to the BIOS Setup. If you access the BIOS Setup without a password, access to the BIOS Setup is limited because you are only assigned the User access level. Copyright © 2014 congatec AG IGX1m02 88/134... -
Page 89: Administrator Password
If you press the enter key, a window will open in which you can assign the User password. Enter a character string to define the password. With the User password, you can prevent unauthorized access to your system. In order to be able to assign a User password, an Administrator password must already have been assigned. 89/134 Copyright © 2014 congatec AG IGX1m02... -
Page 90: User Password On Boot
Supplies the system BIOS with write protection. The system BIOS cannot be written. A flash BIOS update is not possible Disabled The system BIOS can be written. A flash BIOS update is possible. Enabled 90/134 Copyright © 2014 congatec AG IGX1m02... -
Page 91: Secure Boot
The associated signatures are saved in the BIOS or can be reloaded in the Key Management submenu. All boot loaders / OpROMs (Legacy / UEFI) can be executed. Disabled Only booting of signed boot loaders/UEFI OpROMs is permitted. Enabled 91/134 Copyright © 2014 congatec AG IGX1m02... -
Page 92: Secure Boot Mode
All keys and signature databases (PK, KEK, DB, DBX) in the system are reset to the default values. This menu option is only available when the PK is deleted. Save Secure Boot Keys Saves the Secure Boot Key and Key Databases to the selected drive. 92/134 Copyright © 2014 congatec AG IGX1m02... - Page 93 Deletes the Key Exchange Key Database (KEK) Append Var to KEK Adds an entry to the Key Exchange Key Database (KEK). After selecting the drive, the corresponding file must be selected in the browser. 93/134 Copyright © 2014 congatec AG IGX1m02...
- Page 94 Delete DBX Deletes the Forbidden Signature Database (DB). Append Var to DBX Adds an entry to the Forbidden Signature Database (DBX). After selecting the drive, the corresponding file must be selected in the browser. 94/134 Copyright © 2014 congatec AG IGX1m02...
-
Page 95: Hdd Security Configuration
Yes is shown here if the device supports use of a hard disk user password. In this case it is possible to assign a password to the hard drive. 18.10.4 Security Enabled Yes is shown here if either a hard disk user password or a hard disk master password has been assigned to the hard disk. 95/134 Copyright © 2014 congatec AG IGX1m02... -
Page 96: Security Locked
POST. The hard disk master password for your hard disk can be obtained from the hard disk vendor but only if the particular HDD-ID is provided together with a valid proof of purchase. 96/134 Copyright © 2014 congatec AG IGX1m02... -
Page 97: Power Menu - Energy Saving Functions
19.1 Power Settings 19.1.1 Power LED in S3 Determines the behaviour of the Power LED in standby (S3). The Power LED is disabled in standby. Disabled The Power LED flashes in standby. Enabled 97/134 Copyright © 2014 congatec AG IGX1m02... -
Page 98: Power On Source
The system switches on briefly, performs a status check, and then returns the mode it was in before the power failure Previous State occurred (ON or OFF). The system does not switch on. Disabled 98/134 Copyright © 2014 congatec AG IGX1m02... -
Page 99: Hibernate Like Soft Off
Determines whether the system can be switched on via a LAN controller (on the system board or expansion card). Enabled The system can be switched on via a LAN controller. Disabled The system cannot be switched on via a LAN controller. 99/134 Copyright © 2014 congatec AG IGX1m02... -
Page 100: Wake On Lan Boot
Specifies whether the system should be switched on daily, on selected week days or only once a month at the specified time. The system will be switched on daily at the time specified. Daily The system is switched on at the specified time on the selected week days. Weekly Copyright © 2014 congatec AG IGX1m02 100/134... -
Page 101: Wake Up Day
Switching on the system via a USB keyboard is only available if USB At Power-Off is set toAlways On. Disabled The network key of the USB keyboard is disabled. Enabled The network key of the USB keyboard is enabled. Copyright © 2014 congatec AG IGX1m02 101/134... -
Page 102: Event Logs - Configuration And Display Of The Event Log
Example showing the Event Logs. 20.1 Change SMBIOS event log settings 20.1.1 SMBIOS Event Log Specifies whether the SMBIOS event log is enabled. The SMBIOS event log is disabled. Disabled The SMBIOS event log is enabled. Enabled Copyright © 2014 congatec AG IGX1m02 102/134... -
Page 103: Erase Event Log
METW Multiple Event Time Window: the number of minutes that must elapse between double event logs that use a multiple event counter. The value is in the range between 0 to 99 minutes. Copyright © 2014 congatec AG IGX1m02 103/134... -
Page 104: Log Oem Codes
Enabling or disabling the conversion of EFI status codes to standard SMBIOS types (not all may be translated). 20.1.9 View SMBIOS Event Log Opens the submenu to show all SMBIOS event log entries present. Copyright © 2014 congatec AG IGX1m02 104/134... -
Page 105: Boot Menu - System Boot
Boot Menu – System boot The sequence of the drives from which booting is to occur can be specified here. Up to eight drives (can include USB ports, for example) can be listed here. Copyright © 2014 congatec AG IGX1m02 105/134... -
Page 106: Boot Configuration
Quiet Boot The boot logo is shown on the screen instead of the POST boot up information. Enabled The boot logo is displayed. The POST boot up information is shown on the screen. Disabled Copyright © 2014 congatec AG IGX1m02 106/134... -
Page 107: Fast On
Disabled USB components are not available before booting the operating system. Full Initial USB components are available already before booting the operating system. Copyright © 2014 congatec AG IGX1m02 107/134... -
Page 108: Ps2 Devices Support
Specifies whether booting via a removable data storage device such as a USB stick is supported. Disabled Booting via a removable data storage device is disabled. Booting via a removable data storage device is enabled. Enabled Copyright © 2014 congatec AG IGX1m02 108/134... -
Page 109: Virus Warning
► T o increase the priority for the selected device, press the key. T o decrease the priority, press the key. ► T o remove the selected device from the boot sequence, press the key and select Disabled. Enter 109/134 Copyright © 2014 congatec AG IGX1m02... -
Page 110: Csm Configuration
Specifies which PXE option ROM is booted. For the PXE boot, both the normal (Legacy) PXE boot and a UEFI PXE boot are available. No option ROMs are booted. Do not launch Only UEFI option ROMs are booted. UEFI only Only Legacy option ROMs are booted. Legacy only Copyright © 2014 congatec AG IGX1m02 110/134... - Page 111 Other PCI Device ROM Priority Specifies which option ROM is booted for devices other than the network, mass memory or video. Only UEFI option ROMs are booted. UEFI OpROM Only Legacy option ROMs are booted. Legacy OpROM Copyright © 2014 congatec AG IGX1m02 111/134...
-
Page 112: Save & Exit Menu - Finish Bios Setup
T o discard the changes made since calling up the BIOS Setup or since the last time the function “Save Changes” was called, select Discard Changes & Exit and Yes. BIOS Setup is terminated and POST continues. Copyright © 2014 congatec AG IGX1m02... -
Page 113: Save Changes And Reset
T o save the changes made so far as user default settings, select Save as User Defaults and Yes. 22.5.5 Restore User Defaults T o reset all the menus of the BIOS Setup to the user default settings, select Restore User Defaults and Copyright © 2014 congatec AG IGX1m02 113/134... -
Page 114: Boot Override
Yes. If you wish to leave the BIOS Setup with these settings, select Save Changes and Exit and Yes. 22.6 Boot Override Use the cursor keys to select the drive from which the operating system should be booted. Press the Enter key to start the boot process from the selected drive. Copyright © 2014 congatec AG IGX1m02 114/134... -
Page 115: Bios Update
BIOS Update T o carry out a Flash BIOS Update you must first download the necessary files from the congatec website. The BIOS is installed on a flash memory module. If an error occurs during the flash BIOS update procedure, the BIOS image may be destroyed. -
Page 116: Appendix: Lvds Reference Cable Pinouts
Appendix: LVDS Reference Cable Pinouts The following section provides information about reference cable pinouts for commonly used LVDS panels. The information here is provided based on the manufacturer’s datasheets. Copyright © 2014 congatec AG IGX1m02 116/134... -
Page 117: Auo_G0121Sn01 Lvds Cable Pinout
CLK1- CKIN- LVDS_CLK2- (CLK_EVEN-) CLK2- ◄▪▪▪▪▪► Ground Ground DDC-Clock DDCCLK DDC-Data DDCDATA +3.3V / +5V ◄▪▪▪▪▪► LCD-Power 1) +3.3V / +5V ◄▪▪▪▪▪► LCD-Power 1) +3.3V / +5V LCD-Power 1) Ground Ground LCD_PowerOn LCD_On Copyright © 2014 congatec AG IGX1m02 117/134... -
Page 118: Inverter Cable Plan
DC-In / 12V +12V ◄▪▪▪▪▪► Power 12V DC-In / 12V 24.1.3 Inverter Pinout Green C&C GH093A Signal Symbol Remark DC-IN(Vin) DC INPUT Power (12V) BL ON/OFF CCFL Drive SIGNAL(Active HIGHT) BRT_ADJ 0 ~ 5V Copyright © 2014 congatec AG IGX1m02 118/134... -
Page 119: Auo_G150Xg01 Lvds Cable Pinout
Note 3: High stands for “3.3V”, Low stands for “0V”, NC stands for “No Connection”. DDC-Clock DDCCLK DDC-Data DDCDATA +3.3V / +5V ◄▪▪▪▪▪► LCD-Power 1) +3.3V / +5V ◄▪▪▪▪▪► LCD-Power 1) +3.3V / +5V LCD-Power 1) Ground Ground LCD_PowerOn LCD_On 1) selectable via Jumper 119/134 Copyright © 2014 congatec AG IGX1m02... -
Page 120: Inverter Cable Plan
DC-In / 12V +12V ◄▪▪▪▪▪► Power 12V DC-In / 12V 24.2.3 Inverter Pinout Green C&C GH001A Symbol Remark BRT_ADJ 0 ~ 5V 3,4,7,8 BL ON/OFF CCFL Drive SIGNAL(Active HIGHT) 9,10 DC-IN(Vin) DC INPUT Power (12V) Copyright © 2014 congatec AG IGX1m02 120/134... -
Page 121: Auo-M170Eg01-Vd Lvds Cable Pinout
No contact (For AUO test only) LCD-Power 1) +3.3V / +5V ◄▪▪▪▪▪► LCD-Power 1) Power Ground Ground +5.0V Power Supply Ground +5.0V Power Supply LCD_PowerOn LCD_On +5.0V Power Supply 1) selectable via Jumper Copyright © 2014 congatec AG IGX1m02 121/134... -
Page 122: Inverter Cable Plan
Pinout analog connector CN1 (mirrored to inverter spec, inverter pinout in brackets) 24.3.3 Inverter Pinout Green C&C GH053A Symbol Remark BRT_ADJ 0 ~ 5V 1,3,5,6,8,9 BL ON/OFF CCFL Drive SIGNAL(Active HIGHT) 10,11,12 DC-IN(Vin) DC INPUT Power (12V) Note: Mirrored Pinout Copyright © 2014 congatec AG IGX1m02 122/134... -
Page 123: Auo-M190Eg01 V0 Lvds Cable Pinout
No contact (For AUO test only) LCD-Power 1) +3.3V / +5V ◄▪▪▪▪▪► LCD-Power 1) Power Ground Ground +5.0V Power Supply Ground +5.0V Power Supply LCD_PowerOn LCD_On +5.0V Power Supply 1) selectable via Jumper Copyright © 2014 congatec AG IGX1m02 123/134... -
Page 124: Inverter Cable Plan
Pinout analog connector CN1 (mirrored to inverter spec, inverter pinout in brackets) 24.4.3 Inverter Pinout Green C&C GH053A Symbol Remark BRT_ADJ 0 ~ 5V 1,3,5,6,8,9 BL ON/OFF CCFL Drive SIGNAL(Active HIGHT) 10,11,12 DC-IN(Vin) DC INPUT Power (12V) Note: Mirrored Pinout Copyright © 2014 congatec AG IGX1m02 124/134... -
Page 125: Sharp Lq190 Lvds Cable Pinout
+3.3V / +5V ◄▪▪▪▪▪► LCD-Power 1) Test pin *1 +3.3V / +5V ◄▪▪▪▪▪► LCD-Power 1) +3.3V / +5V ◄▪▪▪▪▪► +5V power supply LCD-Power 1) +5V power supply Ground Ground +5V power supply LCD_PowerOn LCD_On ◄▪▪▪▪▪► Copyright © 2014 congatec AG IGX1m02 125/134... -
Page 126: Inverter Cable Plan
Pinout analog connector CN1 (mirrored to inverter spec, inverter pinout in brackets) 24.6 Inverter Pinout PowerSystems PS-DA0412-05 Pin CN-1 Symbol Remark 1;2;3 10.8 ~ 13.2 Vdc 4;5;6 0 ~ 3.0 Vdc 0 ~ 0.5 = OFF / 3.3 ~ Vin = ON Vrm t Copyright © 2014 congatec AG IGX1m02 126/134... -
Page 127: Sharp Lq150 Lvds Cable Pinout
CLK1- LVDS_CLK2- (CLK_EVEN-) CLK2- ◄▪▪▪▪▪► Ground ◄▪▪▪▪▪► Ground DDC-Clock DDCCLK DDC-Data DDCDATA +3.3V / +5V ◄▪▪▪▪▪► LCD-Power 1) +3.3V / +5V ◄▪▪▪▪▪► LCD-Power 1) +3.3V / +5V LCD-Power 1) Ground Ground LCD_PowerOn LCD_On Copyright © 2014 congatec AG IGX1m02 127/134... -
Page 128: Inverter Cable Plan
Power 12V DC-In / 12V 24.6.4 Inverter Pinout TDK CXA-0349 Symbol Rating Remark 10.8~13.2V Ground "0~2.5V Vbr/Rbr Control /0~50kΩ" The warning output (5V in abnormal Vst (Output) 0V/5V circumstances) "0~0.4V:OFF "0~0.4V/ Vrmt 2.5V~Vin:ON" 2.5V~Vin" Copyright © 2014 congatec AG IGX1m02 128/134... -
Page 129: Philips Lb121S03-Tl01 Lvds Cable Pinout
◄▪▪▪▪▪► CLK1- CLKM LVDS_CLK2- (CLK_EVEN-) CLK2- Ground Ground DDC-Clock DDCCLK DDC-Data DDCDATA +3.3V / +5V ◄▪▪▪▪▪► LCD-Power 1) +3.3V / +5V ◄▪▪▪▪▪► LCD-Power 1) +3.3V / +5V LCD-Power 1) Ground Ground LCD_PowerOn LCD_On 129/134 Copyright © 2014 congatec AG IGX1m02... -
Page 130: Inverter Cable Plan
DC-In / 12V +12V ◄▪▪▪▪▪► Power 12V DC-In / 12V 24.7.3 Inverter Pinout Green C&C GH001HB Symbol Remark BRT_ADJ 0 ~ 5V 3,4,7,8 BL ON/OFF CCFL Drive SIGNAL(Active HIGH) 9,10 DC-IN(Vin) DC INPUT Power (12V) Copyright © 2014 congatec AG IGX1m02 130/134... -
Page 131: Nec Nl6448Bc33-63D Lvds Cable Pinout
Power supply, typ. 3.3 V / 310 mA Ground DDC-Clock DDCCLK DDC-Data DDCDATA +3.3V / +5V ◄▪▪▪▪▪► LCD-Power 1) +3.3V / +5V ◄▪▪▪▪▪► LCD-Power 1) +3.3V / +5V LCD-Power 1) Ground Ground LCD_PowerOn LCD_On 1) selectable via Jumper Copyright © 2014 congatec AG IGX1m02 131/134... -
Page 132: Inverter Cable Plan
24.8.3 Inverter Pinout NEC 104PW201 Symbol Remark VDDB Power supply GNDB Ground "Backlight ON/OFF Open or High: ON BRTC Low: OFF" BRTI Luminance control terminal BRTH Luminance control terminal Altert signal for malfunction Copyright © 2014 congatec AG IGX1m02 132/134... -
Page 133: Philips Lm150X08 Lvds Cable Pinout
◄▪▪▪▪▪► Ground ◄▪▪▪▪▪► Ground DDC-Clock DDCCLK DDC-Data DDCDATA +3.3V / +5V ◄▪▪▪▪▪► LCD-Power 1) +3.3V / +5V ◄▪▪▪▪▪► LCD-Power 1) +3.3V / +5V LCD-Power 1) Ground Ground LCD_PowerOn LCD_On 1) selectable via Jumper Copyright © 2014 congatec AG IGX1m02 133/134... -
Page 134: Inverter Cable Plan
DC-In / 12V +12V ◄▪▪▪▪▪► Power 12V DC-In / 12V 24.9.3 Inverter Pinout Green C&C GH001A Symbol Remark BRT_ADJ 0 ~ 5V 3,4,7,8 BL ON/OFF CCFL Drive SIGNAL(Active HIGHT) 9,10 DC-IN(Vin) DC INPUT Power (12V) Copyright © 2014 congatec AG IGX1m02 134/134...
