LED Descriptions
LED Left Side
Description
Off
10 Mbps link speed
Green
100 Mbps link speed
Orange
1000 Mbps link speed
Connector Type
X57/X58: 8 Pin RJ45 Connector with Gigabit Magnetic and LEDs.
5.7
SATA Interfaces
5.7.1
Standard SATA Ports
The conga-IA3 provides two SATA ports. The SATA ports are routed to connectors CN1/CN2 and support data rates up to 3GB/s. The SATA
LED on the front panel connector (X38) is lit when there is activity on any of the SATA interfaces.
Connectors CN1/CN2 Pinout Description.
Pin Signal
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
Connector Type
CN1, CN2: Standard SATA Connector
Copyright © 2015 congatec AG
LED Right Side Description
Off
No link
Steady On
Link established, no activity detected
Blinking
Link established, activity detected

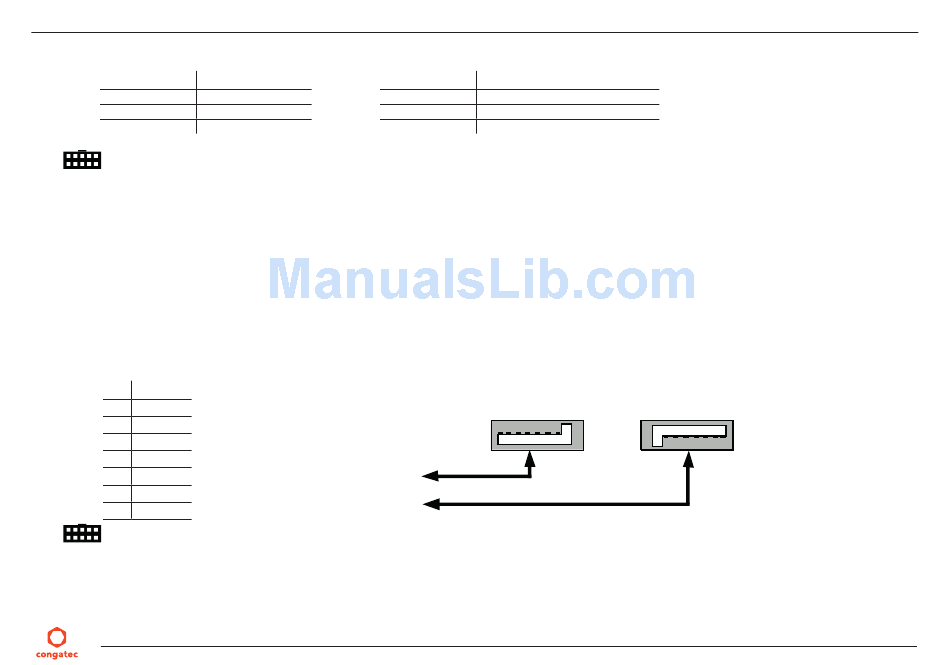

SATA0 (CN1)
1
2
3
4
5
6
7
Serial ATA Channel 0
Serial ATA Channel 1
IA30m10
SATA1 (CN2)
7
6
5
4
3
2
1
30/82
