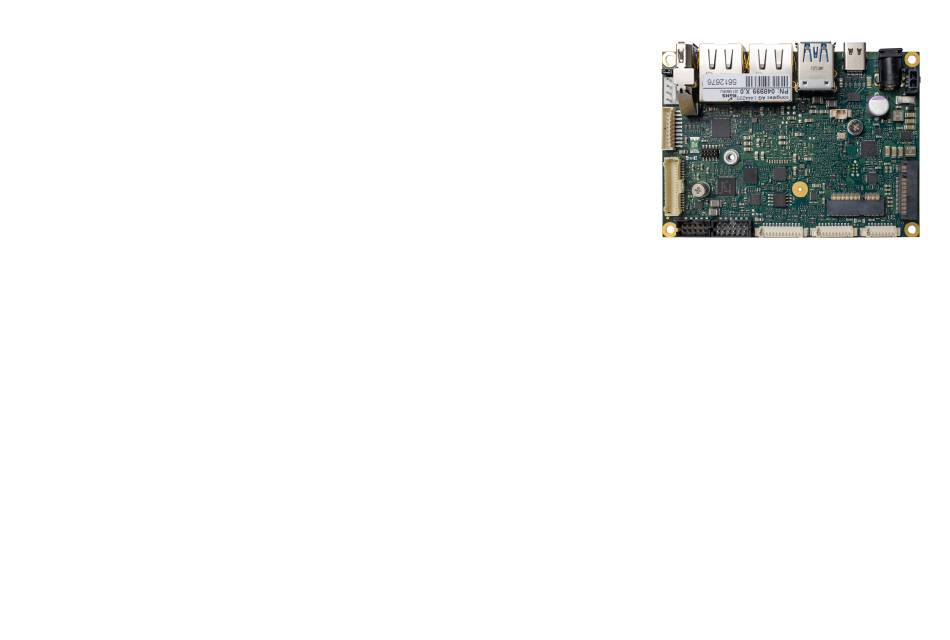

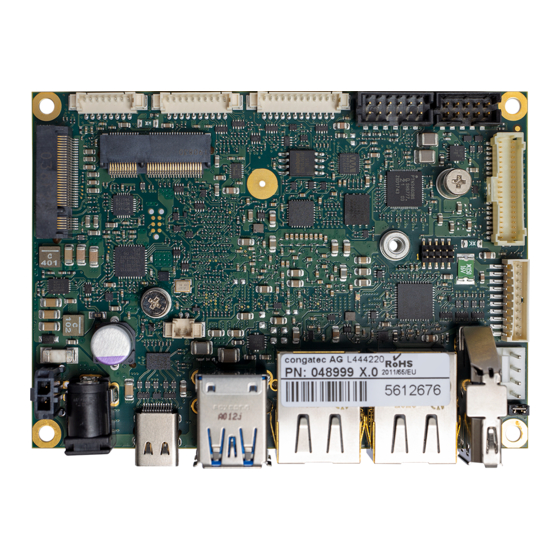

conga-PA7 Pico-ITX SBC

Based on Intel® Atom® x6000E/RE Series and Intel® Pentium® and Celeron® J Series processors

User's Guide

Revision 0.1 (Preliminary)

Need help?

Do you have a question about the conga-PA7 Pico-ITX and is the answer not in the manual?

Questions and answers

Summary of Contents for Congatec conga-PA7 Pico-ITX

Page 1 Pico-ITX SBC Based on Intel® Atom® x6000E/RE Series and Intel® Pentium® and Celeron® J Series processors User's Guide Revision 0.1 (Preliminary)
Page 3 The information contained within this user’s guide, including but not limited to any product specification, is subject to change without notice. congatec GmbH provides no warranty with regard to this user’s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to any of the foregoing.
Page 4 Copyright © 2021, congatec GmbH. All rights reserved. All text, pictures and graphics are protected by copyrights. No copying is permitted without written permission from congatec GmbH. congatec GmbH has made every attempt to ensure that the information in this document is accurate yet the information contained within is supplied “as-is”.
Page 5 (c) arising from course of performance, course of dealing, or usage of trade. congatec GmbH shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause.
Page 6 GmbH technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you first visit our website at www.congatec.com for the latest documentation, utilities and drivers, which have been made available to assist you.
Page 7 GPIOs and Real-Time Trigger Signals ........39 Cooling Solutions ..............18 DRAM..................39 Flash Storage ................39 CSP Dimensions ..............19 congatec Board Controller (cBC) ..........40 HSP Dimensions ............... 21 6.4.1 Fan Control ................40 Connector Description ............. 23 6.4.2...
Page 8 Mechanical Drawing ..............43 BIOS Setup Description ............44 Navigating the BIOS Setup Menu ........... 44 BIOS Versions................44 Updating the BIOS ..............45 Supported Flash Device ............45 Copyright © 2021 congatec GmbH PA70m01 8/45...
Page 9 X11 Pinout ................34 Table 24 X17 Pinout ................36 Table 25 X14 Pinout ................36 Table 26 X18 Pinout ................37 Table 27 X19 Pinout ................38 Table 28 X20 Pinout ................39 Copyright © 2021 congatec GmbH PA70m01 9/45...
Page 10 Ultra Low Power boards with high computing performance and outstanding graphics. Additionally, the SBC offers onboard LPDDR4x memory, eMMC storage, multiple I/O interfaces, up to three independent display interfaces, and various congatec embedded features. With small board size and low height keep-out zones, the conga-PA7 provides manufacturers and system designers with the opportunity to design compact systems for space restricted areas.
Page 11 UHD Graphics Intel ® UHD Graphics Intel ® UHD Graphics Execution Units Graphics Base / Burst 400 MHz / N/A 400 MHz / N/A 350 MHz / N/A Processor TDP (Max) 12 W Copyright © 2021 congatec GmbH PA70m01 11/45...
Page 12 USB 2.0 cable adapter, 2mm pin header, 20 / 25 cm cab-Pico-ITX-LVDS 14000211 LCD data cable for AUO G170EG01 V1 (LVDS) Table 5 Power Supplies Article Description Power Supply 60W PSU, 60W, 12V / 5A, Plug 5.5x2.5mm / 10mm length Copyright © 2021 congatec GmbH PA70m01 12/45...
Page 13 Embedded BIOS AMI Aptio ® UEFI firmware; 32 Mbyte serial SPI with congatec Embedded BIOS features; OEM Logo; OEM CMOS Defaults; LCD Control; Display Auto Detection; Backlight Control; Flash Update Feature Security TPM 2.0 Power Management ACPI 5 .0 compliant;...
Page 14 The power consumption values were measured with the following setup: • conga-PA7 • conga-PA7 cooling solution • Microsoft Windows ® ® Note The CPU was stressed to its maximum workload with the Intel Power Thermal Utility (PTU). ® Copyright © 2021 congatec GmbH PA70m01 14/45...
Page 15 S0: Min S0: Max S0: Peak S3 Freq. (GHz) 048900 048901 048902 048920 048921 048911 048912 048112 Note With fast input voltage rise time, the inrush current may exceed the measured peak current. Copyright © 2021 congatec GmbH PA70m01 15/45...
Page 16 3. Consider also the self-discharge of the battery when calculating the lifetime of the CMOS battery. For more information, refer to application note AN9_RTC_Battery_Lifetime.pdf on congatec GmbH website at www.congatec.com/support/application-notes. 4. We recommend to always have a CMOS battery present when operating the conga-PA7.
Page 17 UART 0 UART 1 Legend Transceiver Board COM1 Controller Op�onal Genera�on GPIO 0-7 External I/O Internal I/O Front I2C, RTC Ba�ery Panel Watchdog 4-Pin DC-In 12v header Note: * Assembly options on request only Copyright © 2021 congatec GmbH PA70m01 17/45...
Page 18 1. We recommend a maximum torque of 0.3 Nm for the mounting screws. 2. The gap pad material used on congatec heatspreaders may contain silicon oil that can seep out over time depending on the environmental conditions it is subjected to. For more information about this subject, contact your local congatec sales representative and request the gap pad material manufacturer’s specification.
Page 23 The conga-PA7 provides a 2-pin power connector (X22), protected against short transient overvoltage and ESD. Alternatively, this connector can be used as a +12V power output instead. Table 11 X22 Pinout Pin Description +12V Connector Type X22: 2x1 pins, 3.00 mm pitch (Molex 43650-0217); Possible Mating Connector: Molex 436450-0200 Copyright © 2021 congatec GmbH PA70m01 23/45...
Page 24 The battery has an adhesive tape on its shrinking tube. This tape enables the system integrator to adequately position the battery in the system case. The functionality of adhesive tape is time limited if exposed to higher temperatures and harsh or vibrant environment. The system integrator must ensure a stable position in this case. Copyright © 2021 congatec GmbH PA70m01 24/45...
Page 25 +5V Power Supply (for S/PDIF optical transmitter; max. 1 A shared with pin 4) Digital Ground for S/PDIF and an external class-D amplifier SPDIF_OUT S/PDIF Output (3.3V) Connector Type X6: 6x2 pins, 2.0 mm pitch, box header Copyright © 2021 congatec GmbH PA70m01 25/45...
Page 26 • USB 3.1 Gen 2 (up to 10 Gbps) • Power Delivery (up to 5V @ 3A) • DP Alt Mode (up to 4K @ 60Hz with a 4-lane adapter) • USB wake Connector Type X9: USB Type-C ® Port Copyright © 2021 congatec GmbH PA70m01 26/45...
Page 27 Description LED Right Side Description 10 Mbps link speed No link Green 100 Mbps link speed Steady On Link established, no activity detected Orange 1000 Mbps link speed Blinking Link established, activity detected Copyright © 2021 congatec GmbH PA70m01 27/45...
Page 28 X5: Full-Size DisplayPort Connector 5.7.2 USB Type-C Port ® The conga-PA7 provides one USB Type-C port (X9) with support for DP Alt Mode up to 4K @ 60Hz. ® Connector Type X9: USB Type-C port ® Copyright © 2021 congatec GmbH PA70m01 28/45...
Page 29 X3: 40 pins, 1.00 mm pitch (Molex 501190-4017); Possible Mating Connector: Molex 501189-4010 Note 1. For a single channel LVDS panel, use the LVDS_ODD pins. 2. congatec offers an LVDS cable for 17" AUO Optronics G170EG01 V.1 panel only (see section Table 4 "Cables"). Copyright © 2021 congatec GmbH PA70m01...
Page 30 The conga-PA7 supports 3.3V and 5V LVDS panels. Set the panel voltage (X3 pins 35, 36, and 38) with jumper X24. Table 19 X24 Settings Setting 1 - 2 3.3V 2 - 3 Connector Type X24: 3x1-pin, 2.00 mm pitch Copyright © 2021 congatec GmbH PA70m01 30/45...
Page 31 COM Ports The conga-PA7 provides two COM ports (X15, X16) on the bottom side. Both ports are routed from the congatec Board Controller (cBC) through a transceiver (ISL3333) and support RS232, RS422, and RS485. X15, X16 Table 20 X15, X16 Pinout...
Page 32 X1, X2: 4x1 pins, 1.25 mm pitch (Molex 53261-0471); Possible Mating Connector: Molex 51021-0400 Caution A 120 Ohm termination resistor must be added externally across pin 2 (CAN H) and 3 (CAN L). Copyright © 2021 congatec GmbH PA70m01 32/45...
Page 33 Key-B Key-B Key-B Key-B PERn1 PERp1 PETn1 PETp1 DEVSLP (O) PERn0 / SATA RX+ PERp0 / SATA RX- PETn0 / SATA TX- PETp0 / SATA TX+ PERST# (O) (0/3.3V) CLKREQ# (I/O) (0/3.3V) REFCLKn Copyright © 2021 congatec GmbH PA70m01 33/45...
Page 34 The conga-PA7 provides an M.2 Key-E connector (X11) for 2230 sized cards with support for PCIe Gen3 x1 and USB 2.0. Table 23 X11 Pinout Pin Signal Pin Signal 3.3V 3.3V USB_D+ LED_1# (I)(OD) USB_D- Copyright © 2021 congatec GmbH PA70m01 34/45...
Page 35 COEX2 REFCLKp0 COEX1 REFCLKn0 PERST0# (O)(0/3.3V) CLKREQ0# (I/O)(0/3.3V) W_DISABLE2# (O)(0/3.3V) PEWAKE0# (I/O)(0/3.3V) W_DISABLE1# (O)(0/3.3V) 3.3V 3.3V Connector Type X11: M.2 Key-E Connector Note I/O directions are for the conga-PA7 and not a card. Copyright © 2021 congatec GmbH PA70m01 35/45...
Page 36 The conga-PA7 provides a BIOS flash header (X14) for debug and service purposes only. Table 25 X14 Pinout Signal Signal Pin 1 Pin 2 CS0# +1.8V MISO MOSI BIOS_ALT# UART1_TXD Connector Type X14: 5x2 pins, 1.27 mm pitch Copyright © 2021 congatec GmbH PA70m01 36/45...
Page 37 LED indicates activity on M.2 Key-E interface. Assembly option: LED indicates activity on M.2 Key-B interface. WiFi_LED# (cathode) WWAN_LED# (cathode) Connector Type X18: 12x1 pins, 1.25 mm pitch (Molex 53398-1271); Possible Mating Connector: Molex 51021-1200 Copyright © 2021 congatec GmbH PA70m01 37/45...
Page 38 Note 1. A resettable fuse limits the 3.3V power budget of connector X19 (pin 2) and X20 (pin 10) to a total of 500 mA hold current. 2. The signals are 3.3V compatible. Copyright © 2021 congatec GmbH PA70m01 38/45...
Page 39 The conga-PA7 provides onboard eMMC 5.1 flash storage. The default storage capacity of each variant is listed in section 1.2 "conga-PA7". Optionally, the conga-PA7 can provide up to 128 GB flash storage (assembly option). Copyright © 2021 congatec GmbH PA70m01...
Page 40 The conga-PA7 is equipped with a Microchip Technology MEC1705 microcontroller. This onboard microcontroller plays an important role for most of the congatec BIOS features. The cBC fully isolates some of the embedded features such as system monitoring, I²C bus from the x86 core architecture.
Page 41 OEM POST Logo This feature allows system designers to replace the congatec POST logo displayed in the upper left corner of the screen during BIOS POST with their own BIOS POST logo. Use the congatec system utility CGUTIL 1.5.4 or later to replace/add the OEM POST logo.
Page 42 The architecture of the CGOS API driver provides the ability to write application software that runs unmodified on all congatec CPU modules. All the hardware related code is contained within the congatec embedded BIOS on the module. See section 1.1 of the CGOS API software developers guide, which is available on the congatec website.
Page 44 If you do not have access to the restricted area of the congatec website, contact your local congatec sales representative. Navigating the BIOS Setup Menu The BIOS setup menu shows the features and options supported in the congatec BIOS. To access and navigate the BIOS setup menu, press the <DEL> or <F2> key during POST.
Page 45 BIOS updates are recommended to correct platform issues or enhance the feature set of the SBC. The conga-PA7 features a congatec/AMI AptioEFI firmware on an onboard flash ROM chip. You can update the firmware with the congatec System Utility. The utility has five versions—...
