Pin
Signal
9
GND
11
Reserved
13
Reserved
15
GND
17
Reserved
19
N.C.
21
Card_Present *
23
+B
25
-B
27
GND
29
GND
31
-A
33
+A
35
GND
37
GND
39
+3.3V
41
+3.3V
43
Card_Type_Recognition *
45
N.C
47
N.C
49
N.C
51
N.C.
53
GND
Connector Type
X6: 0.8mm Pitch, 52 Pos. Mini PCI Socket
Note
* For card presence detection, pin 21 of the mSATA card must be terminated to ground. For card type recognition, pin 43 of the mSATA card
must be unconnected.
Copyright © 2015 congatec AG
Pin
Signal
10
N.C.
12
N.C.
14
N.C.
16
N.C.
18
GND
20
Reserved
22
Reserved
24
+3.3V
26
GND
28
+1.5V
30
SMB_CLK
32
SMB_DATA
34
GND
36
Reserved
38
Reserved
40
GND
42
N.C
44
N.C
46
N.C
48
+1.5V
50
GND
52
+3.3Vaux
54
GND
M43
M44
M46
IA30m10

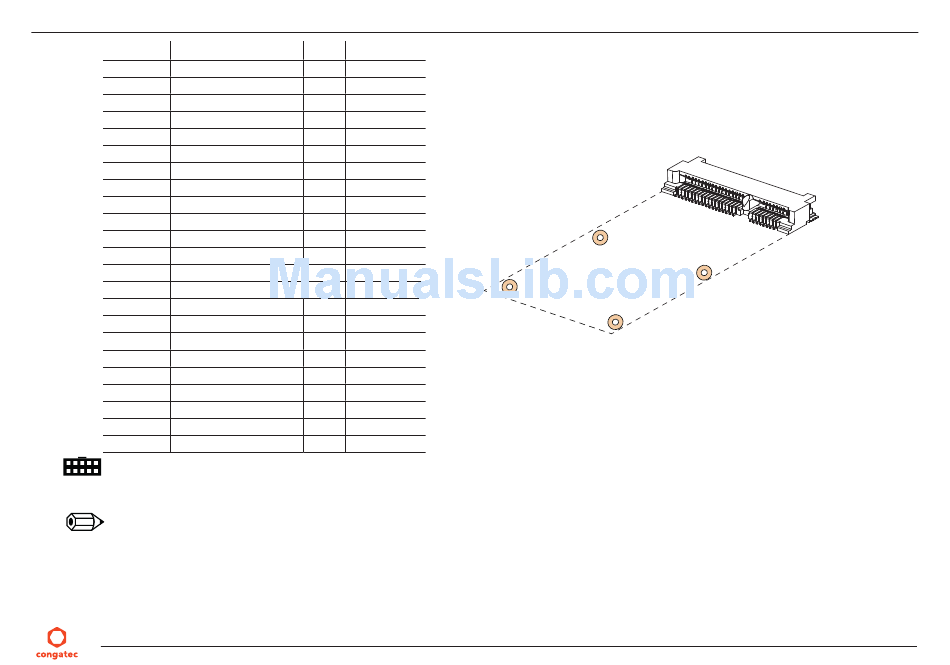

mSATA/mPCIe Socket
(Connector X6)
X6
M45
32/82
