5.9.4
PCI Express Routing

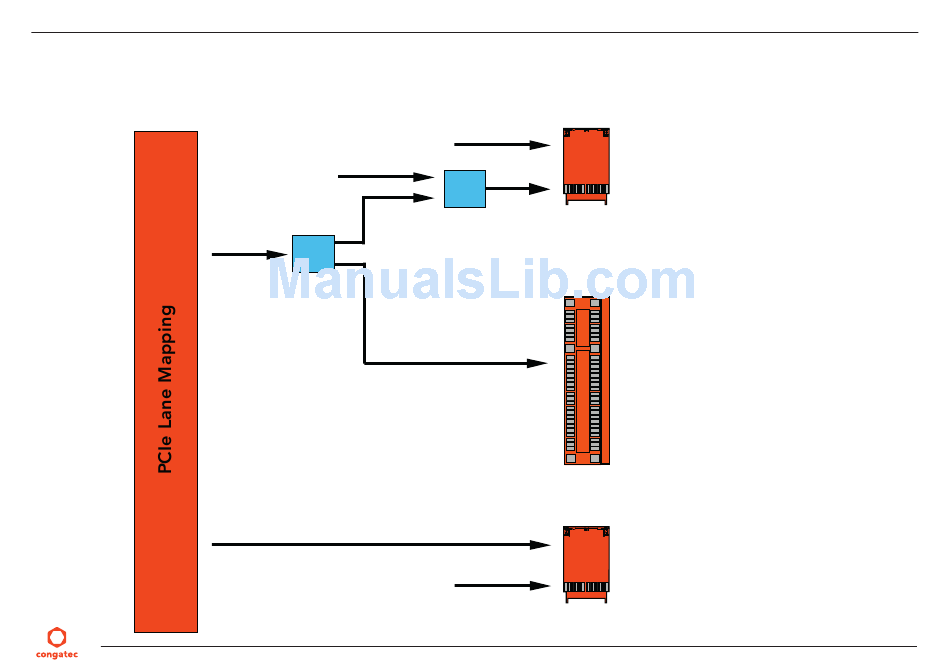

The diagram below shows how the PCIe lanes are routed to the PCIe connectors.
Copyright © 2015 congatec AG
SATA Signals
PCIe Lane0
MUX
NOTE:
The PCIe x1 Slot (X9) will not function if you insert
an mPCIe card into connector X6 (mPCIe/mSATA).
If you intend to use connector X9 , do not insert any
mini PCIe device into connector X6.
PCIe Lane 1
MIni PCIe/Mini SATA Slot
USB Signals
X6
MUX
PCIe x1 Slot
X9
Mini PCIe Slot
X10
USB Signals
IA30m10
42/82
