Power Supply (Internal Connector)

The conga-IA3 offers an internal 4-pin power connector. This connector makes it possible to use customized power supply cables/connector
and also offers under/over voltage protection to the input voltage.
Connector X44 Pinout Description
Pin Signal
1 GND
2 GND
3 +12V - 24V
4 +12V - 24V
Connector Type
X44 : 4 Pos, Pitch 4.2mm Internal Power Connector (PN: 41500079).
Mating Connector: A possible mating connector for X44 is the Molex 39-01-2045.
Note
The default conga-IA3 BIOS configuration enables the system to boot-up immediately an external is supplied.
Caution
The absolute maximum rating of the input voltage is 36 volts. Do not exceed this rating or expose the conga-IA3 to the absolute maximum
voltage for a prolonged time. Doing so may damage the system or affect system reliability.
5.1.3 Optional SBM
3
You can also power the conga-IA3 SBC optionally with an SBM battery kit. The battery kit requires two connections - the SBM battery power
on connector X50 and the SBM battery signals on connector X45. The SBM
Copyright © 2015 congatec AG
Description
Ground
Ground
Power Supply +12V-24V
Power Supply +12V-24V
Power Connector (Internal Connector)

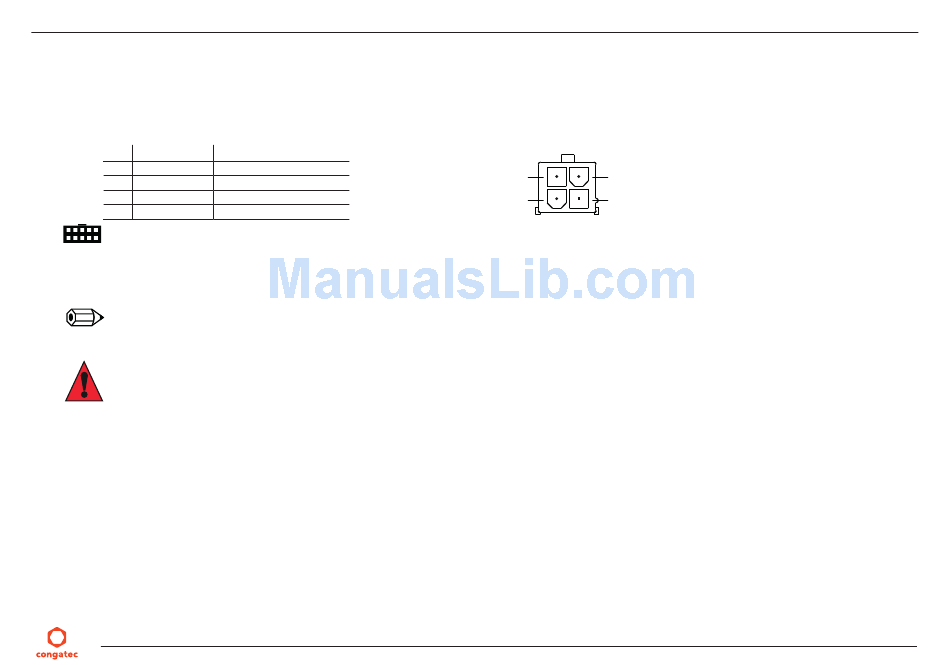

Internal Power Connector X44
3
4
1
2
3 feature requires a firmware update.
IA30m10 20/82
