Feature Connector

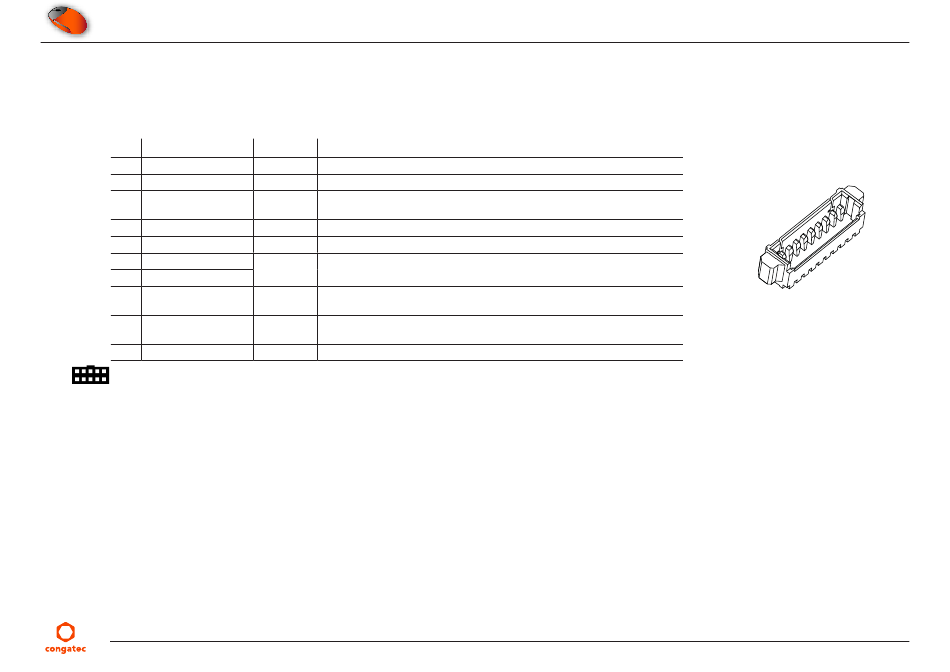

The conga-SMC1 provides X31 for management and miscellaneous signals.
Table 38
X31 Pinout Description
Pin
Signal Name
1
CARRIER_STBY#
2
RESET_OUT#
3
BATLOW#
4
WDT_TIME_OUT#
5
GND
6
GBE0_SDP
7
GBE1_SDP
8
CHARGING#
9
CHARGER_PRSNT#
10
VCC
Connector Type
X31: 10-pin, 1.25 mm pitch picoblade header (Molex 0532611071)
Possible Mating Connector: Molex 0510211000
Copyright © 2020 congatec AG
I/O Level Description
1.8 V
Input signal that indicates the system is in suspend state (active low)
1.8 V
System reset output (for external active devices)
1.8 V to 5 V
Input signal that indicates the external battery is low
Note: Connect to open-drain output
1.8 V
Watchdog timer output (driven only during runtime)
Ground
3.3 V
Output signals for hardware implementation of Precision Time Protocol (PTP)
1.8 V to 5 V
Input signal that is held low when the battery is charging
Note: Connect to open-drain output
1.8 V to 5 V
Input signal that indicates the presence of a battery charger.
Note: Connect to open-drain output
3.3 V
Power source
SMC1m10
