5.8

Display Interfaces

The conga-IA3 supports dual simultaneous displays - one Digital Display Interface and one embedded Display or LVDS interface.
5.8.1

Display Port Interface DP++

The conga-IA3 SBC has one DP++ connector (X26) located at the rear I/O panel. The display port supports the connection of DP, HDMI and
DVI displays.

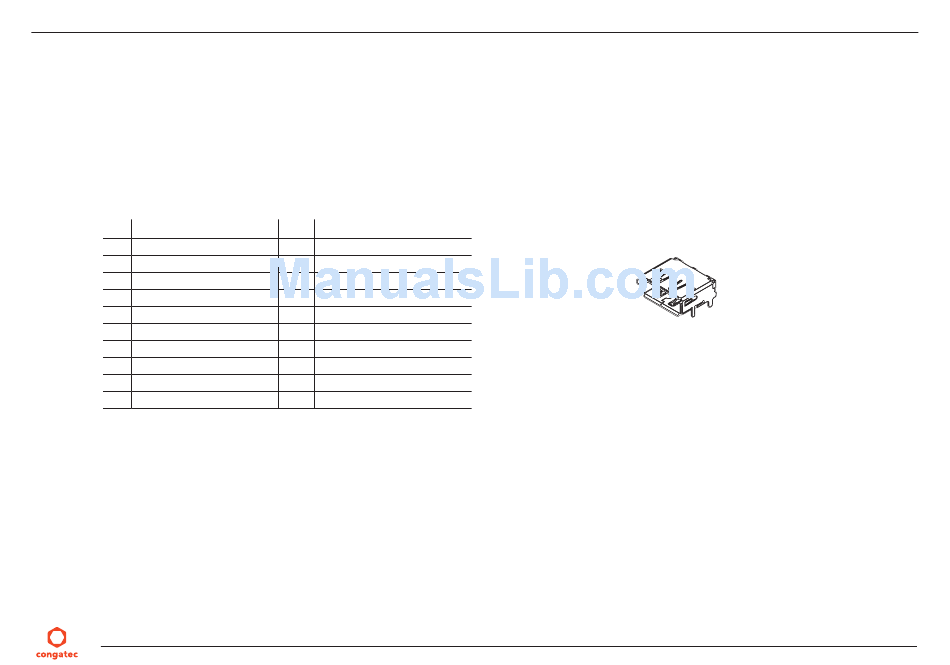

Connectors X26 Pinout Description.
Pin Signal
1 DDI_TX0+
2 GND
3 DDI_TX0-
4 DDI_TX1+
5 GND
6 DDI_TX1-
7 DDI_TX2+
8 GND
9 DDI_TX2-
10 DDI_TX3+
5.8.2

LVDS

The conga-IA3 offers LVDS interface on connector X32 - a standard 40 pin LVDS connector. The LVDS signals are sourced from the SoC's eDP
stream via a multiplexer. Depending on the BIOS setup, the multiplexer routes the eDP stream either directly to the eDP connector X28 or to
the LVDS connector X32 via an eDP to LVDS bridge. The multiplexer is configured in the BIOS setup by default to route the eDP signals to the
eDP to LVDS bridge. The eDP to LVDS bridge processes and converts the eDP stream to LVDS format.
The LVDS interface is found on the top side of the SBC and supports 24 bit single channel, selectable backlight voltage, VESA color mappings,
automatic panel detection and resolution up to 1920x1200 in dual LVDS mode.
Copyright © 2015 congatec AG
Pin Signal
11 GND
12 DDI_TX3-
13 CONFIG1
14 CONFIG2
15 DDI_AUX+
16 GND
17 DDI_AUX-
18 DDI_HPD
19 GND
20 3.3V
DP++ Connector X26
IA30m10 33/82
