7
GND
Ground
8
Data3+
High-speed differential transceiver (+ve)
9
Data3-
High-speed differential transceiver (-ve)
10
NC
Not Connected
Connector Type
X12: 2x5 Pin Header
X60: 2.54mm, 2x10 Pin Header
Note
The +5V signals of connector X12 and X60 have maximum current of 0.5A each.
congatec offers adapter cables for the Internal USB connectors (see section 1.2.2 "Optional Accessories/Cables). For more information,
contact congatec technical solution department.
5.6
Ethernet 10/100/1000
The conga-IA3 provides two Gigabit Ethernet ports (connectors X57 and X58) on the rear side. The two Gigabit Ethernet interfaces are
supported via the Intel Gigabit Ethernet controller i211. These interfaces do not support the Intel AMT.
Connectors X57/X58 Pinout Description
Pin
Description
1
Transmit Data+ or Bidirectional
2
Transmit Data- or Bidirectional
3
Receive Data+ or Bidirectional
4
Not connected or Bidirectional
5
Not connected or Bidirectional
6
Receive Data- or Bidirectional
7
Not connected or Bidirectional
8
Not connected or Bidirectional
Copyright © 2015 congatec AG
17
SS4_RX+ SuperSpeed receiver differential pair (+ve)
18
SS4_RX-
SuperSpeed receiver differential pair (-ve)
19
+5V
+5V supply
20
No Pin
Empty
10base-T
100Base-T
1000Base-T
TX+
TX+
BI_DA+
TX-
TX-
BI_DA-
RX+
RX+
BI_DB+
nc
nc
BI_DC+
nc
nc
BI_DC-
RX-
RX-
BI_DB+
nc
nc
BI_DD+
nc
nc
BI_DD-

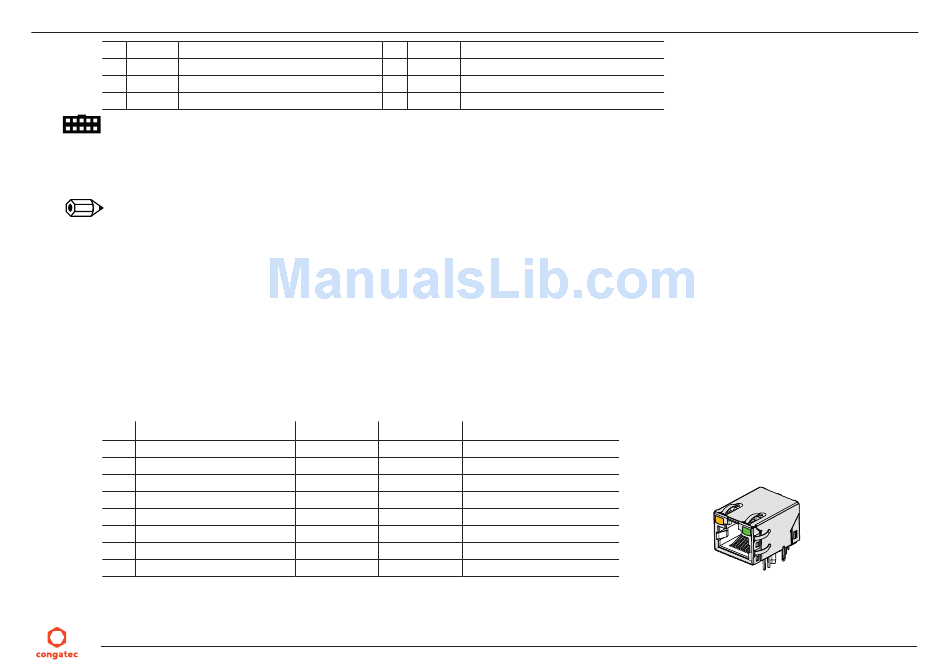

Gigabit Ethernet - Connector X57/X58
IA30m10
29/82
