5.8.3

Embedded Display Port (eDP)

The conga-IA3 provides eDP interface on connector X28 - a standard 40 pin DisplayPort connector. The eDP signals are sourced from the SoC's
eDP stream via a multiplexer. Depending on the BIOS setup, the multiplexer routes the eDP stream either directly to the eDP connector X28
on the bottom side of the SBC or to the LVDS connector X32 (top side) via an eDP to LVDS bridge. The multiplexer is by default configured in
the BIOS setup to route the eDP signals to the eDP to LVDS bridge.
To route eDP signals to connector X28, change the default BIOS setup.
Connector X28 Pinout Description
Pin Signal
1 N.C.
2 GND
3 eDP_TX3-
4 eDP_TX3+
5 GND
6 eDP_TX2-
7 eDP_TX2+
8 GND
9 eDP_TX1-
10 eDP_TX1+
11 GND
12 eDP_TX0-
13 eDP_TX0+
14 GND
15 eDP_AUX+
16 eDP_AUX-
17 GND
18 VCC_EDP_FILT
19 VCC_EDP_FILT
20 VCC_EDP_FILT
Connector Type
X28: 0.5mm , 40 Pos. ACES Connector.
Copyright © 2015 congatec AG
Pin Signal
21 VCC_EDP_FILT
22 N.C.
23 GND
24 GND
25 GND
26 GND
27 eDP_DETECT
28 GND
29 GND
30 GND
31 GND
32 eDP_LVDS_BKLT_EN
33 eDP_LVDS_BKLT_CTRL
34 N.C.
35 N.C.
36 N.C
37 BKLT_PWR
38 BKLT_PWR
39 BKLT_PWR
40 N.C.

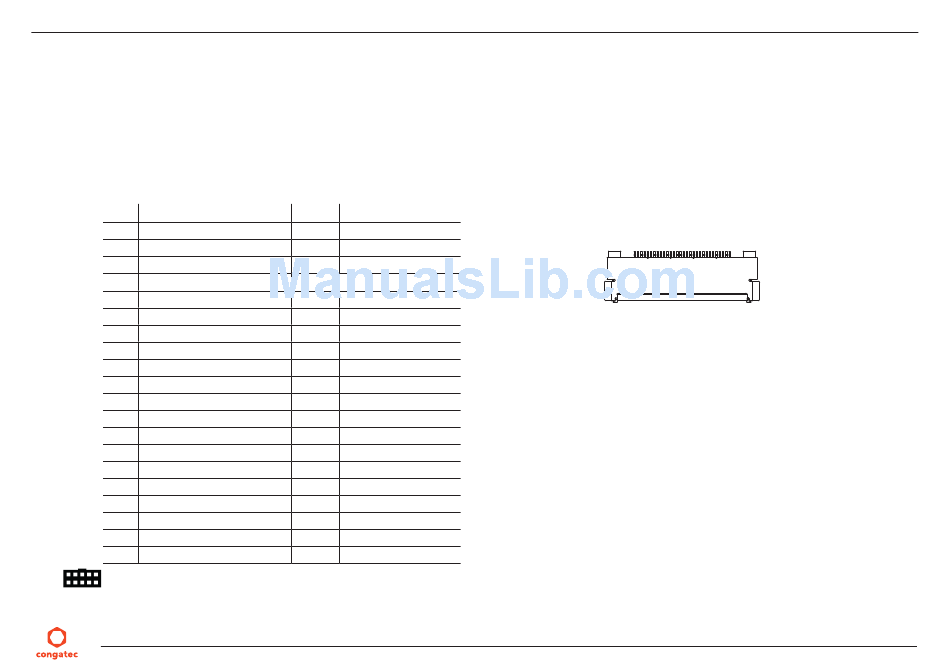

eDP Connector X28
IA30m10 35/82
