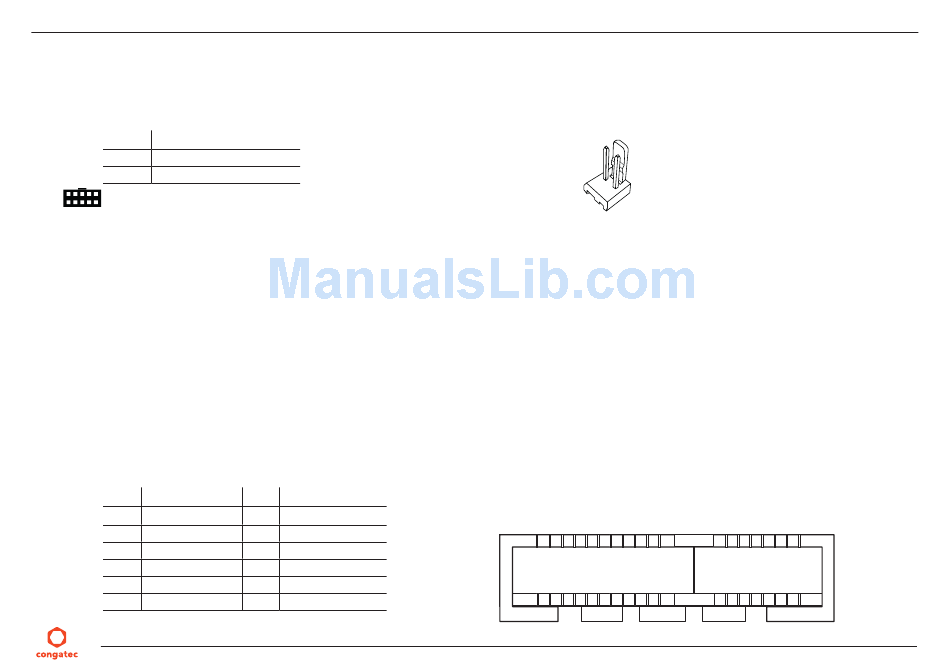

Monitor OFF connector

The monitor OFF connector X51 offers the possibility to switch off the displays attached to LVDS or eDP port.
Connector X51 Pinout Description
Pin Function
1 MONITOR_OFF#
2 GND
Connector Type
X51: 2.54mm, 2 Pos. Molex Connector.
5.9

PCI Express

The conga-IA3 provides 3 PCIe interfaces - a x1 PCIe slot on connector X9, a half-size mini PCIe (mPCIe) slot on connector X10 and a full size
mini PCIe/mini SATA slot on connector X6. Th
5.9.1

x1 PCIe Slot

The conga-IA3 offers one PCIe x1 slot on connector X9. The SoC's PCIe lane 0 signals are routed to connector X9 (x1 PCIe slot) via a multiplexer
and to connector X6 (mini PCIe/mini SATA) via two multiplexers. Connector X9 shares the SoC's PCIe lane 0 with connector X6. The PCIe signals
are controlled via the multiplexer. Immediately an mPCIe device is inserted, the multiplexer automatically switches the PCIe lane 0 signals to
connector X6.
x1 PCIe Slot (Connector X9) Pinout Description
Pin Signal
B1 +12V
B2 +12V
B3 +12V
B4 GND
B5 SMB_CLK
B6 SMB_DAT
Copyright © 2015 congatec AG
Pin Signal
A1 GND
A2 +12V
A3 +12V
A4 GND
A5 N.C.
A6 N.C.
Monitor OFF - Connector X51
PCIe Slot
(Connector X9 )
x1 PCIe
