5.6.2
Mini SATA (shared with mini PCIe)
The mini SATA connector X10 on the conga-PA5 is used to connect mSATA devices. This connector also supports mini PCIe devices. When an
mSATA or mPCIe device is connected to X10, the conga-PA5 automatically detects the type of device that is attached.
Connector Type
X10: 0.8mm pitch, 52 pin mini PCI socket
Note
For card type recognition, pin 43 of the mSATA card must not be connected.
5.6.3
SATA Power
The conga-PA5 provides an internal SATA power for hard drives on connector X11. This connector supplies 5V.
Table 16
Connector X11 Pinout Description.
Pin Signal
1
+5V
2
+GND
Connector Type
X11: 2.50mm, 2 pins, Molex Mini-Lock, TH, Vertical
Note
Maximum current of 1 amp.
5.7
Display Interfaces
The conga-PA5 supports up to three displays - one DP++, one DP via USB Type-C and one LVDS interface.
Copyright © 2017 congatec AG

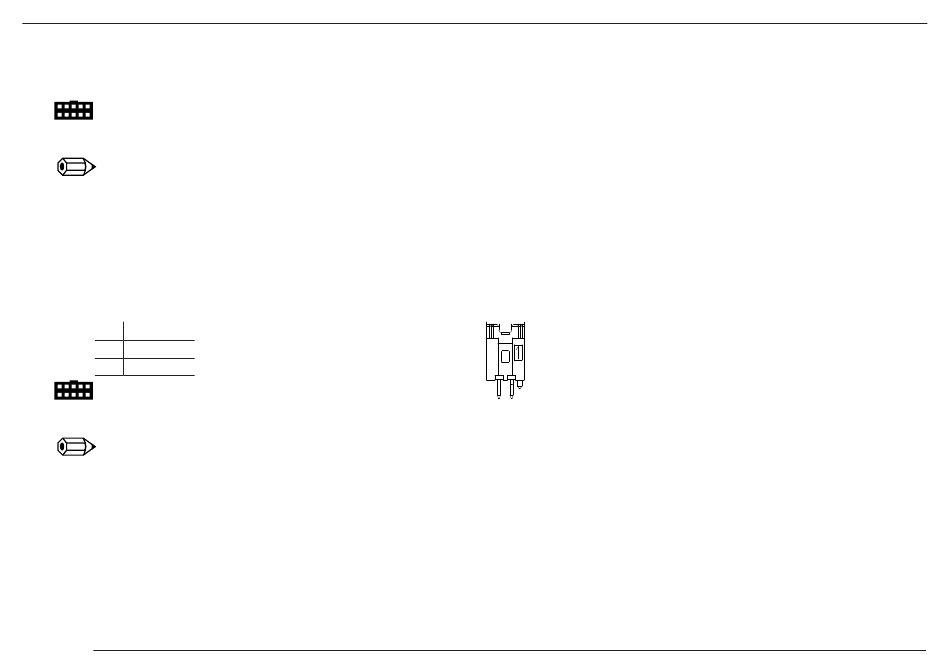

SATA Power - Connector X11
PA50m01
29/46
