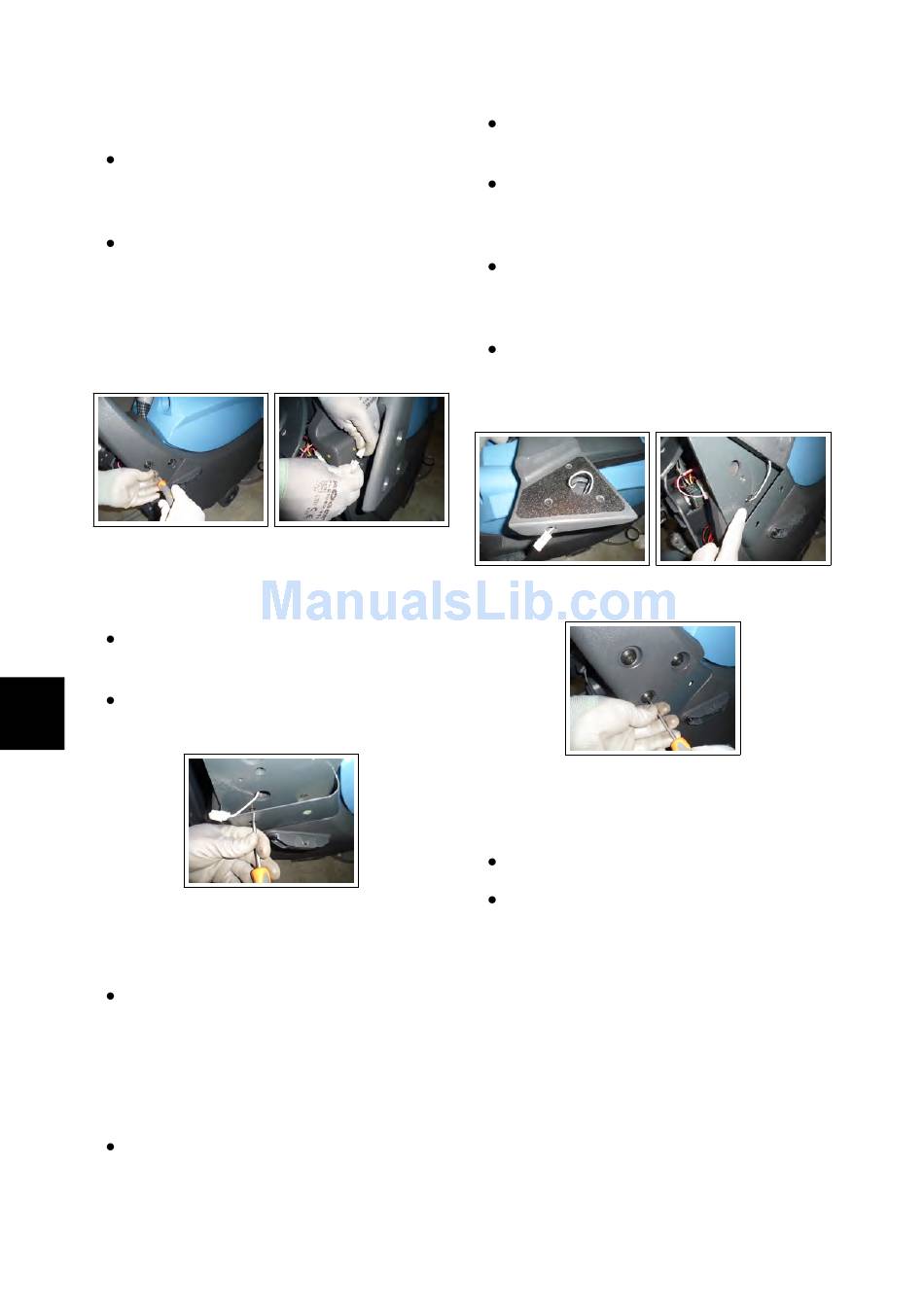

Installing instructions

Remove the handle from the ma-
chine by unscrewing the screws on
both sides.
Disconnect the connector of the
handlebar microswitch from the
electrical system (Being careful to
keep the connector outside of the
electrical system compartment)
10.4.3-27)
10.4.3-26 Handlebar re-
moving
Remove the Function Dashboard
section 4.1.2
Remove the Rear Dashboard
10-92
4.1.6 at page 18)
Fit the two extensions to the solu-
tion tank with the two screws 5x12
passing in the two respective lower
holes. (Pull the connector through
the lower large hole of the exten-
sion)
(see fig. 10.4.3-28)
On the handlebar, enlarge the hole
under in the connector's side, bring-
ing it to 14 diameter.
(see fig. 10.4.3-26)
.
10.4.3-27 Connector
at page 17)
10.4.3-28 Extensions in-
stallation
.
Pass the connector through the en-
larged hole
Reconnect the connector of the han-
dlebar microswitch to the electrical
system.
Pulling gently, accompany the con-
nector inside the electrical system
compartment
(see fig.
Install the handle to the supports
with the screws included in the kit
(see fig. 10.4.3-31)
10.4.3-29 Enlarged hole 10.4.3-30
(see
(see section
Restore the Rear Dashboard.
Restore the Function Dashboard.
.
(see fig. 10.4.3-29)
(see fig. 10.4.3-30)
.
pulling
10.4.3-31 Handlebar in-
stallation
.
Connector
