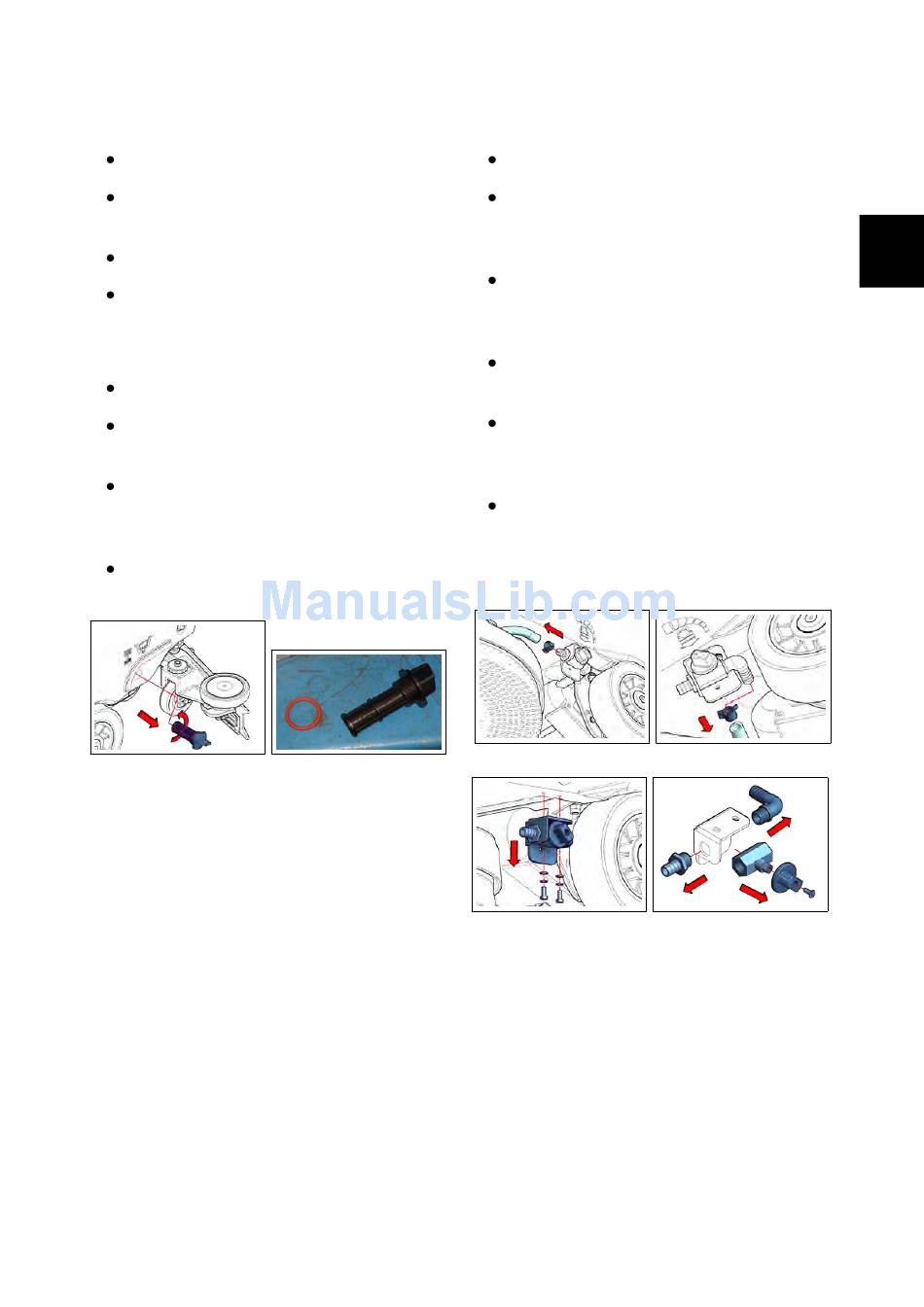

4.5.2

Hoses

Put the machine in safe conditions.
Loose the clamps that block the hose
to the fitting.
Slip off the hose from the fitting.
Proceed at reverse to refit the part.
4.5.3

Solution Filter

Put the machine in safe conditions.
Loose the filter and remove it from
its housing
(see fig. 4.5.3-96)
Slip off the OR gasket from the filter
paying attention to not damage it
.
fig. 4.5.3-97)
Proceed at reverse to refit the part.
4.5.3-96
4.5.4
.
(see
4.5.3-97

Water Valve

Put the machine in safe conditions.
Unplug the hoses from the Water
Valve loosing the hose clamps
4.5.4-98) (see fig. 4.5.4-99)
Remove the screws that block the
Proportional Valve Bracket to the So-
lution Tank.
(see fig. 4.5.4-100)
Remove the Proportional Valve As-
sembly.
Loose the Proportional Valve ad-
juster knob from the proportional
valve body and remove the knob.
Proceed at reverse to refit the part
(Use sealing liquid on the fitting to
refit the part).
4.5.4-98
4.5.4-100
(see fig.
4-41
4.5.4-99
4.5.4-101
