- Page 1 USE AND MAINTENANCE MANUAL FM43 F FM43 F PLUS ED. 10-2010 ORIGINAL INSTRUCTIONS Doc. 10025797 AB Version...
- Page 2 The descriptions contained in this document are not binding. The company therefore reserves the right to make any modifications at any time to elements, details, or accessory supply, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings contained in this document is prohibited by law.
-
Page 3: Table Of Contents
17. NOT ENOUGH DETERGENT SOLUTION ON THE BRUSH (OPTIONAL)..................... 16 18. THE MACHINE VIBRATES OR OSCILLATES ..........................16 DISPOSAL .....................................17 CHOOSING AND USING THE BRUSHES............................18 FM43 F ELECTRICAL SYSTEM DIAGRAM ............................19 FM43 F PLUS ELECTRICAL SYSTEM DIAGRAM..........................20 EC DECLARATION OF COMPLIANCE ............................21... -
Page 4: On Consignment Of The Machine

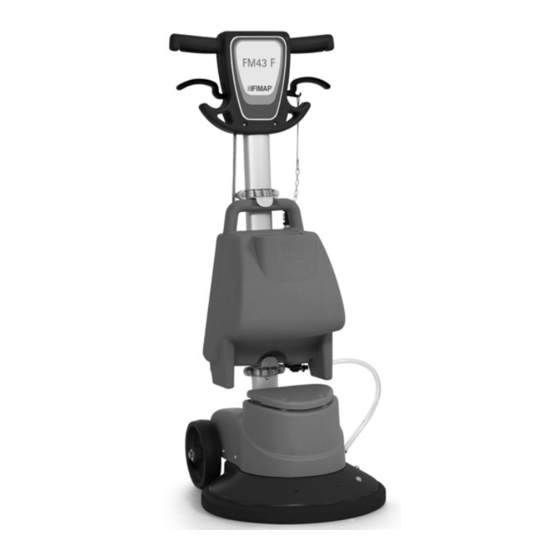

Introductory comment Serial number plate FM43 F and FM43 F PLUS machines are built for the professional cleaning of hard and vinyl floors for indoor surfaces, to be carried out by following the instructions. Any use of the machine for other purposes is dangerous and therefore prohibited. -
Page 5: Symbols Used On The Machine
SYMBOLS USED ON THE MACHINE Indicates the earth connection point of the electric system of the machine Voltage symbol Warning high voltage 230 Volt Indicates the maximum gradient... -
Page 6: General Safety Regulations
• When your FIMAP machine has reached the end of its long working life, dispose of the materials it contains (especially oils and electronic components) in an appropriate manner, and bearing in mind that the machine itself was constructed using 100% recyclable materials. -
Page 7: Machine Preparation
The total mass of the machine with packaging is 00 kg (without solution tank). The dimensions of the packaging is as follows: FM43 F – FM43 F PLUS A : 570 mm B : 490 mm C : 1190 mm 2. -
Page 8: Steering Column Components
MACHINE PREPARATION 4. Man present push-button 6. STEERING COLUMN COMPONENTS The handlebar column components are identified as follows: 1. Cable wrap bracket - solution tank support bracket (optional) 7. HANDLEBAR ADJUSTMENT – WORK POSITION Before you start working with the machine, you will need to find the correct work position. To do this, press the tilt adjustment lever, release it until your arms are slightly bent and as low as possible, while keeping the back straight and the legs slightly apart. -
Page 9: Detergent Solution
MACHINE PREPARATION 6. Insert the water distribution pipe (4) in the hole in the brush head (5) 7. Insert the tank tap tie-rod (6) in the hook on the tap control handle (7) 9. DETERGENT SOLUTION Fill the solution tank only when the column is in vertical position, by proceeding as follows: 1. - Page 10 MACHINE PREPARATION WARNING: you are advised to always wear protective gloves, to avoid the risk of serious injury to your hands WARNING: during this operation, check there are no people or objects near the brush. WARNING: Make sure the brushes are correctly connected. If this is not the case, the machine could move in an irregular, sudden manner.
-
Page 11: Work
WORK 11. PREPARING TO WORK Make sure the power supply cable is not damaged Plug the power supply cable of the machine into the mains socket Bring the handlebar into work position by acting on the release lever 12. MANOEUVRABILITY OF THE MACHINE The first time an operator uses the machine, he/she should become familiar with the movements to be imparted to the shaft in order to be confident enough with the directionality of movement of the machine, and should therefore not operate the machine near people or obstacles. - Page 12 WORK 4. Drive the machine with the rotating@ brush from left to right or in reverse 5. Immediately afterwards, drive the machine in a similar way but in reverse, so that about one quarter of the working width overlaps the previous one 6.
-
Page 13: At The End Of The Work
AT THE END OF THE WORK At the end of the work, and before carrying out any type of maintenance, perform the following operations: Disconnect the plug from the mains socket Wrap it into the rear brackets Operate the handlebar adjustment lever (1) and set the column at rest Move the machine indoors, in an area where it cannot cause any damage to people or surrounding property, but where it can also be protected against the accidental fall of objects. -
Page 14: Daily Maintenance
DAILY MAINTENANCE PERFORM ALL MAINTENANCE OPERATIONS IN SEQUENCE 14. DISASSEMBLING THE BRUSHES-PAD HOLDER 1. Make sure the power supply cable is unplugged from the mains socket 2. Check that the handlebars are in the rest position 3. Tilt the machine until bringing the handlebars down to the ground, by putting a foot into the rear of the brush head body WARNING: This operation must be carried out using gloves to protect against contact with dangerous solutions. -
Page 15: Weekly Maintenance
WEEKLY MAINTENANCE 15. CLEANING THE SOLUTION TANK 1. Check that the solution tank is empty, otherwise empty it by keeping the tap control lever operating 2. Remove the water distribution pipe (1) from the hole on the brush head 3. Disconnect the tie-rod (2) from the tap control lever (3) 4. -
Page 16: Troubleshooting
TROUBLESHOOTING 16. THERMAL CUT-OUT The single-disc machine is equipped with the following electrical protection systems, thermal cut-out (1), located off the handlebars, to protect the motor. In the event of malfunctioning, check a thermal cut-out has not intervened. If the motor overheats, its thermal cut-out intervenes to block the electricity supply. -
Page 17: Disposal
DISPOSAL To dispose of the machine, take it to a demolition centre or an authorised collection centre. Before scrapping the machine, it is necessary to remove and separate the following materials and then send them to the appropriate collection centres, in accordance with the currently effective environmental hygiene regulations: •... -
Page 18: Choosing And Using The Brushes
TABLE FOR CHOOSING THE BRUSHES Machine No. of Code Type of bristles ∅ Bristle ∅ Brush Length Notes brushes 405653 BRUSH FM43 F 405657 ABRASIVE BRUSH FM43 F PLUS 405659 PPL - BLUE 0.45 BRUSH 405540 PAD HOLDER... -
Page 19: Fm43 F Electrical System Diagram
FM43 F ELECTRICAL SYSTEM DIAGRAM COMPONENT NAMES CABLE NAMES ABBR. CABLE Cut-out 8A Cable 3x1.5x15 metres + shuko plug -1- Black Operating switch 16A Cable 3x1.5x1680 -2- Blue Noise filter Brown cable 1.5x150 -3- Brown Operating condenser 40μF Start condenser 88μF... -
Page 20: Fm43 F Plus Electrical System Diagram
FM43 F PLUS ELECTRICAL SYSTEM DIAGRAM COMPONENT NAMES CABLE NAMES ABBR. CABLE Cut-out 8A Cable 3x1.5x15 metres + shuko plug -1- Black Operating switch 16A Cable 3x1.5x1680 -2- Blue Noise filter Brown cable 1.5x150 -3- Brown Operating condenser 40μF 2 white cables 1.5x250 -4- Start condenser 88μF... -
Page 21: Ec Declaration Of Compliance
37050 Santa Maria di Zevio (VR) - ITALY Santa Maria di Zevio, 21/10/2010 FIMAP S.p.A. Legal representative Giancarlo Ruffo FIMAP spa Via Invalidi del Lavoro, 1 - 37050 S.Maria di Zevio (Verona) Italy Tel. +39 045 6060411 r.a. - Fax +39 045 6060417 - E-mail:fimap@fimap.com - www.fimap.com...
