5.3

Structure IMx B/BT

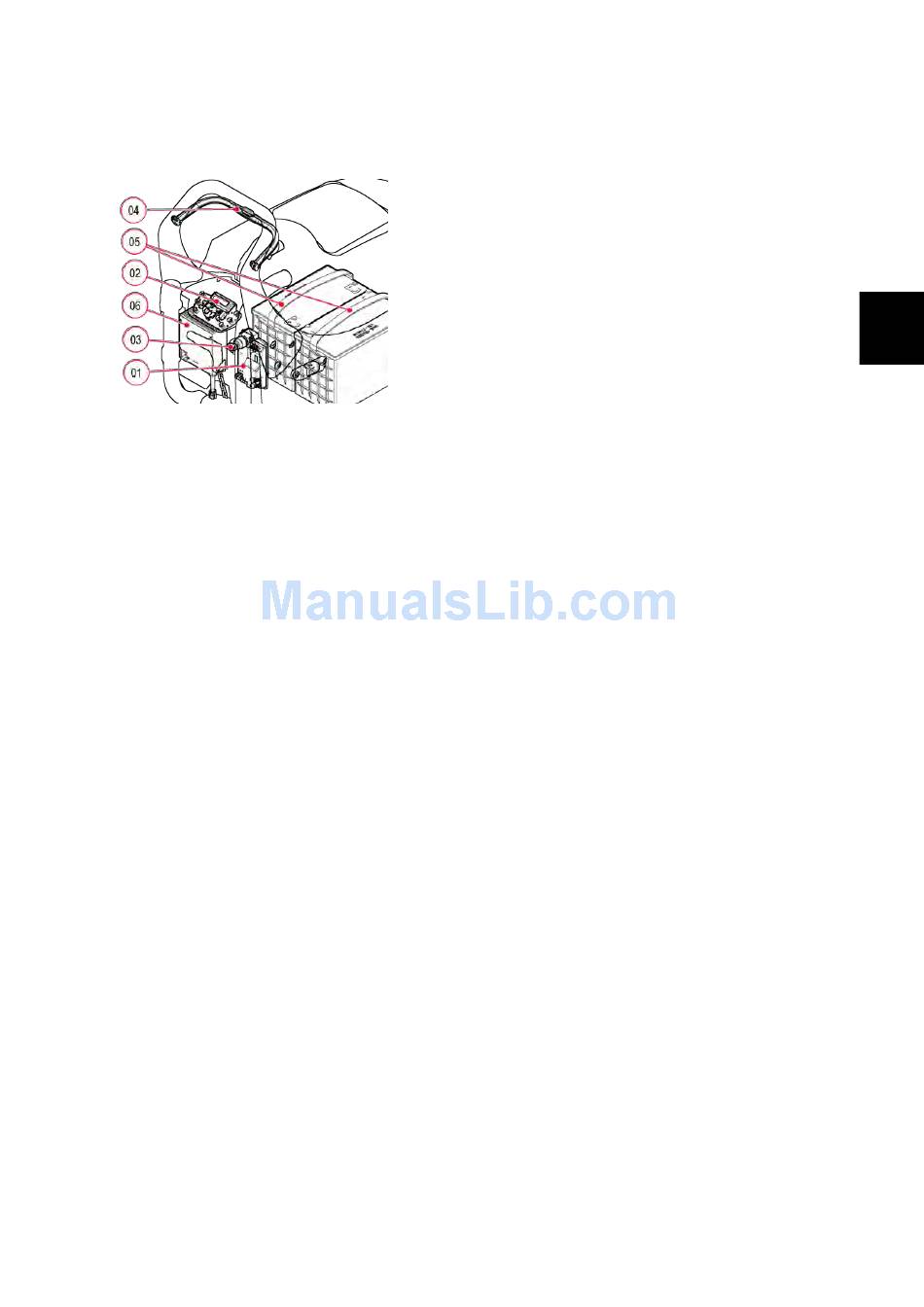

Figure 5.2: Electrical System IMx B/BT
1. Main Card
2. Control Card
3. Key
4. Safety Micro
5. Batteries
6. Charger
5.4 Description
B/BT
A main card runs all the functions of the
machine, traction, brush base, vacuum
and water. The main card receive as in-
put, all the information from the con-
trol card, safety micro and all the elec-
tronic devices of the machine. These sig-
nals are translated from the main card
to run correctly the scrubber dryer and
to prevent any safety problem to the op-
erator. The dash board can be used
also as a programmer console to mod-
ify the parameter of all the machine's
functions (traction, vacuum and wash-
ing) and, also, to check the consumption
of all the motors and batteries.
IMx
5-45
