Electrical Installation

4.1.1

Tools needed

Philips
medium
4-22
Screw driver small and medium
Wrench:
– n. 2,5
– n. 5,5
– n. 6
– n. 8
– n. 10
– n. 13
Allen Key:
– n. 2,5
– n. 4
– n. 5
Socket Wrench n. 13

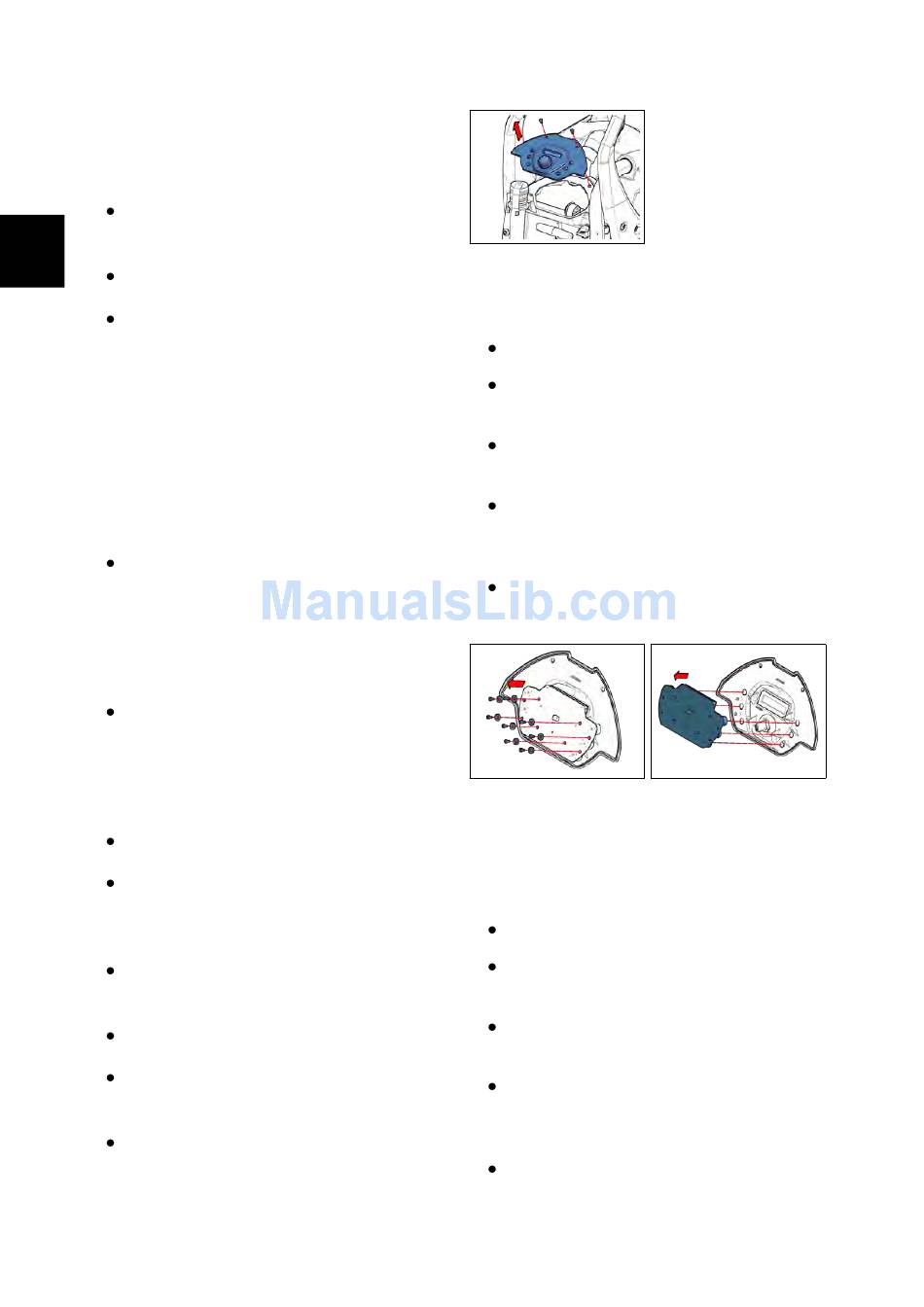

4.1.2 Function Dashboard IMx
B/BT
Put the machine in safe conditions.
Loose the screws that block the
Function Dashboard to the machine
(see fig. 4.1.2-1)
Unplug the cable that connect the
Power Card to the Display Card.
Remove the function Dashboard.
Remove the Button Covers from the
Function Dashboard.
Proceed at reverse to refit the part.
screw driver small
.
and
4.1.2-1
4.1.3

Display Card IMx B/BT

Put the machine in safe conditions.
Remove the Function Dashboard
section 4.1.2 at page 17)
Unplug the cable that connects the
Display Card to the Power Card.
Loose the screw that block the Dis-
play Card to the Function Dash-
board.
(see fig. 4.1.3-2) (see fig. 4.1.3-3)
Proceed at reverse to refit the part.
4.1.3-2
4.1.4

Potentiometer IMx B/BT

Put the machine in safe conditions.
Remove the Function Dashboard
section 4.1.2 at page 17)
Remove the Display Card
4.1.3 at page 17)
Unplug the wires connected to the
potentimeter (Rif. POT)
.
at page 43)
Slip out the Potentiometer Adjuster
Knob (it's fit with pressure).
4.1.3-3
(see section
.
(see section
(see
(see
5.5.2
