Buzzer Imx B/Bt; Key Switch; Bdi (Battery Discharge Indicator) Imx Bb - Fimap IMx Workshop Manual

4-24
4.1.6-8
4.1.6-10
4.1.7

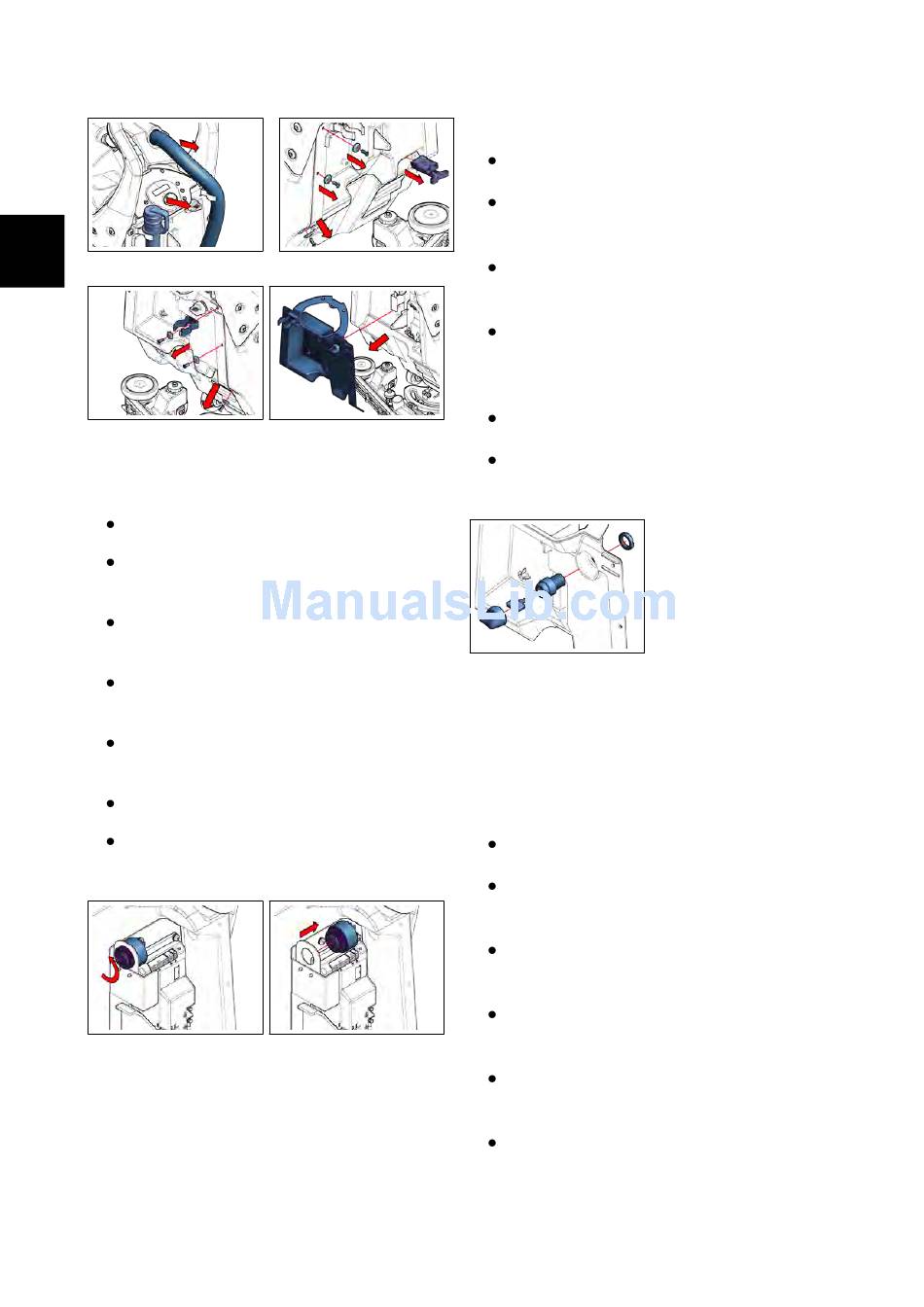

Buzzer IMx B/BT

Put the machine in safe conditions.
Remove the Function Dashboard
section 4.1.2
Remove the Rear Dashboard
4.1.6 at page 18)
Unplug all the wires connected to
the Buzzer.
Loose the ring that block the Buzzer
on the support bracket
Remove the Buzzer
Proceed at reverse to refit the part.
4.1.7-12
4.1.6-9
4.1.6-11
at page 17)
(see fig. 4.1.7-12)
(see fig. 4.1.7-13)
4.1.7-13
4.1.8

Key Switch

Put the machine in safe conditions.
Remove the Function Dashboard
section 4.1.2
Remove the Rear Dashboard
4.1.6 at page 18)
Loose the ring that blocks the Key
Switch to the Rear Dashboard
4.1.8-14)
Remove the Key Switch.
Proceed at reverse to refit the part.
(see
(see section
4.1.8-14
.
4.1.9 BDI (Battery Discharge
.
Indicator) IMx BB
Put the machine in safe conditions.
Remove the Function Dashboard
section 4.1.2
Unplug the multipolar connector
from the BDI.
Loose the knobs that block the BDI
to its bracket
Remove the BDI from the Function
Dashboard
Proceed at reverse to refit the part.
at page 17)
.
at page 17)
(see fig. 4.1.9-16)
.
(see fig. 4.1.9-17)
(see
(see section
(see fig.
(see
