Chapter 10

Accessories

10.1 Accessories List
Splashguard Kit
Onboard Charger Ki
Extension Handlebar Kit
10.2 Splashguard
223227
10.2.1 Description
Even if the solution output is in the mid-
dle of the brush, on particular not ab-
10-88
sorbing kind of floors could be neces-
sary a Splashguard in order to avoid the
dispersing of the solution outside of the
scrubbing path. The Functioning of this
kit is absolutely equal to the other ones
similar to it.
10.2.2 Tools needed for the in-
stallation
Wrench 8, 10.
10.2.3 Machine Preparation
Before to install the Splashguard kit is
necessary to secure the machine, release
the brush, switch off the machine and
unplug the batteries.
Move the blocking point of the bumper
wheel using the second hole on the
Brush deck frame.

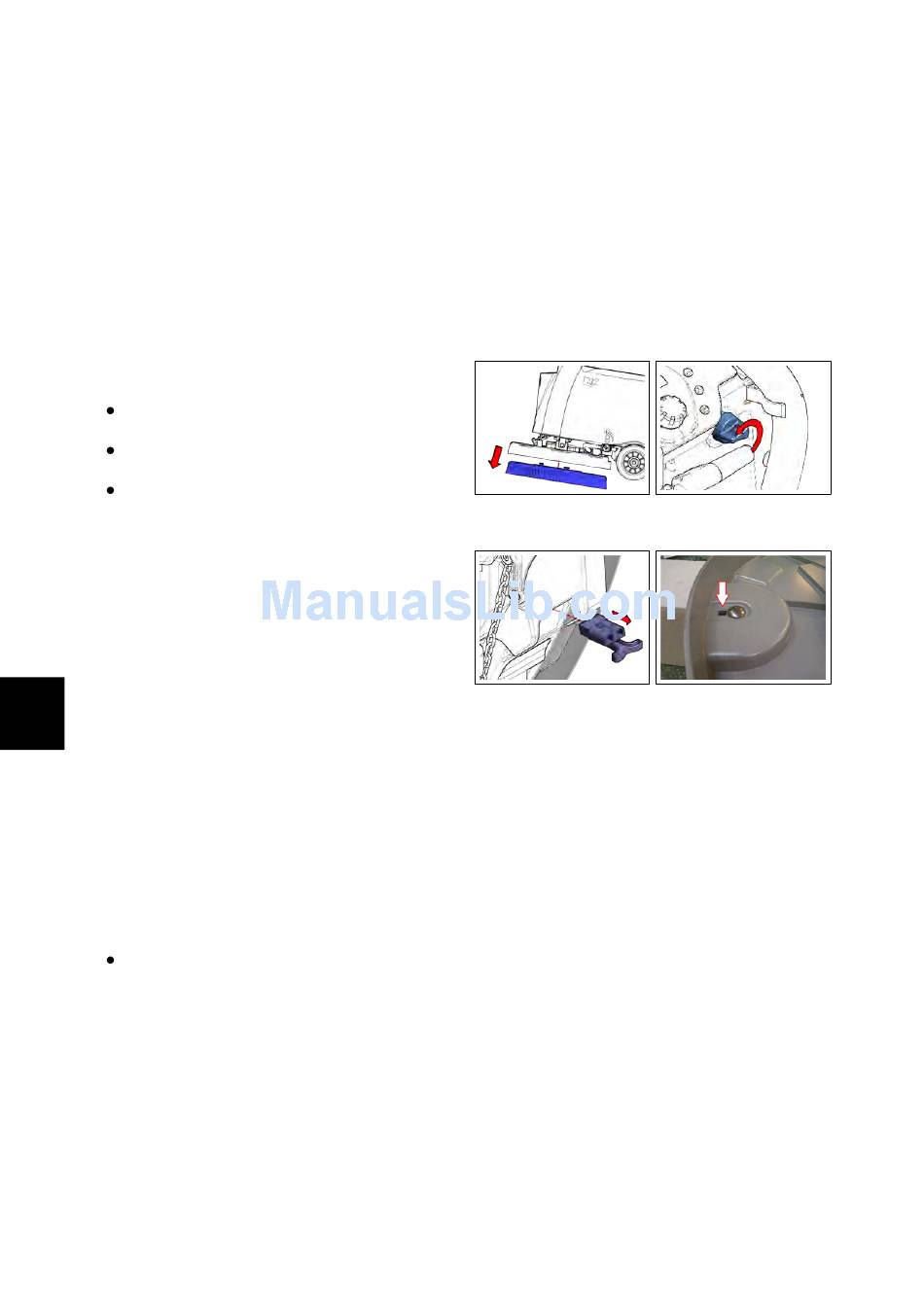

10.2.3-1 Brush release
Kit -
10.2.3-3 Disconnection of
the batteries
Proceed to install the splashguard carter
included in the kit.
88
10.2.3-2 Machine switch-
ing off
10.2.3-4 Fitting hole for
the Bumper Wheel
