9.3.5

Solenoid Valve

Checks:
The solenoid valve has to block com-
pletely the solution flow when the brush
deck is not working. Viceversa it has to
grant the full flow rate when the brush
deck is working.

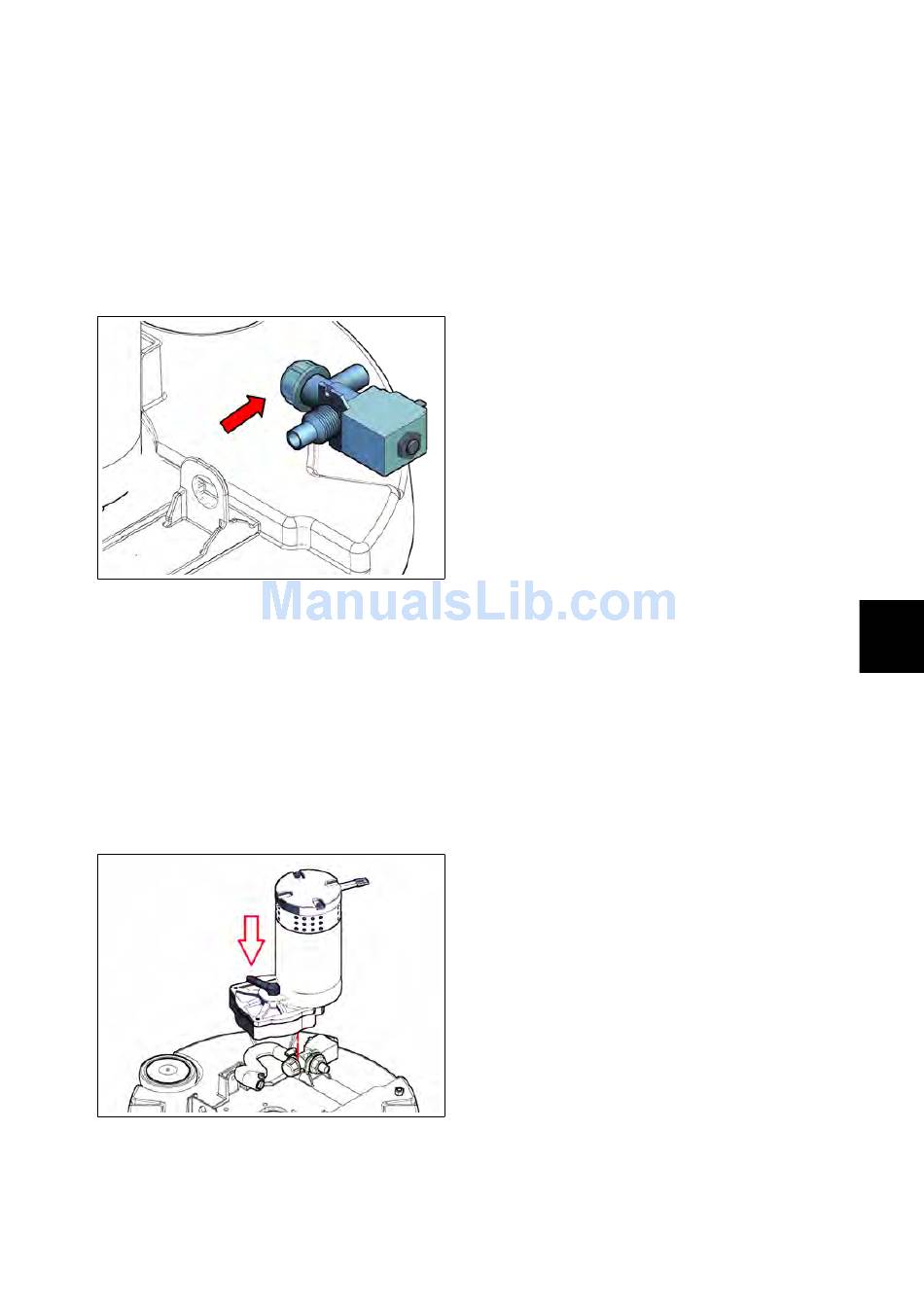

Figure 9.4: Solenoid Valve
9.3.6

Distributor

Controls:

The distributor has to be intact and has
to grant the proper solution flow without
any leakage in the gearbox.
Figure 9.5: Distributor
9-85
