Chapter 5
Electrical System
5-44
IMx scrubber dryer machine is avail-
able in three different versions: IMx B,
IMx BB and IMx BT. The IMx BB is
electromechanical without traction mo-
tor and speed regulation. The IMx B and
IMX BT are equipped with control card.
Only IMx BT is equipped with a traction
motor and a knob to regulate the speed
of the machine
5.1
Structure IMx BB

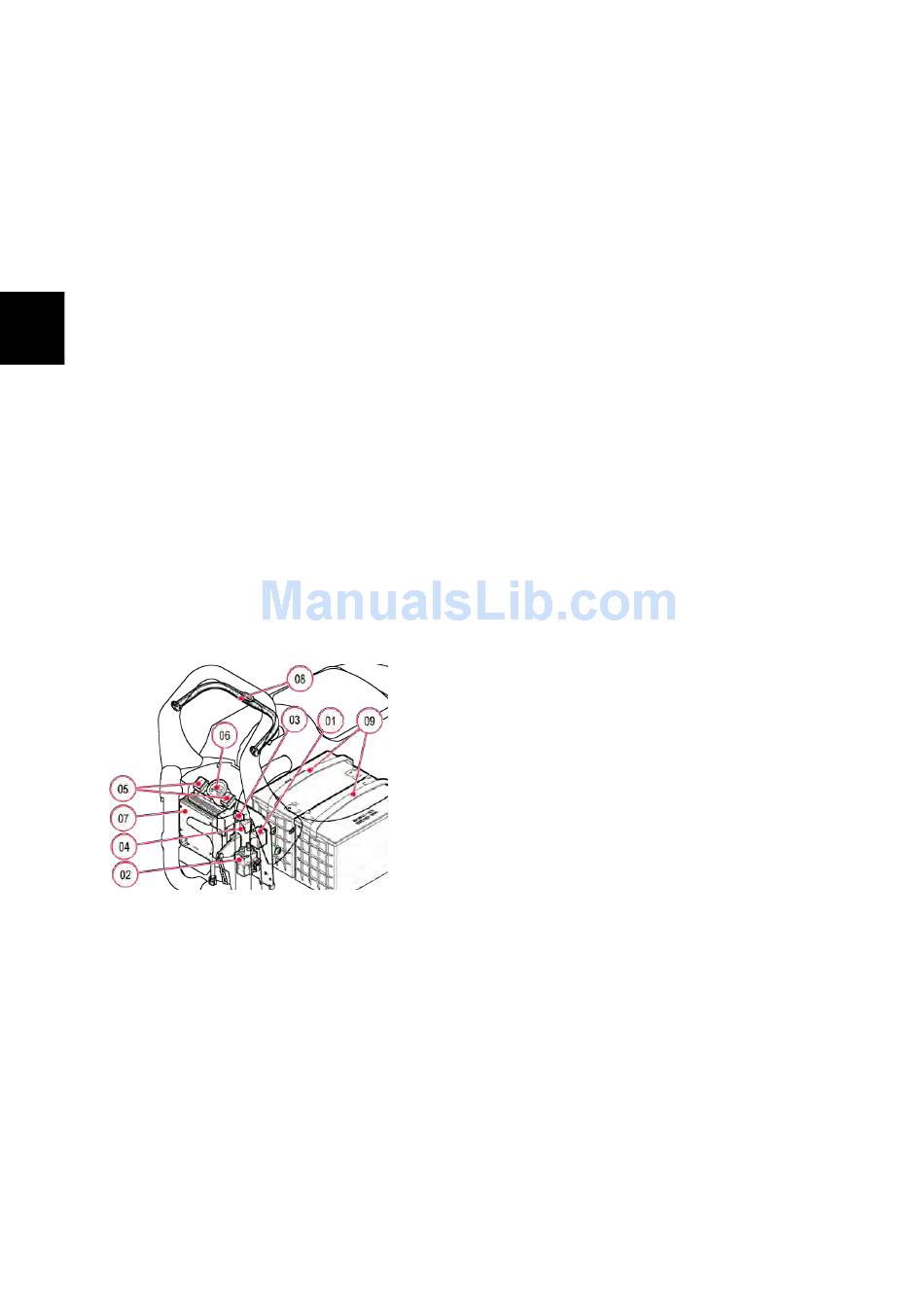

Figure 5.1: Electrical System IMx BB
1. Relay vacuum
2. Brush remote control switch
3. Fuses
4. Microswitch brush release
5. Switches
6. Hourmeter/Battery control card
7. Charger
8. Safety lever
9. Batteries
5.2
Description IMx BB
To wash and dry the floor you have to
press the buttons present on the dash
board of the machine. With the buttons
you can switch ON or OFF the brush
base, the solenoid valve and the vacuum
motor.
These signal are combined by
electromechanical logic together with the
safety lever; they act in order to operate
in the best way and in absolute safety for
the operator. Near the dash board there
is a switch to release the brush.
44
