4.3.12 Squeegee Lifting Lever
Put the machine in safe conditions.
Disassemble the Squeegee from the
Machine .
(see section 4.3.1 at page 26)
4-36 Be sure that the Squeegee Com-
mand Lever is in lower position.
Unscrew the screw that fix the chain
to the Squeegee Command Lever and
let it lie behind the Squeegee Sup-
port .
(see fig. 4.3.12-75)
Loose the screw that blocks the
Squeegee Movement Support to the
Electric System Panel .
(see fig. 4.3.12-76)
Remove the Squeegee Lifting Lever
from the Machine.
Remove the hub bushing from the
Squeegee Lifting Lever.
Proceed at reverse to refit the part.

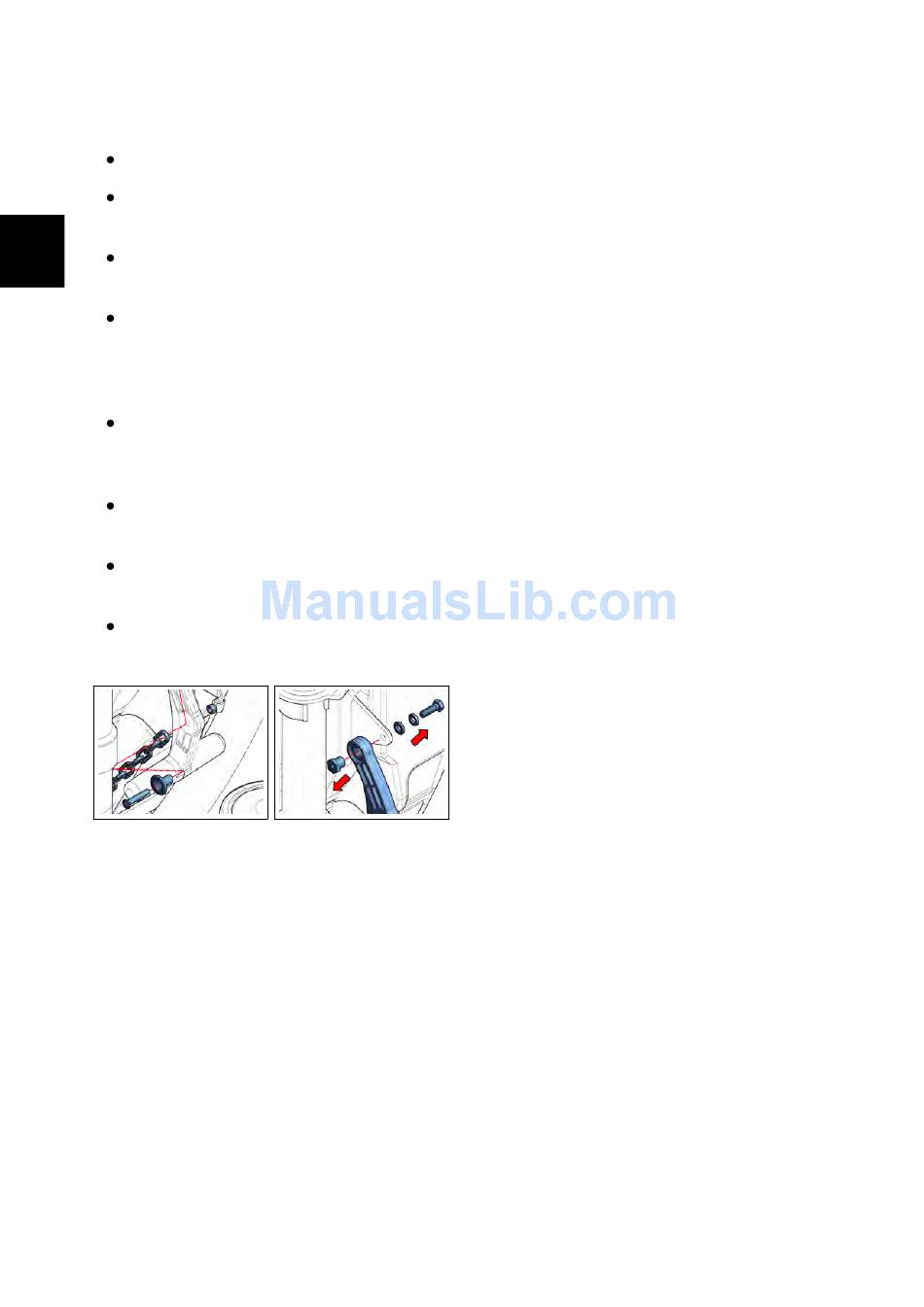

4.3.12-75 4.3.12-76
