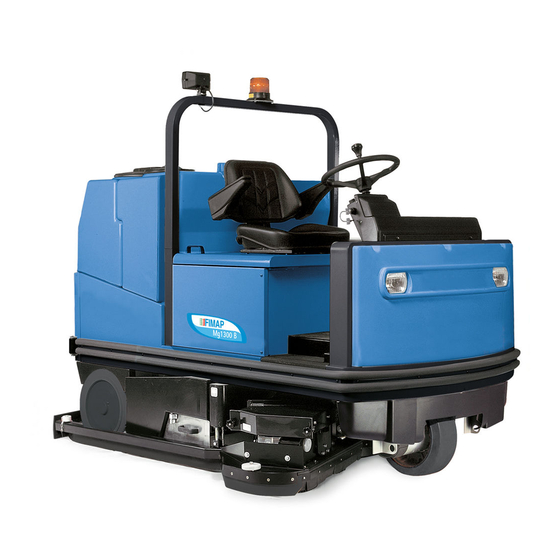

Fimap Magna 1300 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Fimap Manuals
  4. Floor Machine
  5. Magna 1300
  6. Operating instructions manual

Fimap Magna 1300 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

ATTENZIONE! NON USARE L'APPARECCHIO SENZA AVER LETTO LE ISTRUZIONI PER L'USO
ATTENTION! DO NOT USE THE MACHINE BEFORE READING USE INSTRUCTIONS
ATTENTION! NE PAS UTILISER LA MACHINE SANS LIRE LES INSTRUCTIONS POUR L'EMPLOI
ACHTUNG!
DIE MASCHINENICHT GEBRAUCHEN, OHNE VORHER DIE ANLEITUNGEN GELESEN ZU HABEN
ATENCIÓN!
LA MÁQUINA NO DEBE SER UTILIZADA SIN HABER LEÍDO LAS INSTRUCCIONES PARA EL EMPLEO
Magna 1300
CODICE 10004514 VER AA REV 00
Codice Fiscale 09224090150 - Partita IVA 02520310232 - Capitale Sociale Euro 516.500,00 int.vers. – Registro Imprese di Verona n. 09224090150 - R.E.A. n. 244619
In base all'art. 2497 si segnala che la Società è soggetta all'attività di direzione e coordinamento da parte della ditta COMAC S.p.a.
Fimap S.p.A. V
ia Invalidi del Lavoro, 1 37050 S.Maria di Zevio - Verona - ITALY
Tel. +39 045 6060411 Fax +39 045 6060417 - E-mail:fimap@fimap.com - www.fimap.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magna 1300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fimap Magna 1300

Summary of Contents for Fimap Magna 1300

  • Page 1 Invalidi del Lavoro, 1 37050 S.Maria di Zevio - Verona - ITALY Tel. +39 045 6060411 Fax +39 045 6060417 - E-mail:fimap@fimap.com - www.fimap.com Codice Fiscale 09224090150 - Partita IVA 02520310232 - Capitale Sociale Euro 516.500,00 int.vers. – Registro Imprese di Verona n. 09224090150 - R.E.A. n. 244619...

  • Page 2: Table Of Contents

    SUMMARY ON CONSIGNMENT OF THE MACHINE ..........................35 INTRODUCTORY COMMENT............................... 35 TECHNICAL DATA ................................35 SYMBOLOGY USED ON THE MACHINE..........................36 MACHINE PREPARATION ..............................39 1. HANDLING OF THE PACKED MACHINE................................. 39 2. HOW TO UNPACK THE MACHINE................................... 39 3. INSTALLATION OF THE BATTERIES INTO THE MACHINE......................... 40 4.

  • Page 3: On Consignment Of The Machine

    Our Service Department is at your disposal for all such advice and servicing as may prove necessary. TECHNICAL DATA Magna 1300 Cleaning width 1300 Base side movement Squeegee width...

  • Page 4: Symbology Used On The Machine

    SYMBOLOGY USED ON THE MACHINE Symbol denoting solenoid valve open It is used to indicate the solenoid valve switch It is used to indicate the signal lamp of the solenoid valve open Symbol denoting solution tank empty Symbol denoting recovery tank full Symbol denoting squeegee all down Symbol denoting up - down of the squeegee It is used to indicate the signal lamp of the actuator when operating...
  • Page 5 SYMBOLOGY USED ON THE MACHINE Symbol denoting up - down of the brushes base It is used to indicate the signal lamp of the brushes actuator when operating Symbol denoting suction motor It is used to indicate the suction motors switch Symbol denoting cylindrical brush It is used to indicate the switch of the cylindrical brush motor Symbol denoting brushes...
  • Page 6 SYMBOLOGY USED ON THE MACHINE Symbol denoting manipulator cylindrical brush and squeegee Making side movements with the manipulator, they correspond to vertical movements of the squeegee. Longitudinal movements of the manipulator correspond to vertical movements of the cylindrical brush base. Symbol denoting pressure carried on the brushes Symbol denoting regulation cock Symbol denoting speed selector forwards and backwards...

  • Page 7: Machine Preparation

    The packages cannot be placed on top of each other. The total weight is of 950 kg The overall dimensions are: Magna 1300 A : 1680mm B : 1450mm C : 2360mm HOW TO UNPACK THE MACHINE 1.

  • Page 8: Installation Of The Batteries Into The Machine

    MACHINE PREPARATION INSTALLATION OF THE BATTERIES INTO THE MACHINE The batteries are fitted in the appropriate compartment under the seat and must be handled by using appropriate lifting equipment suitable both for the weight and for the coupler system. They must moreover satisfy the requirements quoted in the Specification CEI 21-5.

  • Page 9: Connection Of The Battery Charger

    MACHINE PREPARATION CONNECTION OF THE BATTERY CHARGER The connector is placed in the left lower part of the operator seat. The upper part (1), which is connected to the batteries, is the one which has to be inserted to the connector (2) fixed to the cables of the battery recharger.

  • Page 10: Squeegee

    MACHINE PREPARATION SQUEEGEE The squeegee, which is packed separately from the machine, should be assembled as shown in the figure, couple the screws (1) of the squeegee into their seats on the squeegee support and fix them with a key CH17. Fit the suction hose (2) into its coupling and fix it with the appropriate clamp.

  • Page 11: Brushes Assembly

    MACHINE PREPARATION BRUSHES ASSEMBLY 1. Connect the battery connector 2. Turn the key into position ON 3. With the manipulator lower the brushes base until it almost touches the floor (do not lower completely) 4. Turn the key into position OFF and take it off from the instrument board (to carry out the operations of brushes assembly with connected current can cause damage to the hands).

  • Page 12: Assembly Cylindrical Brush

    MACHINE PREPARATION ASSEMBLY CYLINDRICAL BRUSH This operation must be carried out by a technician of the Fimap service dept. ASSEMBLY SIDE BARS The side bars are already secured in the front part, but they must be put into position in the rear part. Proceed as follows: 1.

  • Page 13: Solution Water

    MACHINE PREPARATION SOLUTION WATER Fill the solution tank with clean water at a temperature not more than 50° C and add liquid detergent in the proper concentration following the instructions of the manufacturer. Excess foam in the recovery tank could damage the suction motors, so use only the minimum amount of detergent necessary.

  • Page 14: General Rules Of Security

    If the machine does not work properly, check by conducting simple maintenance procedures. Otherwise, it is better to ask for FIMAP technical service. Use only original FIMAP brushes indicated in the paragraph “CHOICE AND USE OF BRUSHES” Where parts are required, ask for ORIGINAL spare parts to an agent and/or to an authorized dealer.

  • Page 15: Performance

    PERFORMANCE 1. Carry out the operations for the preparation of the machine 2. Sit on the driver’s seat 3. Check that the parking brake is released (1) 4. Connect the connector to the batteries (2) 5. Turn the key of the general switch (3) clockwise of a quarter turn. Immediately, the red signal lamps (4) on the instrument board begin to blink and the batteries’...
  • Page 16 PERFORMANCE 14. Push forward the brushes manipulator (1) so to lower the base. During the descent, the signal lamp of the actuator and the brushes motor come on. The brushes base will be in its working position when the yellow signal lamp (2) comes off 15.

  • Page 17: Check Motors

    “ADJUSTMENT HEIGHT CYLINDRICAL BRUSH”). For problems on other motors it is necessary to seek for Fimap technical service. PRESSURE BRUSHES It is possible to adjust the brushes pressure using the hand wheel (1) placed on the left side of the operator. To increase the pressure rotate clockwise.

  • Page 18: Traction

    PERFORMANCE TRACTION These machines are equipped with electronically commanded traction, with three speeds forwards and one backwards. To move the machine, it is necessary to turn the key and then move forwards (forward movement) or backwards (rear movement) the manipulator (1). Press the drive pedal and the machine will start to move.

  • Page 19: Brakes

    PERFORMANCE BRAKES To brake, press with the left foot the pedal of the service brake (2). In case of bad operation of this brake, or in case of necessity (interruption, danger), act upon the parking brake (1). HORN The machine is equipped with a horn switch. To operate it, press the push button as shown in the figure.

  • Page 20: On Completion Of The Work

    ON COMPLETION OF THE WORK Having finished the job and before any type of maintenance is done: 1. Close the cock 2. Raise the base of the brushes 3. Switch off the brushes motor switch 4. Switch off the solenoid valve switch 5.
  • Page 21 ON COMPLETION OF THE WORK 14. Take off the clip from the right side bar and rotate it to the outside 15. Release the pin (1) of the hopper 16. Take off the hopper (2) and clean it thoroughly (see further on under “CLEANING OF THE HOPPER”).

  • Page 22: Daily Maintenance

    DAILY MAINTENANCE CLEANING OF THE RECOVERY TANK This operation has to be carried out using gloves to protect from contact with dangerous solutions 1. Empty the tank through the flexible hose, unscrewing of some turns the knob and then taking off the plug 2.

  • Page 23: Replacement Of The Squeegee Rubber

    DAILY MAINTENANCE REPLACEMENT OF THE SQUEEGEE RUBBER If the squeegee rubber is worn and does not dry well, it is possible to change the drying edge proceeding as follows: 1. Push and rotate the fixing plates 2. Slip off the rubber blade and the rubber itself 3.

  • Page 24: Solution Tank And Filter Cleaning

    DAILY MAINTENANCE SOLUTION TANK AND FILTER CLEANING When the solution tank is empty: 1. Unscrew the filter and rinse the inside thoroughly 2. Take off the cartridge and clean it 3. Open the cock 4. Rinse the tank with a water jet 5.

  • Page 25: Weekly Maintenance

    WEEKLY MAINTENANCE ADJUSTMENT SIDE BARS Periodically proceed with the height adjustment of the side bars. This operation has to be carried out with the tunnel lowered. 1. Loosen the lock nut (1) 2. Hold steady the register (2) 3. Tighten the threaded pin (3) to lift the side bar or unscrew it to lower the 4.

  • Page 26: Cleaning Of The Suction Hose

    WEEKLY MAINTENANCE CLEANING OF THE SUCTION HOSE Whenever suction seems to be unsatisfactory, check that the suction hose is not obstructed. Eventually, clean it with a water jet introduced from the side where it is being connected to the tank. Proceed as follows: 1.

  • Page 27: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE INSUFFICIENT WATER ONTO THE BRUSHES 1. Make sure that the cock is open 2. Check that the solenoid valve switch is on 3. Make sure that there is water in the solution tank (signal lamp “RESERVE” off) 4.

  • Page 28: The Suction Motor Does Not Function

    TROUBLE SHOOTING GUIDE THE SUCTION MOTOR DOES NOT FUNCTION 1. Check that the suction motor switch is on 2. Check whether the recovery tank is full (signal lamp “FULL” on) and eventually empty it 3. Check the perfect condition of the float switch (see also “CLEANING OF THE RECOVERY TANK FILTER”...

  • Page 29: The Machine Does Not Clean Satisfactorily

    25mm. The replacement operation of the cylindrical brush has to be carried out by a technician of the Fimap service dept. The rotary brushes have to be replaced when the bristles reach around 15mm. For their replacement see under “DISASSEMBLY OF THE BRUSHES”...

  • Page 30: Choice And Use Of Brushes

    CHOICE AND USE OF BRUSHES POLYPROPYLENE BRUSH (PPL) It is used on all types of floors which are hot water resistant (not more than 60°C). The Polypropylene brush is nonhygroscopic and therefore conserves its characteristics even if working in the wet conditions. NYLON BRUSH It is used on all types of floors with excellent wear and hot water resistance (more than 60°C).

  • Page 31: Batteries

    They have to be connected in series, in order to obtain a voltage of 36V at the battery terminals. The electric connection process has to be carried out by specialised staff trained by a Fimap service center. MAINTENANCE OF THE BATTERY For the maintenance and the recharge follow strictly the instructions given by the manufacturer of the batteries.
