Chapter 9

Cleaning Solution Supply System

9.1

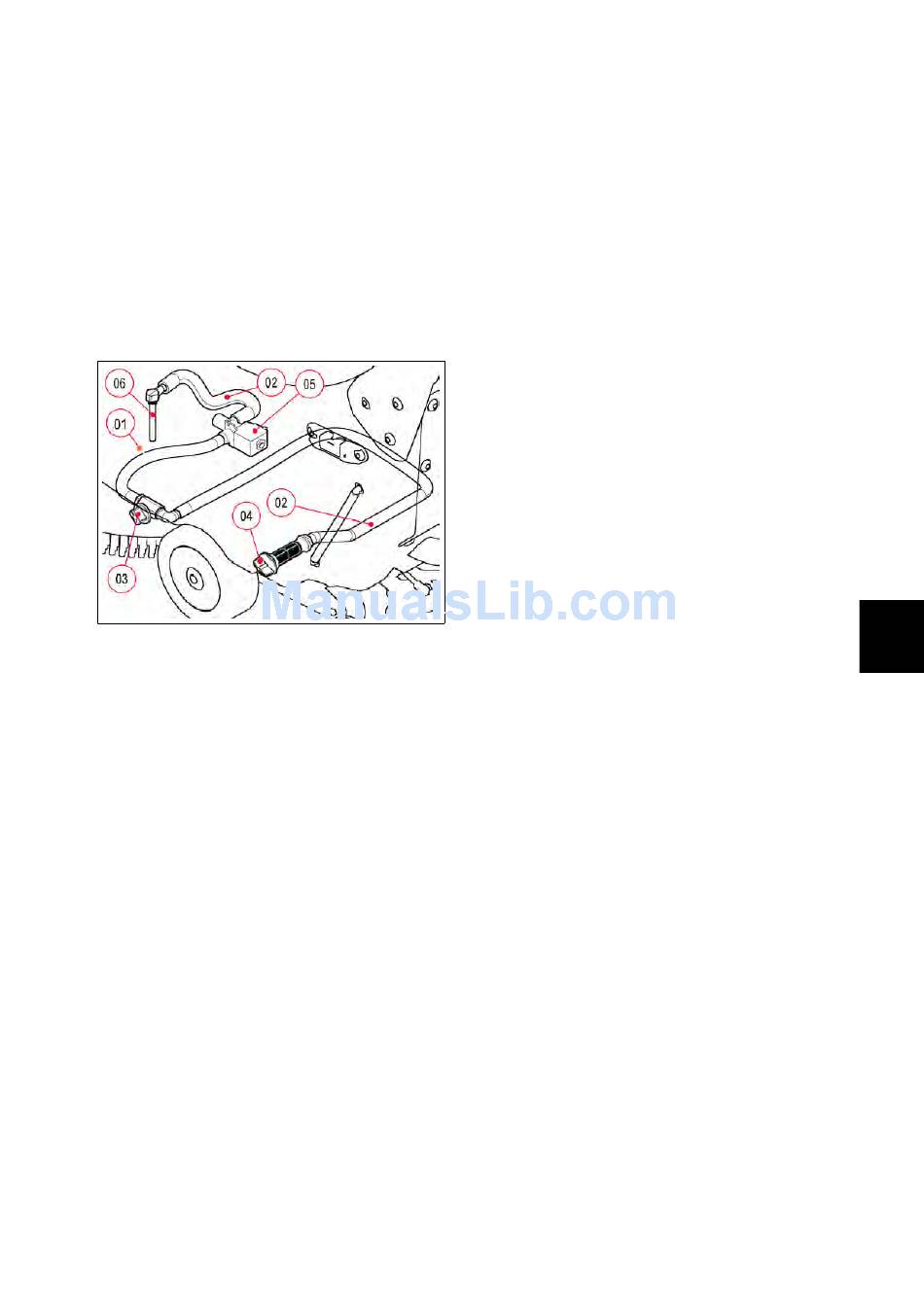

Structure

1. Solution Tank

2. Hoses

3. Water Valve
4. Solution Filter
5. Solenoid Valve
6. Distributor
9.2

Description

The Cleaning Solution Supply System is
made by a tank commonly called solu-
tion tank or clean water tank. In this
tank the clean water is mixed with the
detergent to create the cleaning solution
that the machine will use to clean. The
solution is then canalized to the filter
and the water valve. The filter is used
to stop debris that could stuck the hose
system, the water valve is used to adjust
the solution that will fall on the floor (BB
Version) or to allow or stop the liquid de-
livery (B and BT Version).
Once passed through the water valve
the solution arrive to the solenoid valve
that blocks the delivery when the brush
is not working and allow the flow while
brush works. In the B and BT ver-
sions the solenoid valve is electrically
controlled to adjust the solution flow
rate. The end of the solution path is the
distributor that canalizes the flow in the
middle of the brush.
