Solenoid Valve - Fimap IMx Workshop Manual

4.5.5

Solenoid Valve

Put the machine in safe conditions.
Remove the Brush Deck Assembly
.
(see fig. )
4-42 Unplug the hoses connected to the
Solenoid Valve .
(see fig. 4.5.5-102)
Loose the plastic nut that block the
Solenoid Valve to its support
(see fig.
.
4.5.5-103)
Loose the solenoid Valve cap and re-
move the OR gasket .
(see fig. 4.5.5-104)
Proceed at reverse to refit the part
(Position the spacer washer properly
to refit the valve).

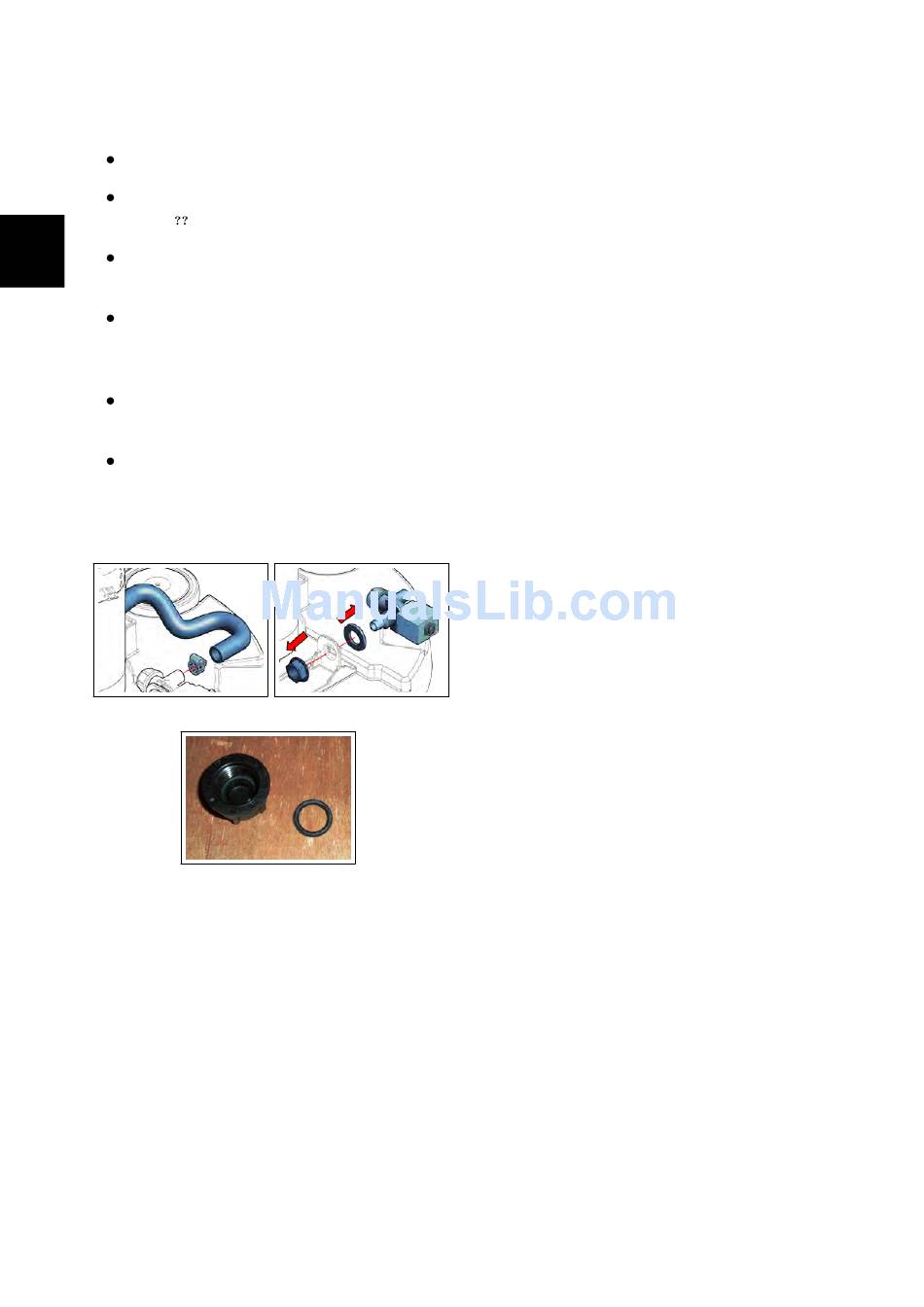

4.5.5-102 4.5.5-103
4.5.5-104
