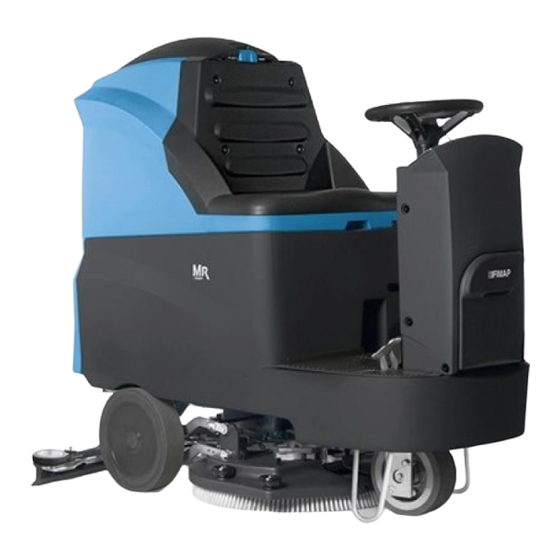

USE AND MAINTENANCE MANUAL MR60 B MR65 B - MR75 B - MR85 B MR100 B ED. 09-2019 ORIGINAL INSTRUCTIONS Doc. 10025019 Ver.
Page 2
The descriptions contained in this document are not binding. The company therefore reserves the right to make any modifications at any time to elements, details, or accessory supply, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings contained in this document is prohibited by law.
39. CLEANING THE SUCTION MOTOR FILTER ...................................25 40. CLEANING THE SQUEEGEE ......................................26 41. CLEANING THE SOLUTION TANK AND FILTER ................................26 42. DISC BRUSH DISASSEMBLY (MR60 B VERSIONS) ..............................27 43. DISC BRUSH DISASSEMBLY (MR 65-75-85-100 B VERSIONS) ...........................27 WEEKLY MAINTENANCE ............................... 28...
Page 4
44. CLEANING THE VACUUM HOSE ....................................28 EXTRAORDINARY MAINTENANCE............................29 45. REPLACING THE FRONT SQUEEGEE RUBBER ................................29 46. REPLACING THE REAR SQUEEGEE RUBBER ................................29 47. REPLACEMENT OF THE BRUSH HEAD CASING ................................29 TROUBLESHOOTING ................................30 48. INSUFFICIENT WATER ON THE BRUSHES ...................................30 49.
On consignment of the machine Serial number plate When the machine is consigned to the customer, an immediate check must be performed to ensure all the material mentioned in the shipping documents has been received, and also to check the machine has not suffered damage during transportation.
TECHNICAL DESCRIPTION MR60 B MR65 B MR75 B Nominal input power [IEC 60335-2-72; IEC 62885-9] 1,31 1,81 1,81 Working width Squeegee width Working capacity, up to 3320 3565 4105 Disc brushes No. / mm 1 / 610 2 / 340...
Page 7
TECHNICAL DESCRIPTION MR85 B MR100 B Nominal input power [IEC 60335-2-72; IEC 62885-9] 1,81 2,01 Working width 1020 Squeegee width 1105 1105 Working capacity, up to 4565 5510 Disc brushes No. / mm 2/430 2/510 Brush rpm Brush motor n/(V/W) 2/(24/500) 2/(24/600) Force exerted on brush...
SYMBOLS USED ON THE MACHINE Main switch symbol (key switch) Used on the instrument panel, to indicate the key switch for machine operation on (I) or off (O) Parking brake symbol Used on the instrument panel to indicate the red warning light showing parking brake on Symbol denoting pressure applied to the brushes Used to indicate the green warning light that shows that the brush pressure increase has been engaged Parking brake and brush pressure symbol...
Page 9
SYMBOLS USED ON THE MACHINE Indicates the maximum gradient Parking brake symbol Used on the machine to indicate the parking brake control lever Symbol denoting battery electric charging...
GENERAL SAFETY REGULATIONS Before using the machine, please read the following document carefully and follow the instructions contained herein, along with the instructions in the document supplied with the machine itself, "GENERAL SAFETY REGULATIONS" (document code 10083659).
PREPARATION OF MACHINE 1. HANDLING THE PACKED MACHINE The machine is contained in specific packaging with a pallet for the handling with fork trucks. The packages CANNOT be placed on top of each other. The total mass of the machine with packaging is 240 kg (without batteries). The packaging dimensions are as follows: A : 1610 mm 730 mm...
PREPARATION OF MACHINE 5. STEERING COLUMN COMPONENTS The steering column components are identified as follows: Squeegee body lifting lever Brush head unit lifting lever Horn button Detergent solution adjustment lever 6. FOOTBOARD FRONT-RIGHT COMPONENTS The components at the front right of the footboard are identified as follows: Accelerator pedal, forward Accelerator pedal, reverse ATTENTION: Only by simultaneously pressing the pedals is the reverse made.
PREPARATION OF MACHINE 9. MACHINE SIDE COMPONENTS The side components of the machine are identified as follows: 14) Water-detergent filler cap 15) Water filler cap 16) Water-detergent drainage cap 10. REAR COMPONENTS OF THE MACHINE The rear components of the machine are identified as follows: 17) Recovery tank discharge cap 11.
PREPARATION OF MACHINE ATTENTION: users are advised to always wear protective gloves, to avoid the risk of serious injury to hands. ATTENTION: you are advised to only lift and move the batteries with lifting and transportation means suitable for the specific weight and size. 13.
PREPARATION OF MACHINE ATTENTION: you are advised to have the electric connections made by a qualified, FIMAP trained technician. ATTENTION: users are advised to always wear protective gloves, to avoid the risk of serious injury to hands. 15. CONNECTING THE BATTERY CHARGER (VERSIONS WITHOUT BC) In order not to cause permanent damage to the batteries, it is essential to avoid their complete discharge: arrange the recharge within a few minutes of the switching on of the "discharged batteries"...
MACHINE PREPARATION ATTENTION: Danger of gas exhalation and leakage of corrosive liquids. ATTENTION: Danger of fire: keep naked flames at a safe distance. 16. CONNECTING THE BATTERY CHARGER (VERSIONS WITH BC) In order not to cause permanent damage to the batteries, it is essential to avoid their complete discharge: arrange the recharge within a few minutes of the switching on of the "discharged batteries"...
PREPARATION OF MACHINE ATTENTION: The machine is equipped with an automatic system that disconnects the power supply from the electrical system while the batteries are being recharged. ATTENTION: In order not to cause permanent damage to the batteries, it is essential to avoid their complete discharge: arrange the recharge within a few minutes of the switching on of the "discharged batteries"...
MACHINE PREPARATION 20. RECOVERY TANK Make sure the recovery tank is empty, otherwise empty it completely. Check the cap of the drainage tube (10) (on the rear of the machine) is correctly closed. 21. SOLUTION TANK The recovery tank must be completely empty each time the solution tank is filled. Remove the front inlet cap and check the solution filter is correctly fitted.
PREPARATION OF MACHINE 23. DETERGENT SOLUTION Remove the filler cap (1) and check the solution filter is correctly assembled. Check that the filter cap, under the solution tank in the front right of the machine, is properly closed. Fill it with clean water at a temperature not exceeding 50C. The amount inside the tank can be seen by means of the level pipe on the front left of the seat.
(2 to 4 mm depending on the type of rubber) under the wheels. 28. BRUSH ASSEMBLY (MR60 B VERSIONS 1. Make sure the parking brake is engaged and that the main switch is OFF 2. Lift the base by turning the right lever (1) to move the base anticlockwise.
PREPARATION OF MACHINE 30. DISC BRUSH ASSEMBLY (MR 65-75-85-100 B VERSIONS) 1. Make sure the parking brake is engaged and that the main switch is OFF 2. Lift the base by turning the right lever (1) to move the base anticlockwise. ATTENTION: During this operation, check there are no people or objects near the brush.
PREPARATION OF MACHINE 33. EMPTY SOLUTION TANK DEVICE To check the quantity of water in the solution tank there is a special level indicator tube (5) next to the driver's seat. 34. WATER MANAGEMENT KIT (OPTIONAL) If you want to increase the working capacity of the machine, you can replace the detergent solution choke bushing (optional) on the solenoid valve with the more suitable one included in the water management kit.
WORK 36. PREPARING TO WORK 1. Make sure the recovery tank is empty, otherwise empty it completely 2. Check that the main switch of the machine is set to "0" 3. Connect the connector to the batteries (1) 4. Sit on the driver’s seat 5.
AT THE END OF THE WORK At the end of the work, and before carrying out any type of maintenance, perform the following operations: 1. Close the tap (1). 2. Raise the brush head by turning the right-hand lever (2) anticlockwise. Then raise the squeegee by turning the left-hand lever (3) clockwise.
DAILY MAINTENANCE PERFORM ALL MAINTENANCE OPERATIONS IN SEQUENCE 38. CLEANING THE RECOVERY TANK 1. Disconnect the tube (1) from its seat, unscrew the drainage cap and empty the recovery tank. ATTENTION: Before performing any maintenance, remove the keys from the panel and disconnect the battery connector of the machine.
DAILY MAINTENANCE 40. CLEANING THE SQUEEGEE The careful cleaning of the whole vacuum unit ensures better drying and cleaning of the floor as well as a longer suction motor life. Proceed as follows for cleaning: 1. Slide the vacuum tube (1) from the squeegee sleeve. 2.
DAILY MAINTENANCE 42. DISC BRUSH DISASSEMBLY (MR60 B VERSIONS) 1. Lift the base by turning the right lever (1) to move the base anticlockwise. ATTENTION: Before performing any maintenance, remove the keys from the panel and disconnect the battery connector of the machine.
WEEKLY MAINTENANCE 44. CLEANING THE VACUUM HOSE Whenever suction seems to be unsatisfactory, check that the suction tube (1) is not obstructed. If necessary clean with a jet of water as follows: 1. Make sure the recovery tank is empty, otherwise empty it completely 2.
EXTRAORDINARY MAINTENANCE 45. REPLACING THE FRONT SQUEEGEE RUBBER Vacuum will be poor and the machine will not dry perfectly if the front squeegee rubber is worn. Proceed as follows to replace it: Turn the key to the “OFF/0” position and remove it from the electrical board. Remove the squeegee from the support arm by unscrewing the handwheel.
TROUBLESHOOTING 48. INSUFFICIENT WATER ON THE BRUSHES Check there is water in the solution tank (1) Check that the tap (3) is turned on Clean the solution filter located at the front of the machine Check that the choke bushing in versions with “KIT WATER MANAGEMENT” is not blocked 49.
To restore the power supply to the motor, switch off the machine and wait for the fuses to cool down (about 40 seconds). If the switch disconnects the current again, contact the FIMAP technical assistance centre. 56. THE MACHINE DOES NOT REVERSE WARNING: To avoid damage to the squeegee, the reverse movement is disabled and only works when the squeegee is lifted.
DISPOSAL Proceed with scrapping the machine in accordance with the waste disposal regulations in force in the country in which the machine is being used.
CHOOSING AND USING THE BRUSHES POLYPROPYLENE BRUSH (PPL) Used on all types of floors. Good resistance to wear and tear, and hot water (no greater than 60°C.). PPL is non-hygroscopic and therefore retains its characteristics even when working in wet conditions. NYLON BRUSH Used on all types of floors.
37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products: FLOOR SCRUBBING MACHINES models MR60 B - MR65 B - MR75 B - MR85 B - MR100 B comply with the provisions of Directives: 2006/42/EC: Machinery Directive.
