Adjustments

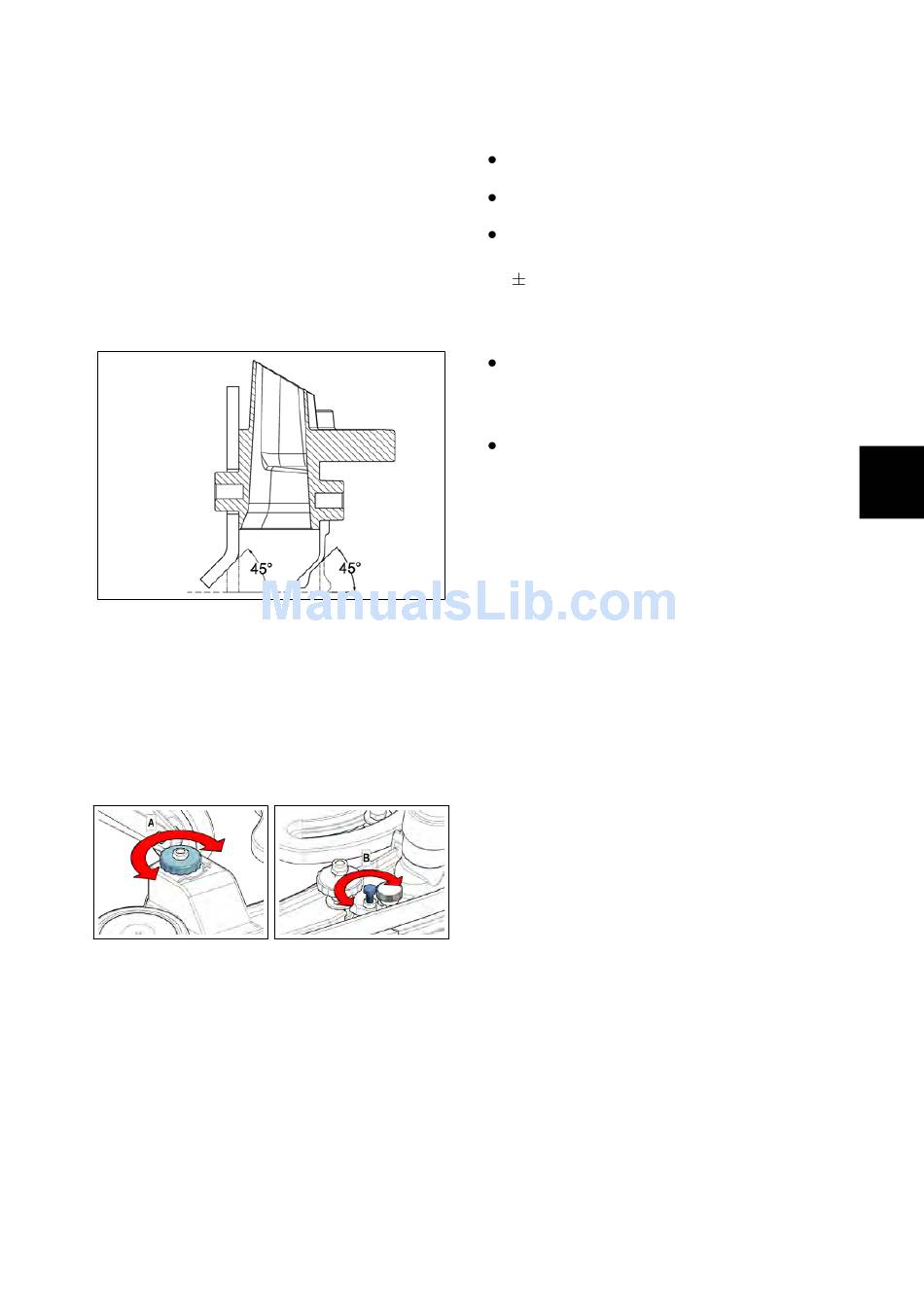

7.3.1 Squeegee Support
The Squeegee Support has to be ad-
justed with the Squeegee fitted on, low-
ered on the floor and vacuum system on.
The goal of the adjustment is to let the
squeegee blade be angled 45 degrees to
the floor for its whole length.
To obtain the proper squeegee adjust-
ment act on the wing nuts to adjust the
wheels of the squeegee support to obtain
the proper height of the squeegee from
the floor
(see fig. 7.3.1-9)
screw to let the blade be bended equally
for its whole length
7.3.1-9 Height/Pressure
and the inclination
.
(see fig. 7.3.1-10)
7.3.1-10 Inclination
Procedure
Put the machine in safe conditions.
Lower the squeegee on the floor.
Act on the wheel nuts
until the wheels are lifted 1,5 mm
( 0,1mm eventually help the adjust-
ment with a spacer of that thick-
ness).
Act on the inclination screw
in order to let the blade be
7.3.1-10)
equally angled for its whole length.
Check the obtained adjustment with
a functional test.
(see fig. 7.3.1-9)
(see fig.
