Squeegee Adjustment Wheels; Squeegee Rotation Arm - Fimap IMx Workshop Manual

Proceed at reverse to refit the part,
paying attention to take care about
the bushing positioning.
4-32
4.3.3-47
4.3.3-49
4.3.3-48
4.3.3-50
4.3.3-51

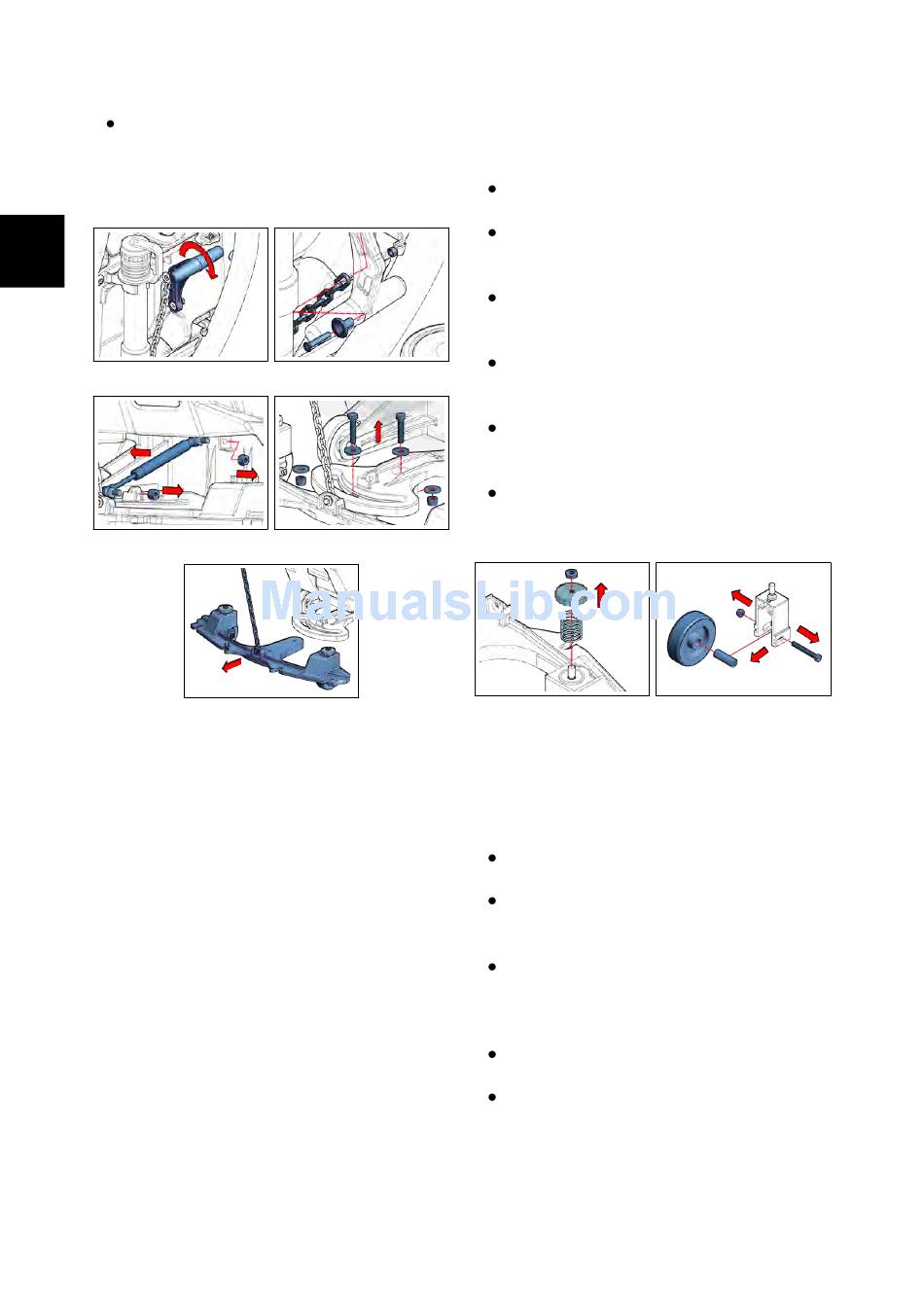

4.3.4 Squeegee
wheels
Put the machine in safe conditions.
Remove the squeegee support
.
tion 4.3.3 at page 26)
Remove the squeegee adjustment
knob and the spring
Remove the Adjustment Wheel As-
sembly.
Unscrew the fixing screw of the
wheel to the support
Proceed at reverse to refit the part.
4.3.4-52
4.3.5

Squeegee Rotation Arm

Put the machine in safe conditions.
Disassemble the Squeegee Support
(see section 4.3.3 at page 26) (see fig. 4.3.5-54)
Loose the screws that block the
Squeegee Rotation Arm to the Ma-
chine Chassis
(see fig. 4.3.5-55)
Remove the Squeegee Rotation Arm.
Proceed at reverse to refit the part.
Note: During the reassembly is impor-
tant to take care about the bushing po-
sitioning.
adjustment
(see sec-
.
(see fig. 4.3.4-52)
.
(see fig. 4.3.4-53)
4.3.4-53
.
.
