Maintenance

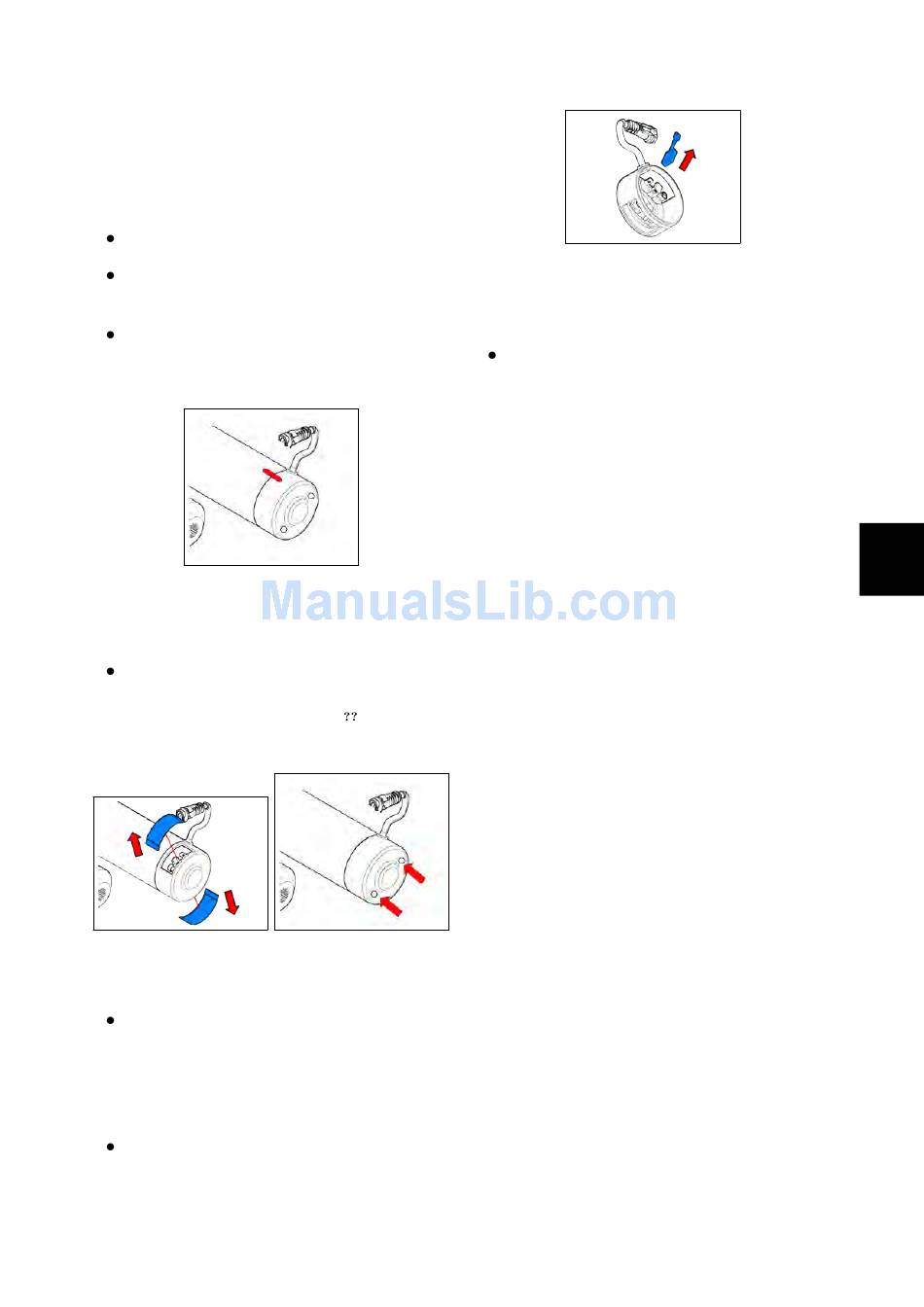

Replacement of traction motor Carbon
Brushes:
Procedure:
Secure the machine.
Remove the traction unit from the
machine
(see section
Mark the correct positioning of the
motor hood before proceeding in the
operation
8.4.2-34 Motor Hood Po-
sitioning
Remove the plastic side covers and
unscrew the screws that secure the
hood to the motor
.
35)
8.4.2-35 Side Covers
Remove the connectors that fix the
carbon brushes to the mains supply
and remove the carbon brushes from
the body of the hood (do not miss the
compensating ring)
Replace the carbon brushes being
careful not to ruin them during as-
sembly
.
4.4.3 at page 32)
,
(see fig. ) (see fig. 8.4.2-
8.4.2-36 Fixing Screws
.
(see fig. 8.4.2-37)
8.4.2-37 Carbon Brushes
removing
Proceed to the reverse operations to
reassemble everything.
8-81
