- Page 1 USE AND MAINTENANCE MANUAL FS50 B-BT FS50 H-HT ED. 10-2010 ORIGINAL INSTRUCTIONS Doc. 10024515 AB Version...
- Page 2 The descriptions contained in this document are not binding. The company therefore reserves the right to make any modifications at any time to elements, details, or accessory supply, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings contained in this document is prohibited by law.
-
Page 3: Table Of Contents
4. BATTERY MAINTENANCE AND DISPOSAL (FS50 B-BT VERSION) ...................... 8 5. BATTERY FITTING (FS50 B-BT VERSION) ............................9 6. CONNECTION OF THE ELECTRICAL POWER SUPPLY CONNECTOR (FS50 B-BT VERSION) ..............9 7. BATTERY RECHARGING(FS50 B-BT VERSION) ..........................9 8. BATTERY INDICATOR (FS50 B-BT VERSION) ..........................10 9. -
Page 4: On Consignment Of The Machine

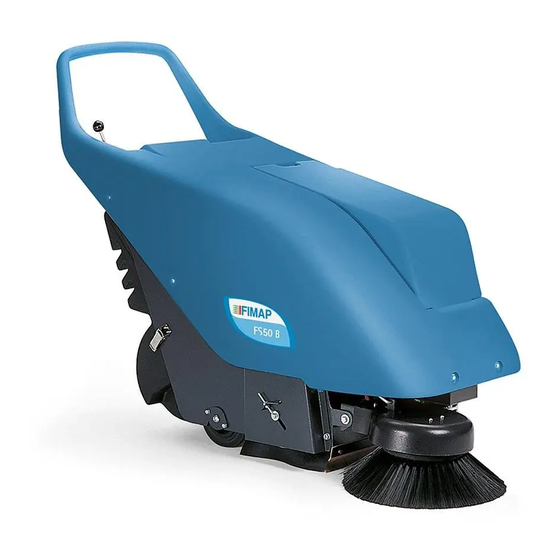

The machines feature: a central brush for debris collection, a side brush for cleaning corners, a vacuum system with filter to avoid raising dust, and FS50 B-BT a debris hopper. Do not use the machine for purposes other than those intended. - Page 5 TECHNICAL DESCRIPTION FS50 H FS50 HT FS50 B FS50 BT Working width without side brush Work capacity, up to 2275 2600 2275 2600 Maximum gradient Central brush dimensions 500x265 500x265 500x265 500x265 Debris hopper capacity Honda internal combustion engine Electric motor Electric motor Filtering surface Type of advance...
-
Page 6: Symbols Used On The Machine
SYMBOLS USED ON THE MACHINE Filter shaker Suction switch-off Side brush Wear hearing protection Pay attention to hot parts On/off (battery-operated versions only) ON / 1 Battery charge signal (battery-operated versions only) Indicates the maximum gradient... -
Page 7: General Safety Regulations
When anomalies in the functioning of the machine are found, adjustment or repair must only be performed by qualified and trained personnel. Otherwise, especially for anomalies involving electrical parts, request the intervention of the FIMAP technical assistance centre. ... -
Page 8: Machine Preparation
Each battery consists of DIN type cells connected in series that supply 12V 120Ah(C20) – 100Ah(C5) voltage to the clamps 4. BATTERY MAINTENANCE AND DISPOSAL (FS50 B-BT VERSION) For maintenance and recharging, comply with the instructions provided by the battery manufacturer. -
Page 9: Battery Fitting (Fs50 B-Bt Version)
ATTENTION: You are advised to only lift and move the batteries with lifting and transportation means suitable for the specific weight and size 6. CONNECTION OF THE ELECTRICAL POWER SUPPLY CONNECTOR (FS50 B-BT VERSION) Beneath the recovery tank there is the battery connector (2), in which the electrical system connector (1) must be inserted. -
Page 10: Battery Indicator (Fs50 B-Bt Version)
8. BATTERY INDICATOR (FS50 B-BT VERSION) On the instrument panel of the machine there is a monitor (E) indicating the battery charge status. If the green light is on, the battery level is full. If the red light is on, the batteries are flat. -
Page 11: Instrument Panel Components(Fs50 H-Ht Version)
MACHINE PREPARATION 11. INSTRUMENT PANEL COMPONENTS(FS50 H-HT VERSION) The instrument panel components are identified as follows: 1. Suction tube closure (a): determines the closure of the fan's suction duct through the movement of a hatch, which on contact with the stop activates the electric filter shaker. 2. -
Page 12: Work
WORK 1. PREPARING TO WORK (FS50 B-BT VERSION) 1. Check that the main switch of the machine is set to "0" 2. Open the hood of the machine 3. Connect the battery connector (2) to the electric system connector (1) 4. -
Page 13: Side Brush
WORK For suction efficiency, clean the filter approx. every 10 min. Proceed as follows: close the suction (lever a); activate the manual filter shaker repeatedly (lever b); for the version with electric filter shaker, pull the lever (a) for a few seconds at the end of run ... -
Page 14: At The End Of The Work
2. Position the machine's main switch to “0” (for FS50 B-BT versions) and disconnect the machine connector 3. Turn the engine's main switch to "OFF" (for versions FS50 H-HT), see user manual for the Honda GX100 engine supplied with the machine 4. -
Page 15: Daily Maintenance
DAILY MAINTENANCE PERFORM ALL MAINTENANCE OPERATIONS IN SEQUENCE 1. FILTER CLEANING (VERSION WITH FIXING TAB) Proceed as follows to clean the suction filter: 1. switch off the machine 2. Remove the debris hopper 3. Lift the filter shaker (a) and lock it in the raised position with the special pin supplied with the machine. -
Page 16: Filter Cleaning (Version With Fixing Bracket And Electric Filter Shaker)
DAILY MAINTENANCE 3. FILTER CLEANING (VERSION WITH FIXING BRACKET AND ELECTRIC FILTER SHAKER) Proceed as follows to clean the suction filter: 1. switch off the machine 2. Remove the debris hopper 3. Disconnect the red connector of the filter shaker motor 4. -
Page 17: Weekly Maintenance
WEEKLY MAINTENANCE 1. SIDE BRUSH ADJUSTMENT The brush height adjustment is made by means of screw (a) inside the support bracket (b) of the brush. The brush must be compressed against the ground for about 2 cm. 2. CENTRAL BRUSH ADJUSTMENT The central brush should operate flattened to the ground by 7/8 mm. -
Page 18: Troubleshooting
FIMAP service centre. 2. The debris hopper is full: empty it. 3. The brush does not turn because the belt is broken: have it replaced by FIMAP assistance centre. 2. THE MACHINE RAISES DUST WHILE CLEANING 1. The flaps that ensure efficient suction are worn: replace them. -
Page 19: Demolition Of The Machine
DEMOLITION OF THE MACHINE To dispose of the machine, take it to a demolition centre or an authorised collection centre. Before scrapping the machine, it is necessary to remove and separate the following materials and then send them to the appropriate collection centres, in accordance with the currently effective environmental hygiene regulations: ... -
Page 20: Choosing The Brushes
Type of bristles Bristle Brush Brush Notes length 411679 411683 PPL + STEEL 0.7 + 0.5 Central brush 411682 TAMPICO FS50 B-BT 414295 PPL + COPPER 0.6 + // FS50 H-HT 411690 Side brush 411691 PPL + STEEL 0.6 + //... -
Page 21: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY The undersigned company: FIMAP S.p.A. Via Invalidi del Lavoro no.1 37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products SWEEPING MACHINES complies with the requirements of the following Directives: 2006/42/EC: Machinery Directive ... - Page 22 NOTE...
- Page 23 NOTE...
- Page 24 FIMAP spa Via Invalidi del Lavoro, 1 - 37059 S.Maria di Zevio (Verona) Italy Tel. +39 045 6060411 r.a. - Fax +39 045 6060417 - E-mail:fimap@fimap.com - www.fimap.com...
