4.2 Mechanical
System
4.2.1

Tools needed

Pincer for hose clamps
4-28
Pincer for Seeger
Wrench n. 13
Allen key n. 4
Socket screw driver n. 7
4.2.2

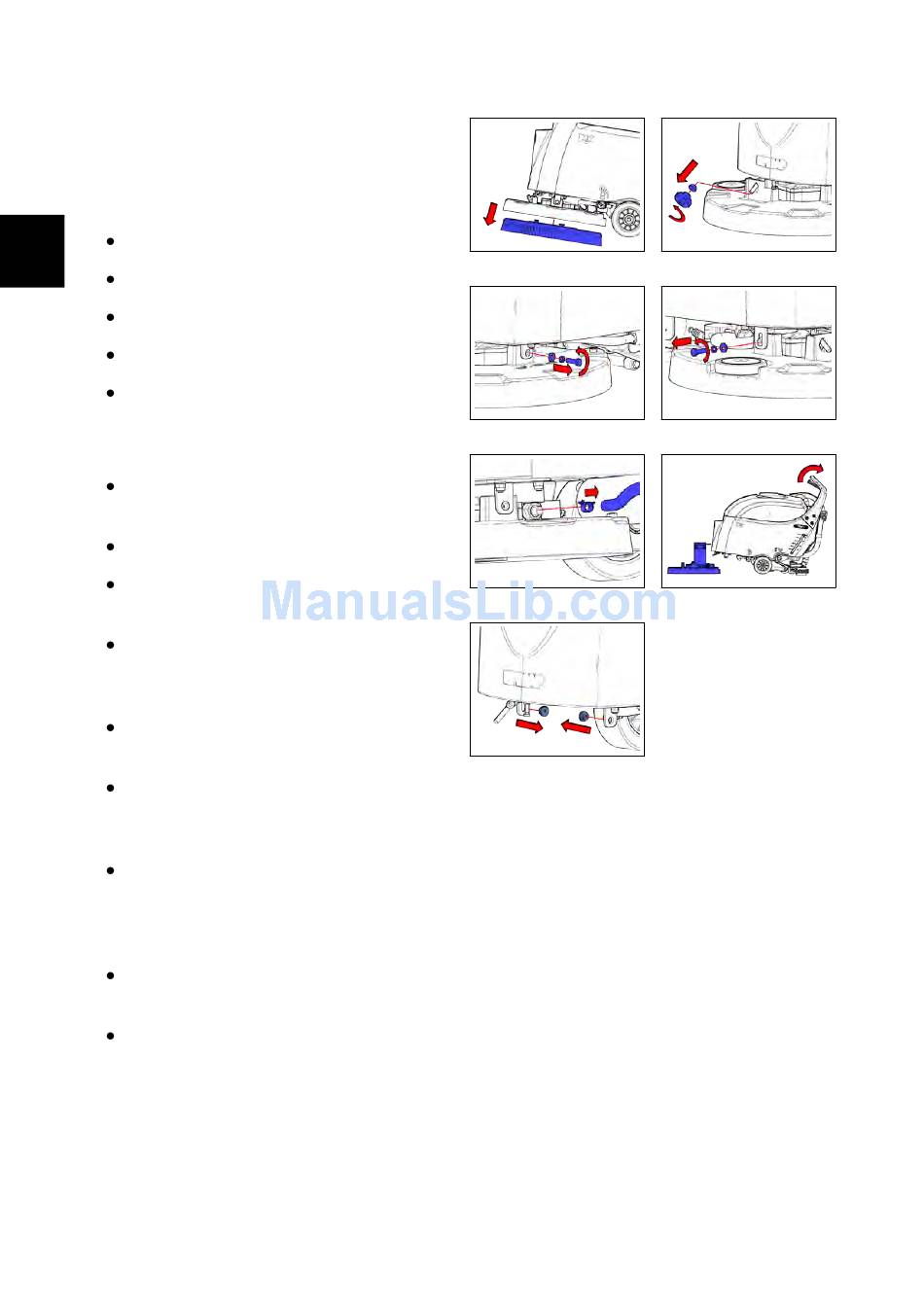

Brush Deck Assembly

Release the brush from the Brush
Deck.
Put the machine in safe conditions.
Remove the Knob for the Adjustment
of the Machine Direction
Unplug the Motor Electrical Connec-
tor and the Solenoid Valve Connec-
tor.
Unplug the Solution Hose
.
33)
Remove the screws that block the
Brush Deck to the Machine Frame
(see fig. 4.2.2-31) (see fig. 4.2.2-32)
Tilt the machine till the parking
position and remove the Complete
Brush Deck with a rototranslatory
movement
Remove the Brush Deck Bushings
(see fig. 4.2.2-35)
Proceed at reverse to refit the part.
Friction
(see fig. 4.2.2-29)
(see fig. 4.2.2-30)
.
.
(see fig. 4.2.2-34)
.
4.2.2-29
4.2.2-31
4.2.2-33
(see fig. 4.2.2-
4.2.2-35
4.2.2-30
4.2.2-32
4.2.2-34
