Summary of Contents for Fimap FM4017

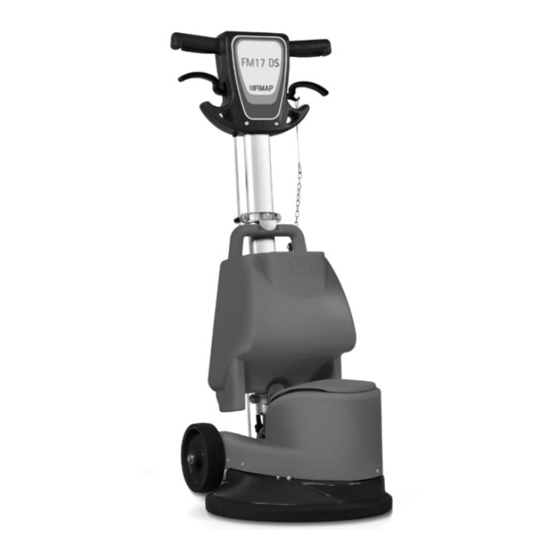

- Page 1 USE AND MAINTENANCE MANUAL FM4017 FM17 DS ED. 10-2010 ORIGINAL INSTRUCTIONS Doc. 10026346 AA Version...
- Page 2 The descriptions contained in this document are not binding. The company therefore reserves the right to make any modifications at any time to elements, details, or accessory supply, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings contained in this document is prohibited by law.
-
Page 3: Table Of Contents
17. THERMAL CUT-OUT....................................16 18. NOT ENOUGH DETERGENT SOLUTION ON THE BRUSH (OPTIONAL)......................16 19. THE MACHINE VIBRATES OR OSCILLATES............................... 16 DISPOSAL .....................................17 CHOOSING AND USING THE BRUSHES............................18 ELECTRICAL SYSTEM DIAGRAM FM4017 .............................19 ELECTRICAL SYSTEM DIAGRAM FM17 DS............................20 EC DECLARATION OF COMPLIANCE ............................21... -
Page 4: On Consignment Of The Machine
Introductory comment environments. The machine is only suitable for use in closed - or at least FM4017 – FM17 DS machines are built for the professional cleaning of covered - locations. hard and vinyl floors for indoor surfaces, to be carried out by following The machine is not suitable for use in the rain, or under water jets. -
Page 5: Symbols Used On The Machine
SYMBOLS USED ON THE MACHINE Indicates the earth connection point of the electric system of the machine Voltage symbol Warning high voltage 230 Volt Indicates the symbol representing the brush rotation speed selector, slow or fast rotation (RG1843 DS). Indicates the maximum gradient... -
Page 6: General Safety Regulations
• When your FIMAP machine has reached the end of its long working life, dispose of the materials it contains (especially oils and electronic components) in an appropriate manner, while taking into account that the machine itself was constructed by using 100% recyclable materials. -
Page 7: Machine Preparation
CANNOT be placed on top of each other. The total weight of the machine without the package is 42kg for versions FM4017 and 47kg for version FM17 DS. The weights refer to standard models, that is without solution tank. -
Page 8: Column Components
MACHINE PREPARATION 4. Man present push-button 6. COLUMN COMPONENTS The handlebar column components are identified as follows: 1. Cable wrap bracket (5) 2. Cable wrap bracket (6) - solution tank support bracket (optional) 7. MOTOR BASE COMPONENTS The motor base components are identified as follows: Base motor control switch (7) (only for DS version) 8. -
Page 9: Solution Tank (Optional)
MACHINE PREPARATION 9. SOLUTION TANK (OPTIONAL) To insert the solution tank onto the handlebars, proceed as follows: 1. Secure the handlebars in a position of about 45° to the ground 2. By loosening the closing knob (1), position the top brackets above half of the column (if these are not already positioned) 3. -
Page 10: Assembling The Brush - Pad Holder
MACHINE PREPARATION 11. ASSEMBLING THE BRUSH – PAD HOLDER To insert the brush: 1. Plug the power supply cable into the mains socket 2. Press the brush rotation speed selector push-button in slow position 3. Place the brush in front of the base body 4. -
Page 11: Work
WORK 12. PREPARING TO WORK Make sure the power supply cable is not damaged Plug the power supply cable of the machine into the mains socket Bring the handlebar into work position by acting on the release lever Select the speed of rotation of the brush best suited to the job that you want to do 13. - Page 12 WORK 4. Drive the machine with the rotating@ brush from left to right or in reverse 5. Immediately afterwards, drive the machine in a similar way but in reverse, so that about one quarter of the working width overlaps the previous one 6.
-
Page 13: At The End Of The Work
AT THE END OF THE WORK At the end of the work, and before carrying out any type of maintenance, perform the following operations: Disconnect the plug from the mains socket Wrap it into the rear brackets Operate the handlebar adjustment lever (1) and set the column at rest Move the machine indoors, in an area where it cannot cause any damage to people or surrounding property, but where it can also be protected against the accidental fall of objects. -
Page 14: Daily Maintenance
DAILY MAINTENANCE PERFORM ALL MAINTENANCE OPERATIONS IN SEQUENCE 15. DISASSEMBLING THE BRUSHES-PAD HOLDER 1. Make sure the power supply cable is unplugged from the mains socket 2. Check that the handlebars are in the rest position 3. Tilt the machine until bringing the handlebars down to the ground, by putting a foot into the rear of the base body WARNING: This operation must be carried out using gloves to protect against contact with dangerous solutions. -
Page 15: Weekly Maintenance
WEEKLY MAINTENANCE 16. CLEANING THE SOLUTION TANK 1. Check that the solution tank is empty, otherwise empty it by keeping the tap control lever operating 2. Remove the water distribution pipe (1) from the brush distribution pipe in the base 3. -
Page 16: Troubleshooting
TROUBLESHOOTING 17. THERMAL CUT-OUT The machine is equipped with the following electrical protection systems, thermal cut-out (1), located off the handlebars, to protect the motor. In the event of malfunctioning, check a thermal cut-out has not intervened. If the motor overheats, its thermal cut-out intervenes to block the electricity supply. Wait a few minutes until it has cooled down, then press the specific trip unit button to reactivate the power supply and motor operation. -
Page 17: Disposal
DISPOSAL To dispose of the machine, take it to a demolition centre or an authorised collection centre. Before scrapping the machine, it is necessary to remove and separate the following materials and then send them to the appropriate collection centres, in accordance with the currently effective environmental hygiene regulations: •... -
Page 18: Choosing And Using The Brushes
TABLE FOR CHOOSING THE BRUSHES Machine No. of brushes Code Type of bristles ∅ Bristles ∅ Brush Length Notes 405653 BRUSH FM17 DS 405539 PAD HOLDER FM4017 405539 PAD HOLDER... -
Page 19: Electrical System Diagram Fm4017
ELECTRICAL SYSTEM DIAGRAM FM4017 COMPONENT NAMES CABLE NAMES ABBR CABLE Cut-out 10A Cable 3x1.5x15 metres + shuko plug -1- Black Operating switch 16A Cable 3x1.5x1680 -2- Blue Noise filter Brown cable 1.5x150 -3- Brown Operating condenser 40μF 2 white cables 1.5x250 -4- Start condenser 88/106μF... -
Page 20: Electrical System Diagram Fm17 Ds
ELECTRICAL SYSTEM DIAGRAM FM17 DS COMPONENT NAMES CABLE NAMES ABBR CABLE Cut-out 8A Cable 3x1.5x15 metres + shuko plug -1- Black Operating switch 16A Cable 3x1.5x1600 -2- Blue Noise filter Brown cable 1.5x150 -3- Brown Start condenser 145/174μF 2 white cables 1.5x250 -4- Operating condenser 40μF 2 black cables 1.5x250 -5- White... -
Page 21: Ec Declaration Of Compliance
37059 Santa Maria di Zevio (VR) - ITALY Santa Maria di Zevio, 21/10/2010 FIMAP S.p.A. Legal representative Giancarlo Ruffo FIMAP spa Via Invalidi del Lavoro, 1 - 37050 S.Maria di Zevio (Verona) Italy Tel. +39 045 6060411 r.a. - Fax +39 045 6060417 - E-mail:fimap@fimap.com - www.fimap.com...
