Loading Media

This section describes the steps for loading media in the plotter. Note that the media can be
loaded either before or after turning on the plotter.
Be sure to move the pen carriage slowly. Moving the pen carriage quickly may
CAUTION:
damage the plotter.
NOTE: If necessary, slowly move the pen carriage out of the way while the power is off. After
the first initialization, use the arrow keys to move the pen carriage.

Sheet Media

To avoid damaging the cutting mat, make sure to set the media type to SHEET
CAUTION:
when using sheet media. Whenever possible, use sheet media of rectangular
shape.

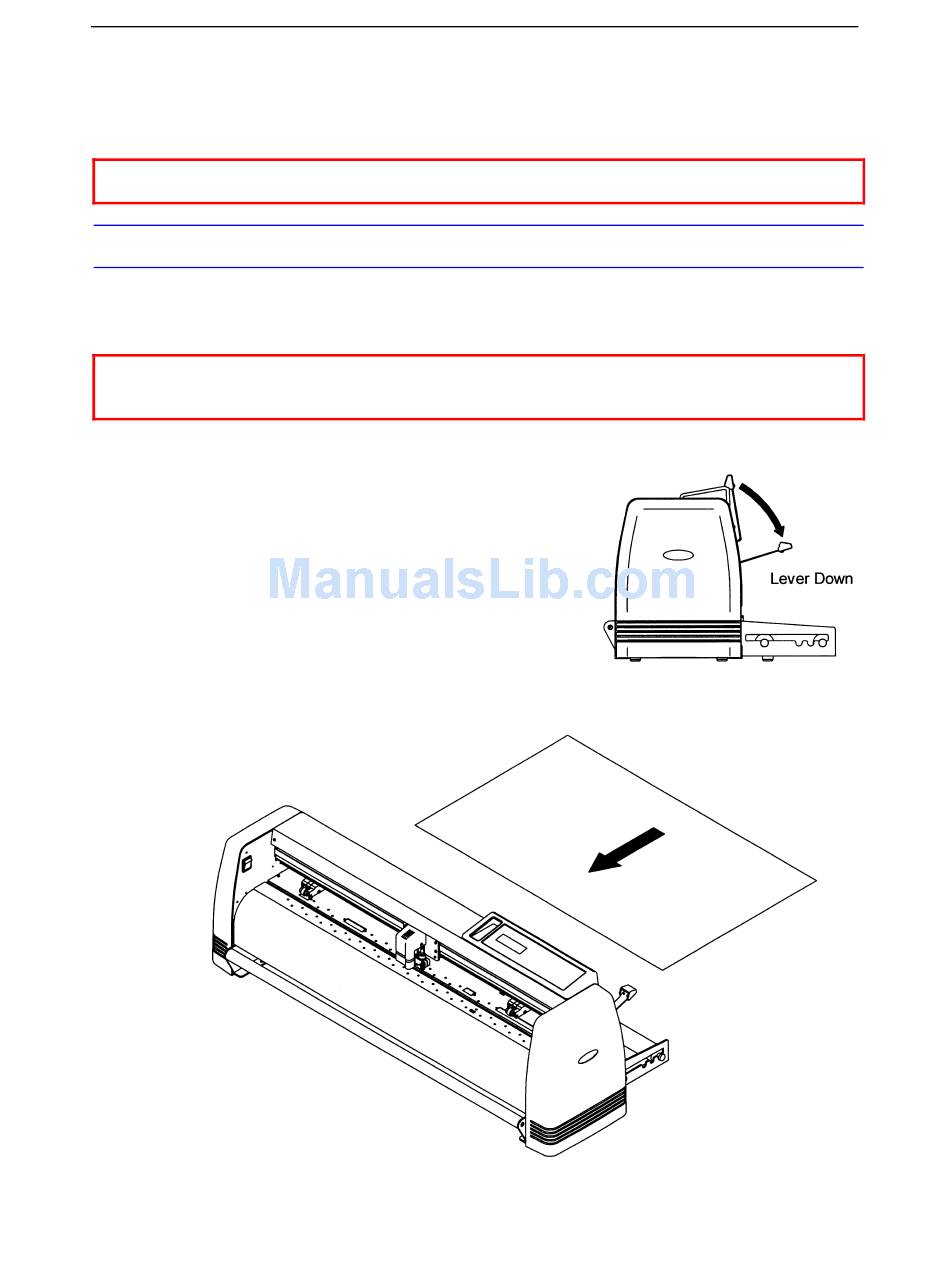

1. Load the Media
a) Lower the media set lever to raise the pinch rollers.
b) Load the media in the plotter. Use the yellow markings to locate the grit rollers. Place
the media so that its edges align with the grit rollers.
Preparing to Cut ♦ C3 - 7
