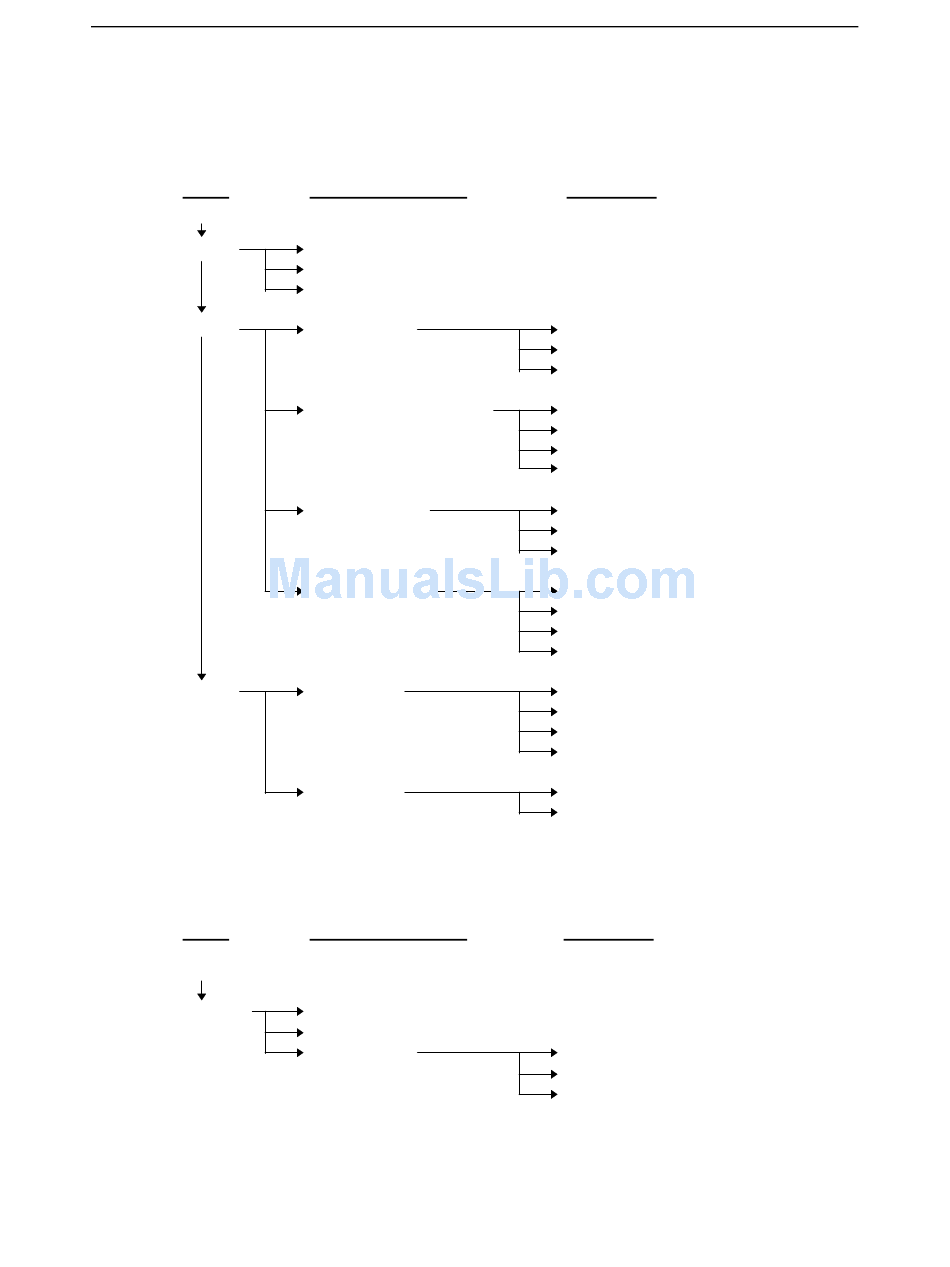

Selecting a Function Menu

When the plotter is in MENU mode (the MENU lamp is lit), each of the functions listed below in
the "Function Selection" column can be accessed by pressing the NEXT key until the desired
menu appears and then pressing the select key indicated by a box.
Menu
NEXT
NEXT
NEXT
NEXT

Initial Menu

When the paper set lever is lowered, the initial menu appears on the LCD.
Menu
INITIAL
MENU
F4 Key
Function Selection
PEN UP/DOWN
BUFFER CLEAR
FEED
INTERFACE
AREA PARAMETERS
FUNCTION 1
FUNCTION 2
OPTION 1
OPTION 2
Function Selection
AUTO PRE FEED
INITIAL FEED SPEED
INTERFACE
Preparing to Cut ♦ C3 - 4
Submenus
STEP SIZE (GP-GL only)
RS-232C
COMMAND
ORIGIN (GP-GL only)
AREA
EXPAND
PAGE LENGTH
ROTATE
MIRROR
SCALE
DATA SORTING
AXIS ALIGNMENT
AUTO PRE FEED
TANGENT EMULATION
PEN UP SPEED
OFFSET ANGLE
OFFSET FORCE
STEP PASS
DISTANCE ADJUST

TEST

Submenus
→
→
STEP SIZE
RS-232C
COMMAND
