Chapter 2 Cutters and Holders
This chapter describes the different cutters and their uses.

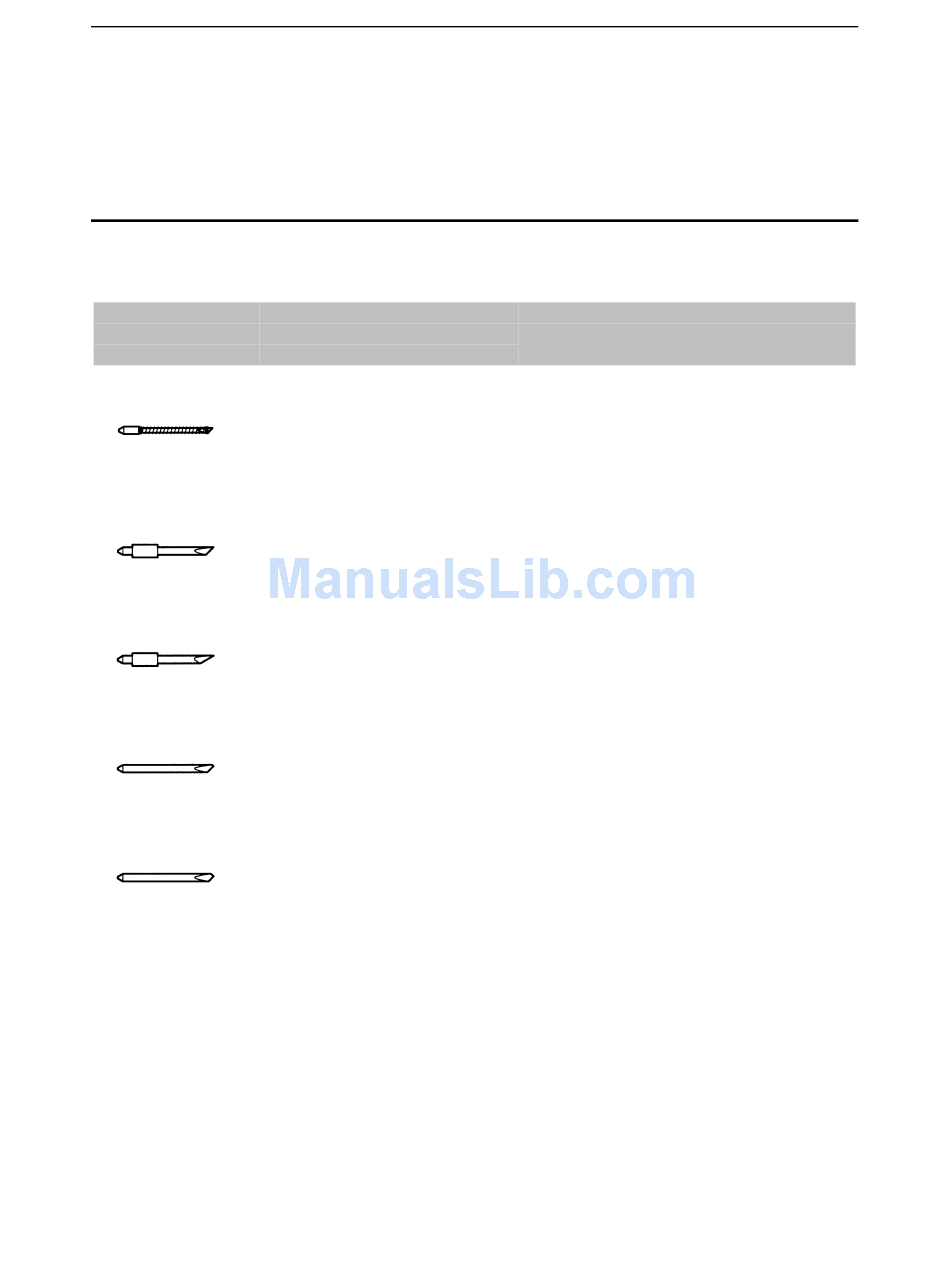

Blade part no.
and type
offset value
CB09UA
(supersteel)
CB15U
(supersteel)
CB15U-K30
(supersteel)
CB15-10C
(ceramic)
CB15-05S
(sapphire)
Diameter Plunger part
and blade no.
φ 0.9 mm PHP32-CB09N
or
0.45
PHP32-CB09
φ 1.5 mm
PHP32-CB15N
or
0.75
PHP32-CB15
φ 1.5 mm PHP32-CB15N
or
0.75
PHP32-CB15
φ 1.5 mm
PHP31-CB15
0.50
φ 1.5 mm
PHP31-CB15
0.25
Cutters and Holders ♦ C2 - 1
Applications and features
Standard blade for cutting color
adhesive media. Suitable for cutting
media up to 0.25 mm thick.
Maximum cutting distance of
approximately 4000 m.
For cutting media which is too thick for
the CB09UA blade to handle.
Suitable for cutting media from 0.25 mm
to 0.5 mm thick.
For cutting sandblast rubber. The
sharply angled point provides a longer
cutting edge. Suitable for cutting
material from 0.05 mm to 1.5 mm thick.
This is the hardest blade, but may chip
or shatter if dropped or subjected to
impact. Suitable for cutting material up
to 0.05 mm thick.
For cutting masking media.
Suitable for cutting material up to 0.05
mm thick.
