Inserting the Pounce Tool

Follow the procedure below to attach a pounce tool to the pen carriage:
1. Make sure the pen holder screw is loose.
2. While holding the pen holder upward, push the pouncing
tool all the way into the holder until its rim contacts the pen
stopper. The flat side of the tool must face the pen
carriage.
3. When the pouncing tool as been properly mounted,
tighten the screw.
Options ♦ C9 - 2

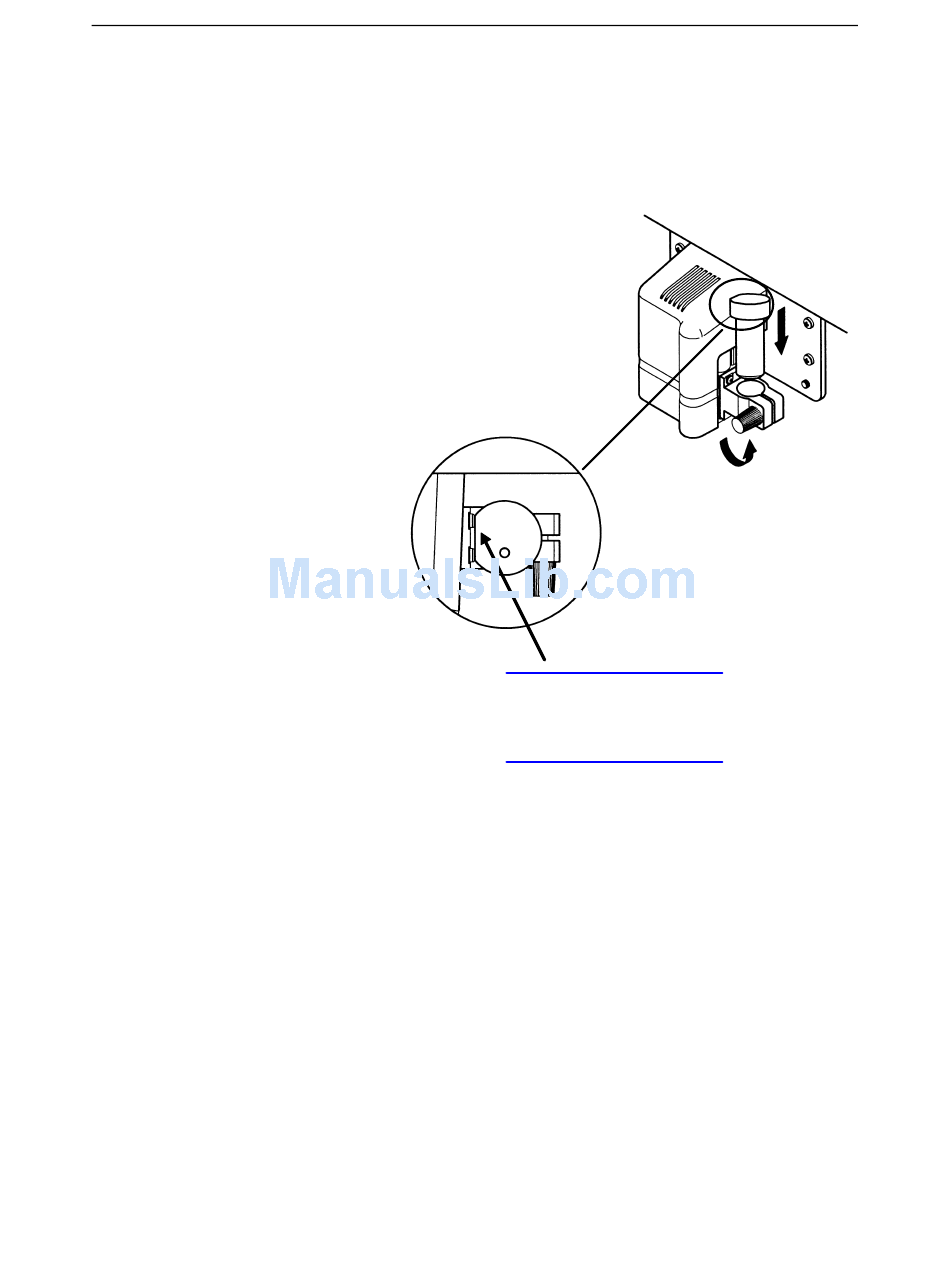

NOTE: Align flat side of
pounce tool as
shown
