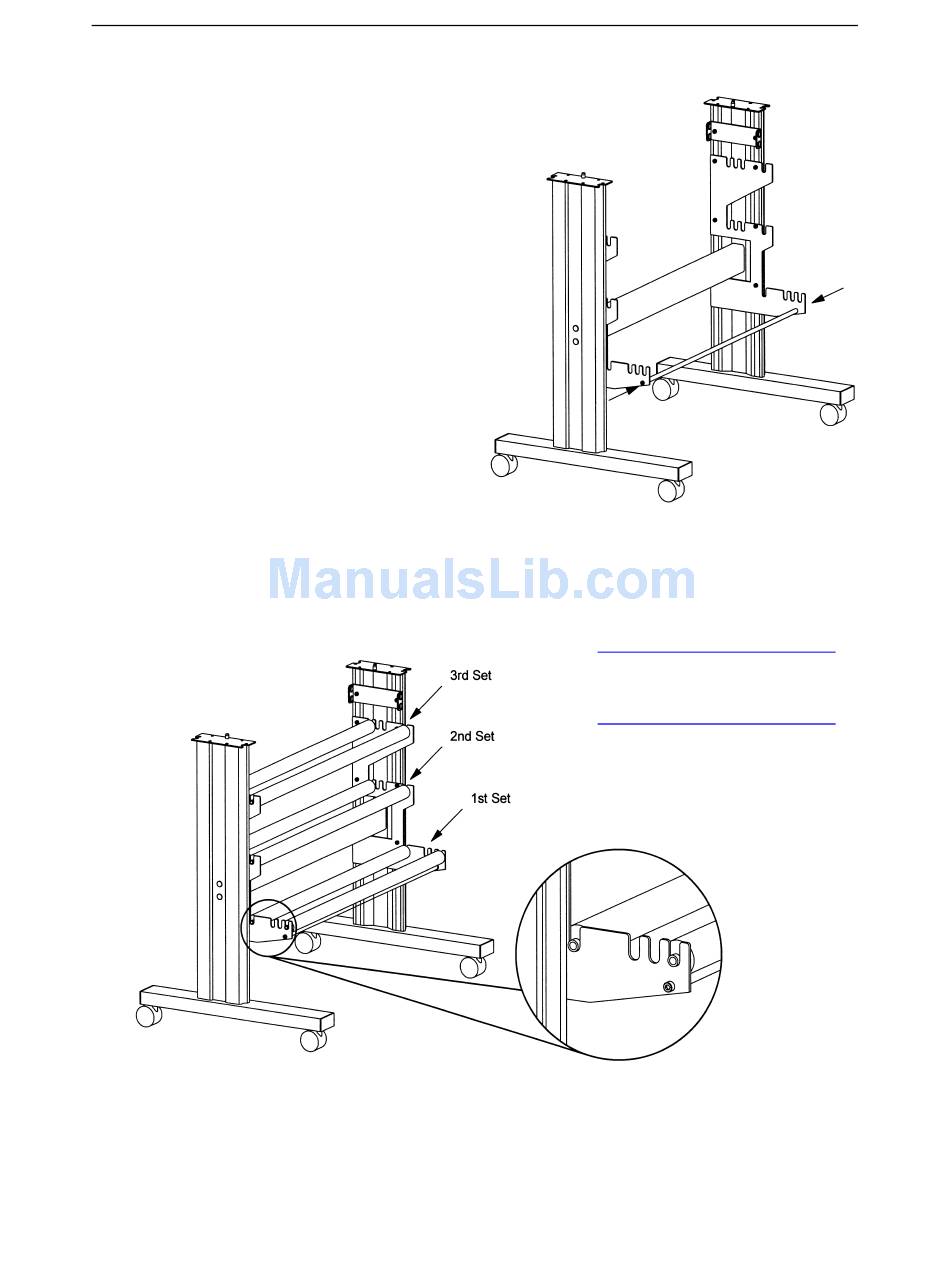

3. Attach the Stiffener Rod between the tow
Plates with two M6 x 12mm Socket Cap
Screws.
4. Insert the lower two conveyor rollers.
5. Insert the middle two conveyor rollers.
6. Insert the top two conveyor rollers.
Options ♦ C9 - 14
NOTE: Make sure the
conveyor rollers are
straight.
Make sure the conveyor roller is
seated all the way into the notch.
