Replacing Ceramic & Sapphire Blades in the PHP31-CB15
1. Turn the blade length adjustment knob
counterclockwise.
2. Remove the holder (B).
3. Remove the blade from the holder (A).
4. Point the tip of holder (A) downward.
5. Insert new blade.
6. Make sure blade is inserted straight. Gently tap
the plunger to correct angled blades.
7. Point the tip of holder (A) downward.
8. Attach the holder cap.
9. Turn the blade length adjustment knob
clockwise until the blade tip is visible.
If the blade does not rotate smoothly or the blade falls off after attaching the cutter pen
TIP:

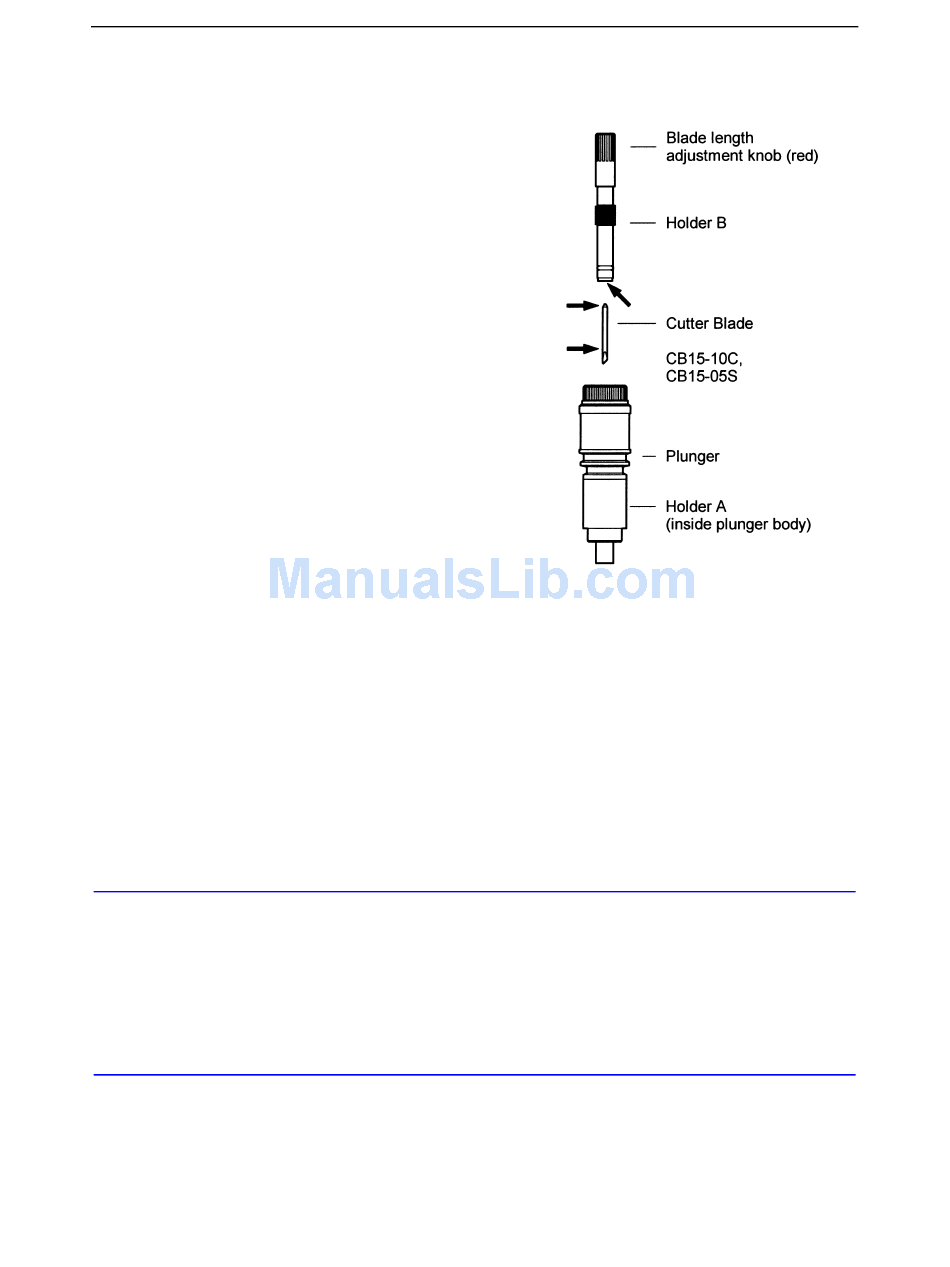

to the pen carriage, the inside of the holder is insufficiently lubricated. Apply grease
provided to the three (3) points indicated by arrows in the figure above.
The blades can also be replaced from the front of the plunger.
TIP:
1. Turn the blade adjustment knob fully clockwise.
2. Remove the blade from the front of the plunger.
3. Replace the blade.
4. Turn the blade adjustment knob counterclockwise.
NOTE: To view video to replacing blade.
For PC:
Open the Manual CD.
Double click on the Blade.avi file to start viewing the video or run Media Player,
then open Blade.avi file.
For Macintosh:
Open the Manual CD.
Double click on the Blade.mov file to start viewing the video.
Cutters and Holders ♦ C2 - 5
