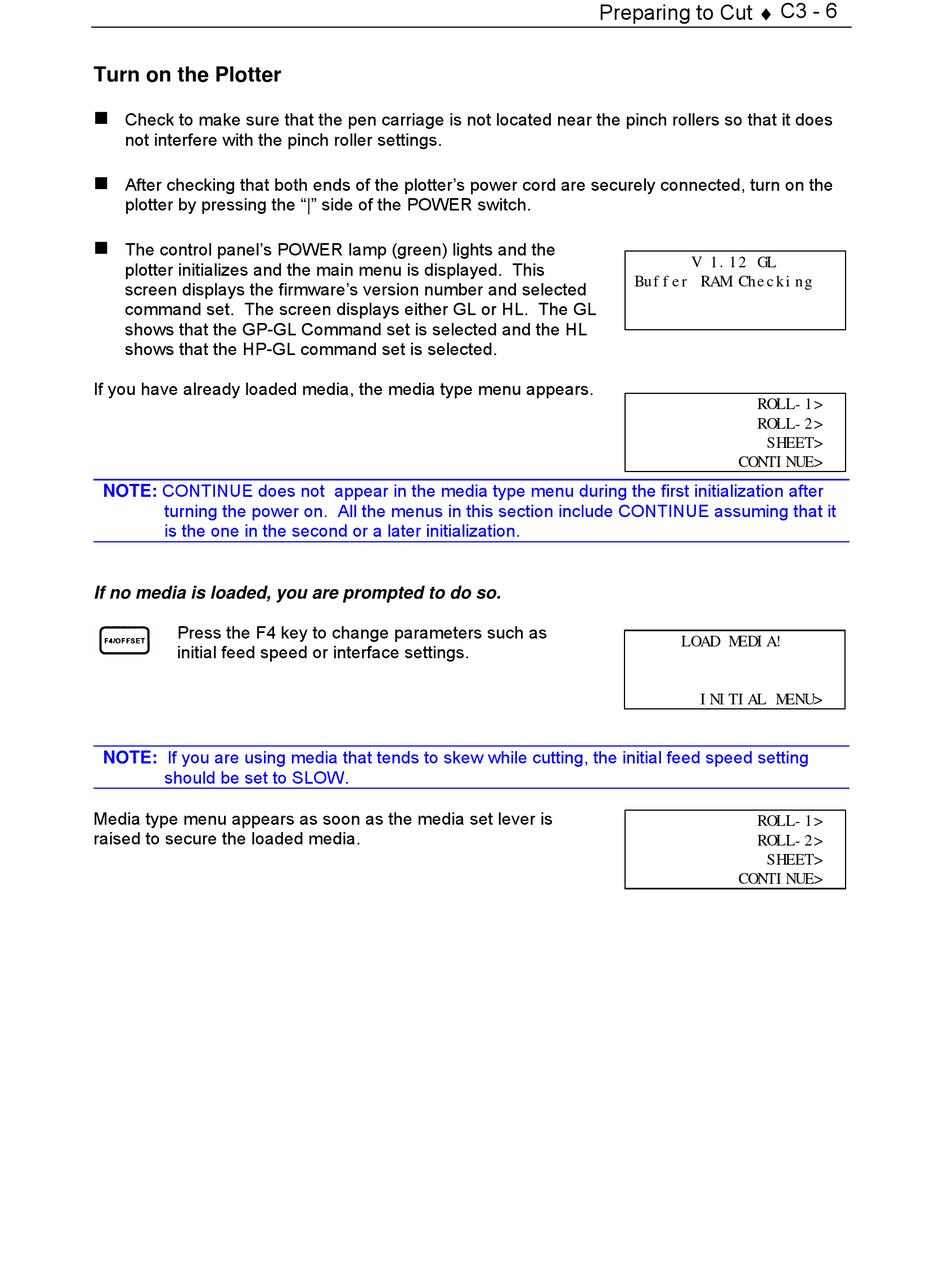

Turn on the Plotter

n
Check to make sure that the pen carriage is not located near the pinch rollers so that it does
not interfere with the pinch roller settings.
n
After checking that both ends of the plotter's power cord are securely connected, turn on the
plotter by pressing the "|" side of the POWER switch.
n
The control panel's POWER lamp (green) lights and the
plotter initializes and the main menu is displayed. This
screen displays the firmware's version number and selected
command set. The screen displays either GL or HL. The GL
shows that the GP-GL Command set is selected and the HL
shows that the HP-GL command set is selected.
If you have already loaded media, the media type menu appears.
NOTE: CONTINUE does not appear in the media type menu during the first initialization after
turning the power on. All the menus in this section include CONTINUE assuming that it
is the one in the second or a later initialization.
If no media is loaded, you are prompted to do so.
Press the F4 key to change parameters such as
initial feed speed or interface settings.
NOTE: If you are using media that tends to skew while cutting, the initial feed speed setting
should be set to SLOW.
Media type menu appears as soon as the media set lever is
raised to secure the loaded media.
Preparing to Cut ♦ C3 - 6
V 1.12 GL
Buffer RAM Checking
ROLL-1>
ROLL-2>
SHEET>
CONTINUE>
LOAD MEDIA!
INITIAL MENU>
ROLL-1>
ROLL-2>
SHEET>
CONTINUE>
