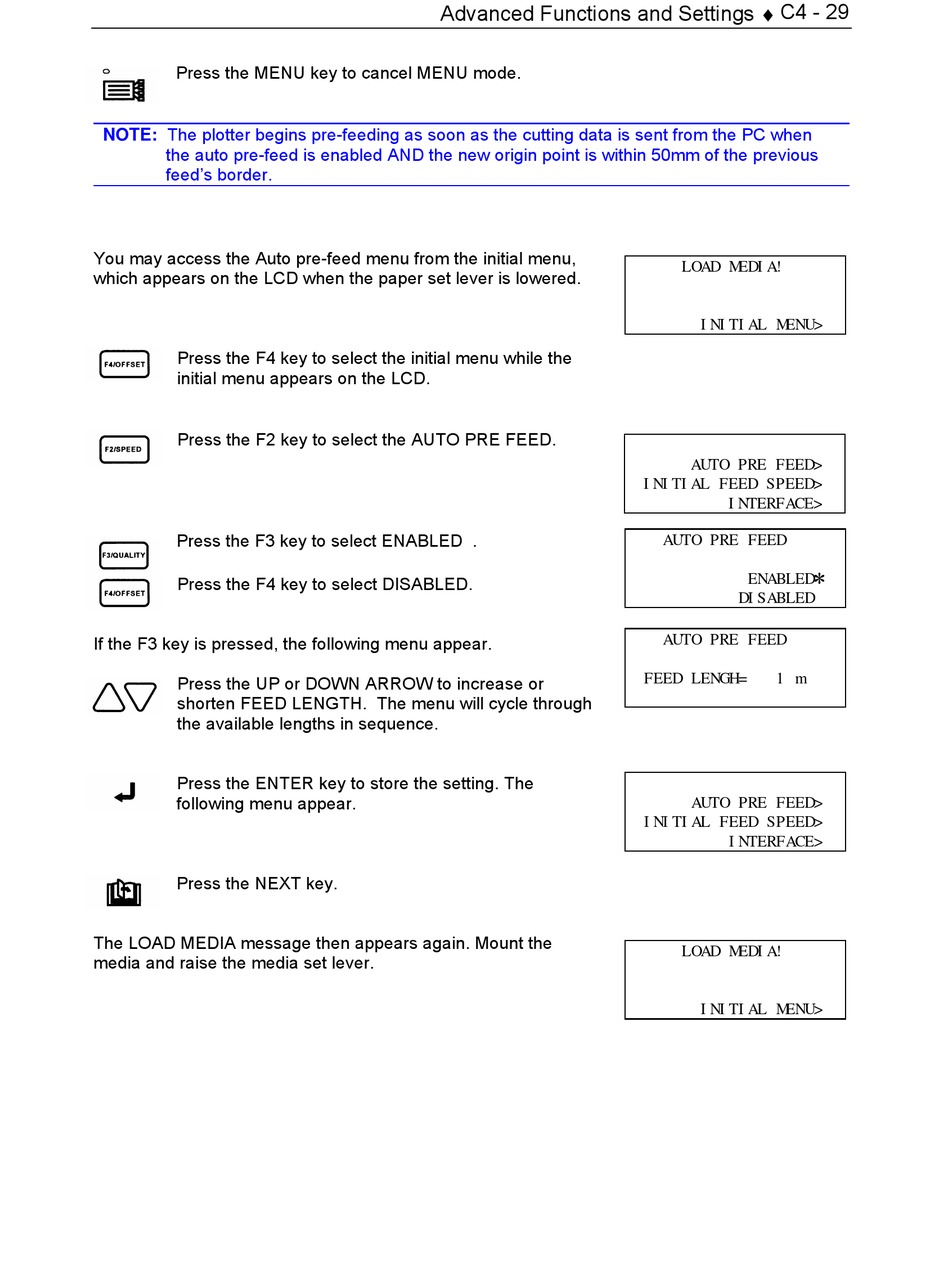

Press the MENU key to cancel MENU mode.
NOTE: The plotter begins pre-feeding as soon as the cutting data is sent from the PC when
the auto pre-feed is enabled AND the new origin point is within 50mm of the previous
feed's border.
You may access the Auto pre-feed menu from the initial menu,
which appears on the LCD when the paper set lever is lowered.
Press the F4 key to select the initial menu while the
initial menu appears on the LCD.
Press the F2 key to select the AUTO PRE FEED.
Press the F3 key to select ENABLED .
Press the F4 key to select DISABLED.
If the F3 key is pressed, the following menu appear.
Press the UP or DOWN ARROW to increase or
shorten FEED LENGTH. The menu will cycle through
the available lengths in sequence.
Press the ENTER key to store the setting. The
following menu appear.
Press the NEXT key.
The LOAD MEDIA message then appears again. Mount the
media and raise the media set lever.
Advanced Functions and Settings ♦ C4 - 29
LOAD MEDIA!
INITIAL MENU>
AUTO PRE FEED>
INITIAL FEED SPEED>
INTERFACE>
AUTO PRE FEED
ENABLED\ \
DISABLED
AUTO PRE FEED
FEED LENGH=
1 m
AUTO PRE FEED>
INITIAL FEED SPEED>
INTERFACE>
LOAD MEDIA!
INITIAL MENU>
