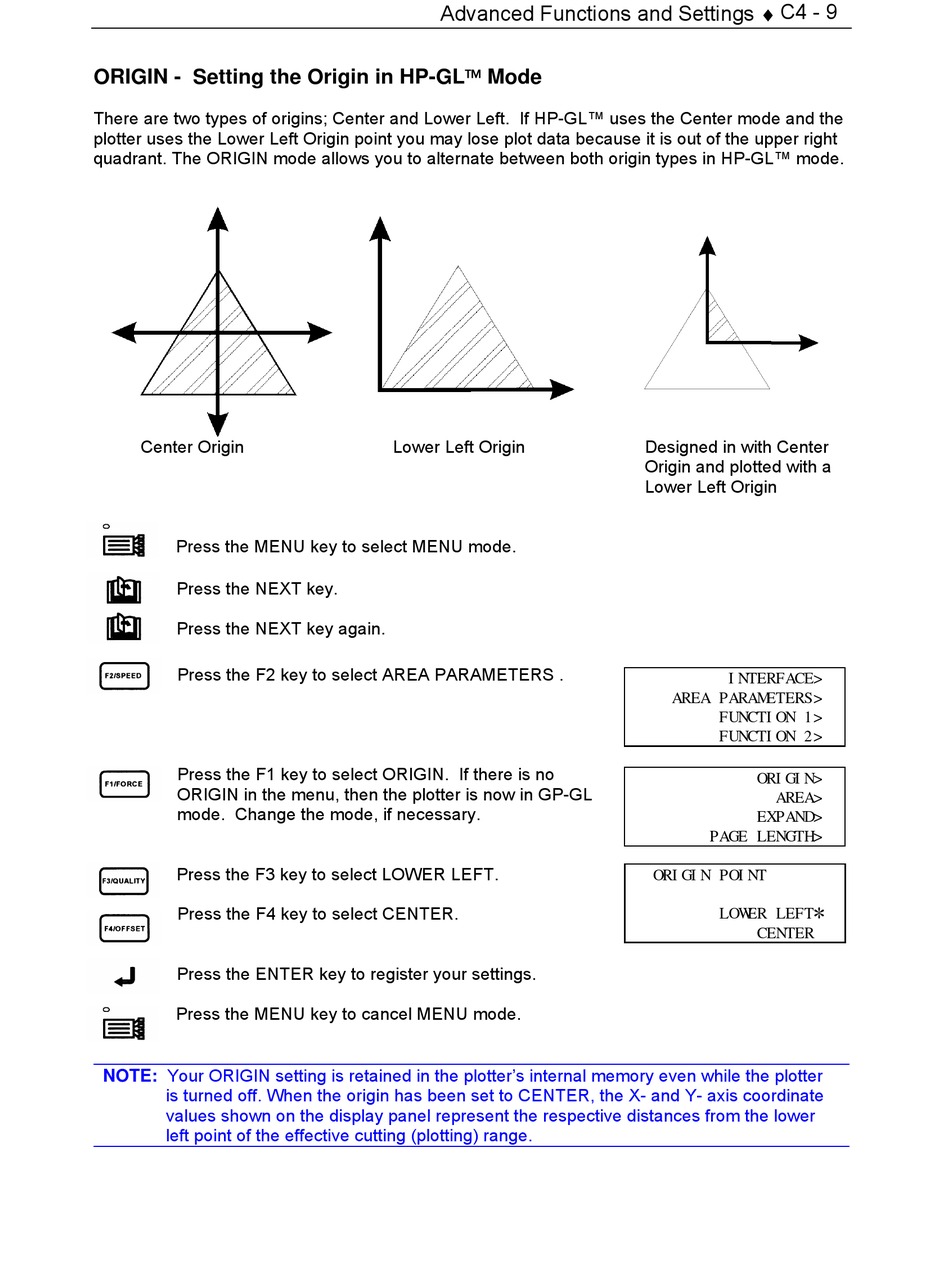

ORIGIN - Setting the Origin in HP-GL™ ™ Mode
There are two types of origins; Center and Lower Left. If HP-GL™ uses the Center mode and the
plotter uses the Lower Left Origin point you may lose plot data because it is out of the upper right
quadrant. The ORIGIN mode allows you to alternate between both origin types in HP-GL™ mode.
Center Origin
Press the MENU key to select MENU mode.
Press the NEXT key.
Press the NEXT key again.
Press the F2 key to select AREA PARAMETERS .
Press the F1 key to select ORIGIN. If there is no
ORIGIN in the menu, then the plotter is now in GP-GL
mode. Change the mode, if necessary.
Press the F3 key to select LOWER LEFT.
Press the F4 key to select CENTER.
Press the ENTER key to register your settings.
Press the MENU key to cancel MENU mode.
NOTE: Your ORIGIN setting is retained in the plotter's internal memory even while the plotter
is turned off. When the origin has been set to CENTER, the X- and Y- axis coordinate
values shown on the display panel represent the respective distances from the lower
left point of the effective cutting (plotting) range.
Advanced Functions and Settings ♦ C4 - 9
Lower Left Origin Designed in with Center
Origin and plotted with a
Lower Left Origin
INTERFACE>
AREA PARAMETERS>
FUNCTION 1>
FUNCTION 2>
ORIGIN>
AREA>
EXPAND>
PAGE LENGTH>
ORIGIN POINT
LOWER LEFT\
CENTER
